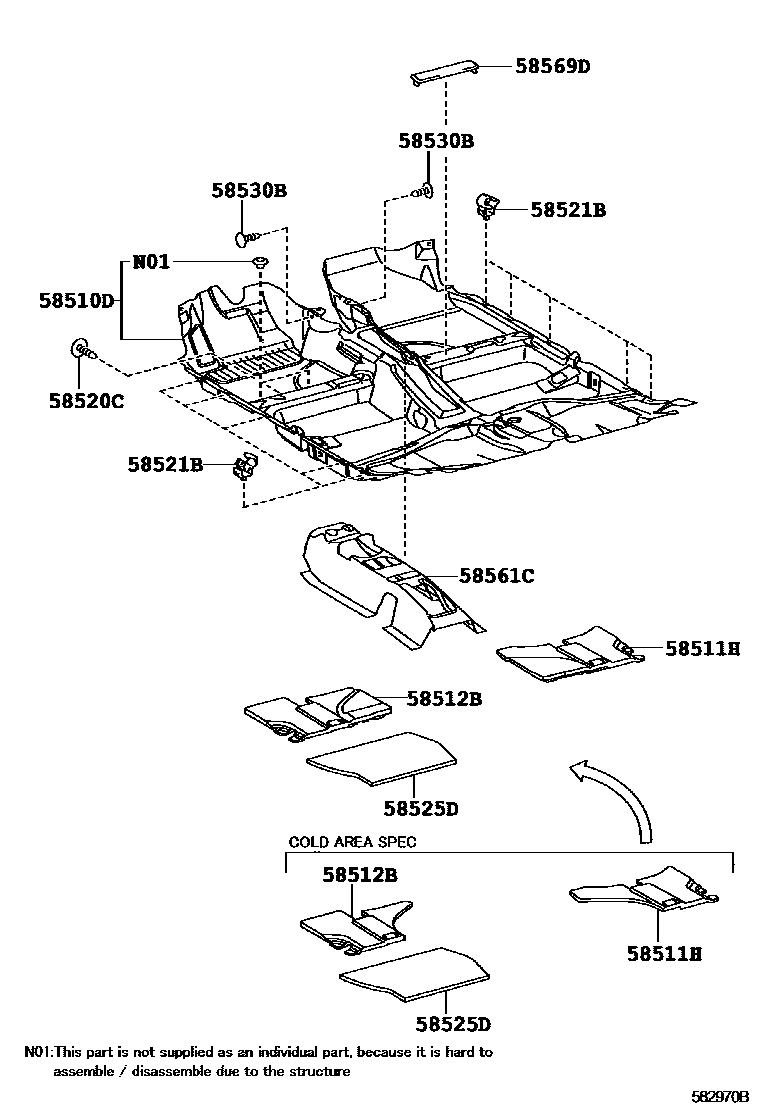

MAT & CARPET

0001 1 0002 1

58510DCARPET ASSY, FLOOR, FRONT

main58510-02840-B0iADE15#..RHD..5D200702-200903

DK.GRAY,TRIM1#

main58510-02840-E1iNDE150..RHD..5D..(6F,6FS)..(E,SOL);ADE15#,NRE150,ZRE15#..RHD..5D..(6F,6FS)..SOL..(DCRL,HTWC,HTWVM)200811-201001

GREIGE,TRIM4#

main58510-02870-B0iNDE150..RHD..3D..(6F,6FS);ADE15#,NRE150,ZRE15#..RHD..3D..(6F,6FS)..(DCRL,HTWC,HTWVM)200811-201001

DK.GRAY,TRIM1#

main58510-02870-E1iZZE150..RHD..3D..SOL200702-200811

GREIGE,TRIM4#

main58510-02F30-B0iZWE150..RHD201006-201210

DK.GRAY,TRIM1#

main58510-02830-B0supersedes 58510-02820-B0iNDE150..LHD..5D..(E,SOL);NDE150..LHD..5D..6F..TERRA;ADE15#,NRE150,ZRE15#..LHD..5D200912-201305

COLD AREA SPEC,DK.GRAY,TRIM1#

main58510-02830-E1supersedes 58510-02820-E1iNDE150,ZRE151..LHD..5D..SOL200702-200902

COLD AREA SPEC,GREIGE,TRIM4#

main58510-02860-B0supersedes 58510-02850-B0iNDE150..LHD..3D..(6F,6FS);ADE15#,NRE150,ZRE15#..LHD..3D..(6F,6FS)..(DCRL,HTWC,HTWVM)200811-201001

COLD AREA SPEC,DK.GRAY,TRIM1#

main58510-02860-E1supersedes 58510-02850-E1iNDE150..LHD..3D..(6F,6FS)..SOL;ADE15#,NRE150,ZRE15#..LHD..3D..(6F,6FS)..SOL..(DCRL,HTWC,HTWVM)200811-201001

COLD AREA SPEC,GREIGE,TRIM4#

main58510-02F20-B0supersedes 58510-02F10-B0iZWE150..LHD201006-201210

COLD AREA SPEC,DK.GRAY,TRIM1#

58511HMAT, FLOOR, FRONT RH

main58512-02010iADE15#200702-200903

main58512-02020iNDE150,ZRE151..LHD200702-200902

COLD AREA SPEC

58512BMAT, FLOOR, FRONT LH

main58511-02020iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)200811-200912

main58511-02030iNDE150..LHD..5D..6F..TERRA;NDE150..LHD..5D..(6F,6FS)..(E,SOL);ADE15#,NRE150,ZRE15#..LHD..5D..(6F,6FS)..(DCRL,HTWC,HTWVM)200811-200912

COLD AREA SPEC

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-B7iNDE150..6F,6FS;ADE15#,NRE150,ZRE15#..(4FC,6F,6FS)..(DCRL,HTWC,HTWVM)200811-201001

DK.GRAY

58521BHOOK, FLOOR CARPET

main58521-02050×8iADE15#,NDE150,NRE150,ZRE15#..3D201001

58525DMAT, FRONT FLOOR, REAR NO.3

main58513-02060×2iZZE150200702-200811

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-W0006-B3×2iZZE150200702-200811

DK.GRAY

58561CSILENCER, FRONT FLOOR, NO.1

main58561-02120iZZE150200702-200811

main58561-02121iADE150..LHD..5D;NDE150..5D..(E,SOL);NDE150..5D..6F..TERRA;ADE157,NRE150,ZRE15#..5D..MTM200903-200912

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-02030-B0iZZE150200702-200811

DK.GRAY

9 parts on this diagram · 2 diagrams in section
