FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-02120iADE15#,NDE150,ZRE151,ZZE150200702-200801

main58151-02121iADE15#200802-200903

main58151-02250iNRE150..LHD..5D200811-200912

RUSSIA SPEC, WITH(EURO 4 REGULATION)&COLD AREA SPEC

sub58151-02251

main58151-47040iZWE150201006

main58151-02270iNRE150..LHD..3D200811-201001

COLD AREA SPEC

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-02120iADE15#,NDE150,ZRE151,ZZE150200702-200806

main58153-02121iZZE150200807-200811

58327FINSULATOR, MAIN MUFFLER HEAT, RH

main58327-12230iZWE150201006

90119W0053

main90119-W0053

9017906219

main90179-06219

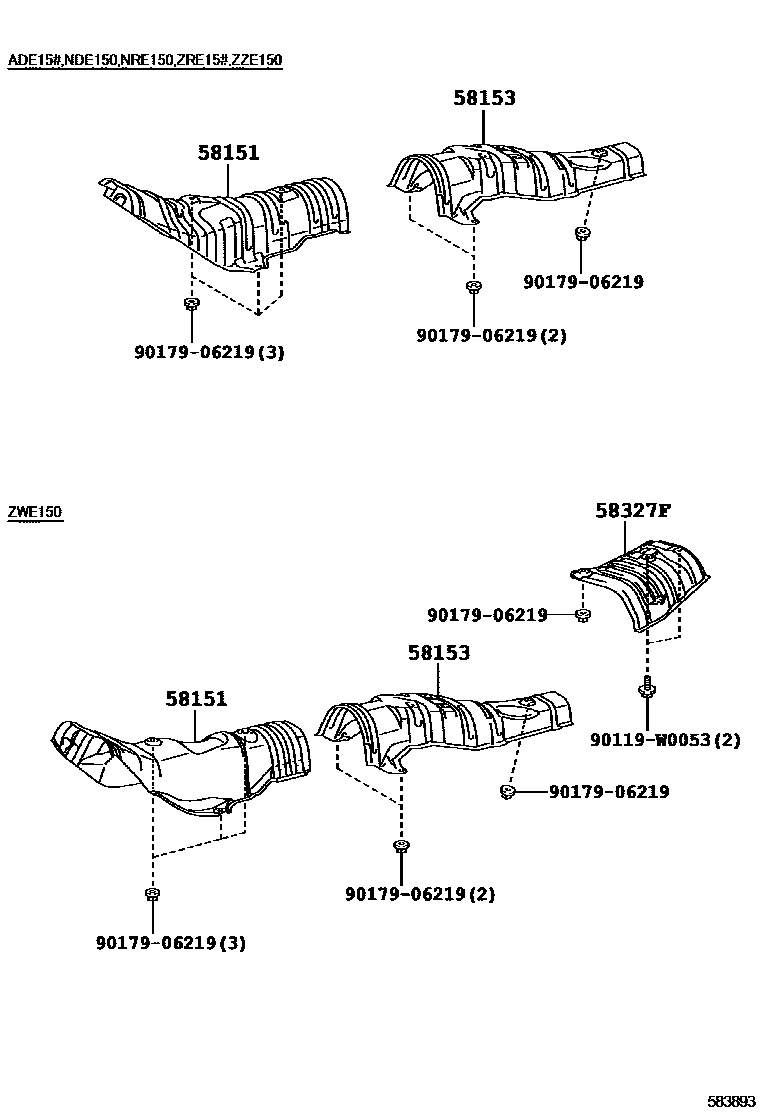

5 parts on this diagram · 1 diagram in section
