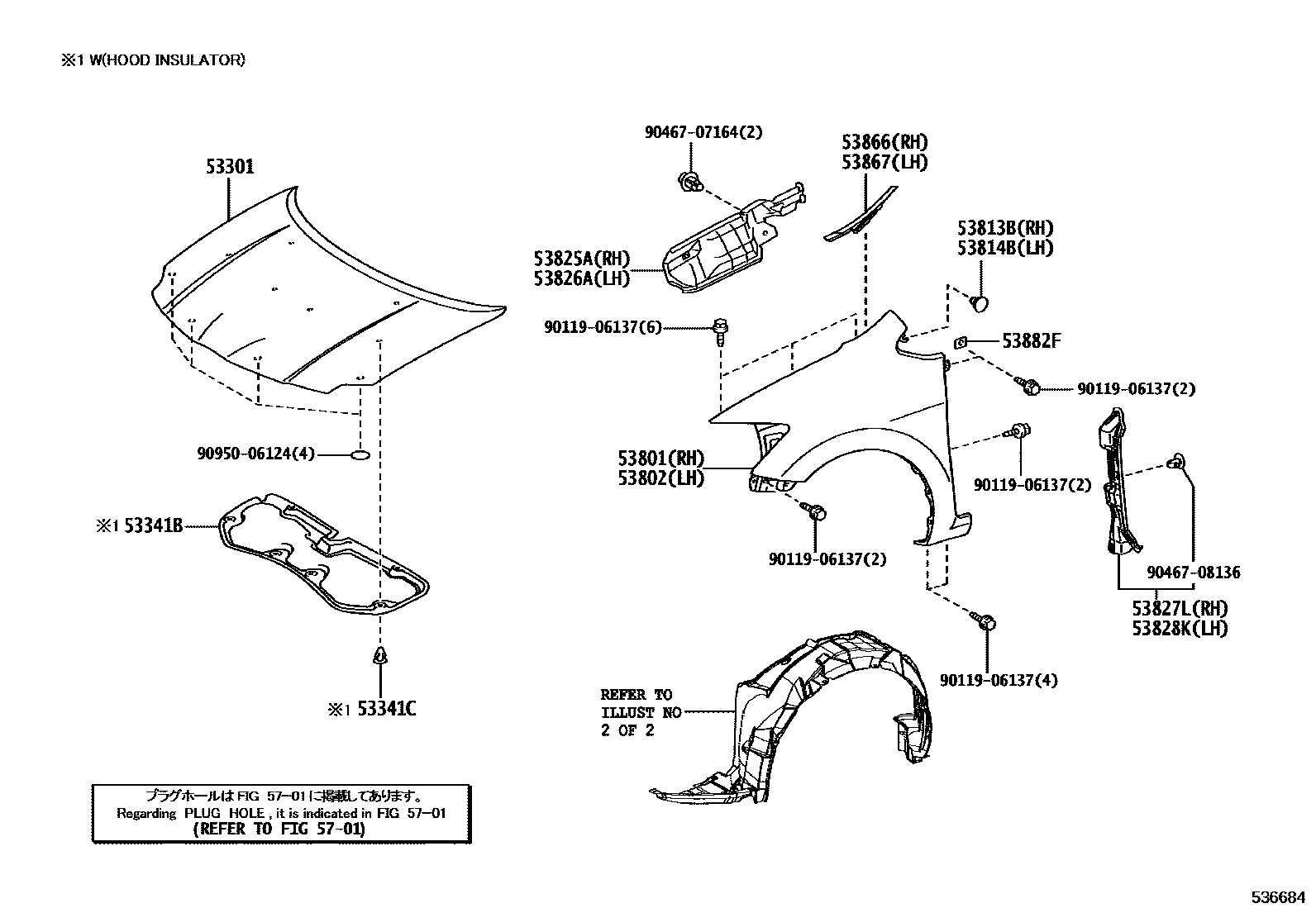

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-02160iNDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC200702-201001

main53301-02250iADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150200912-201305

53341BINSULATOR, HOOD

main53341-02130iZRE151..HTWC;ADE150..RHD..DCRL;ADE150..LHD..3D..DCRL;NDE150..5D..6FS..TERRA;ADE157,NDE150,ZRE15#..3D200702-201001

sub53341-02131

main53341-02130iADE15#..LHD;ZRE152..LHD..SOL;NDE150..6F..TERRA;NDE150,ZRE151,ZWE150..E,G,SOL200912-201105

LIGHT

sub53341-02131

main53341-02131iZRE151..SOL;ADE15#,NDE150,ZRE152,ZWE150201106

LIGHT

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iZRE151..HTWC;ADE150..RHD..DCRL;ADE150..LHD..3D..DCRL;NDE150..5D..6FS..TERRA;ADE157,NDE150,ZRE15#..3D¥120200702-201001

(J)

main90467-09050iADE15#..LHD;ZRE152..LHD..SOL;NDE150..6F..TERRA;NDE150,ZRE151,ZWE150..E,G,SOL¥120200912

LIGHT,(J)

main90467-W0003iZRE151..HTWC;ADE150..RHD..DCRL;ADE150..LHD..3D..DCRL;NDE150..5D..6FS..TERRA;ADE157,NDE150,ZRE15#..3D¥130200702-201001

(L)

53801FENDER SUB-ASSY, FRONT RH

main53801-02100iADE15#200702-201001

main53801-02130iADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150200912-201305

53802FENDER SUB-ASSY, FRONT LH

main53802-02100iNDE150,ZRE151200702-201001

main53802-02130iADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150200912-201305

53813BEXTENSION, FRONT FENDER, RH

main53813-52020iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)¥160200702-201001

53814BEXTENSION, FRONT FENDER, LH

main53813-52020iNDE150,ZRE151¥160200702-201001

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-02020iADE157200702-201001

main53825-02020iNRE150,ZRE151;NDE150..E,SOL;NDE150..6F..TERRA;ADE157,ZRE152..LHD..SOL200912

LIGHT

main53825-02030iADE150200702-201001

53826APROTECTOR, FRONT FENDER, UPPER LH

main53826-02020iZZE150200702-201001

main53826-02020iNRE150,ZRE151;NDE150..E,SOL;NDE150..6F..TERRA;ADE157,ZRE152..LHD..SOL200912

LIGHT

main53826-02030iADE150200702-201001

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-02070iNDE150,ZRE151200702-201001

main53827-02160iZWE150201006

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-02070iNDE150,ZRE151200702-201001

main53828-02150iZWE150201006

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-02020iZZE150200702-201001

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-02020iZZE150200702-201001

53882FSEAL, FRONT FENDER

main53882-16030iZZE150¥60200702-201001

5701

9011906137

main90119-06137¥70

9046707164

main90467-07164¥120

9046708136

main90467-08136¥90

9095006124

main90950-06124¥90

19 parts on this diagram · 2 diagrams in section
