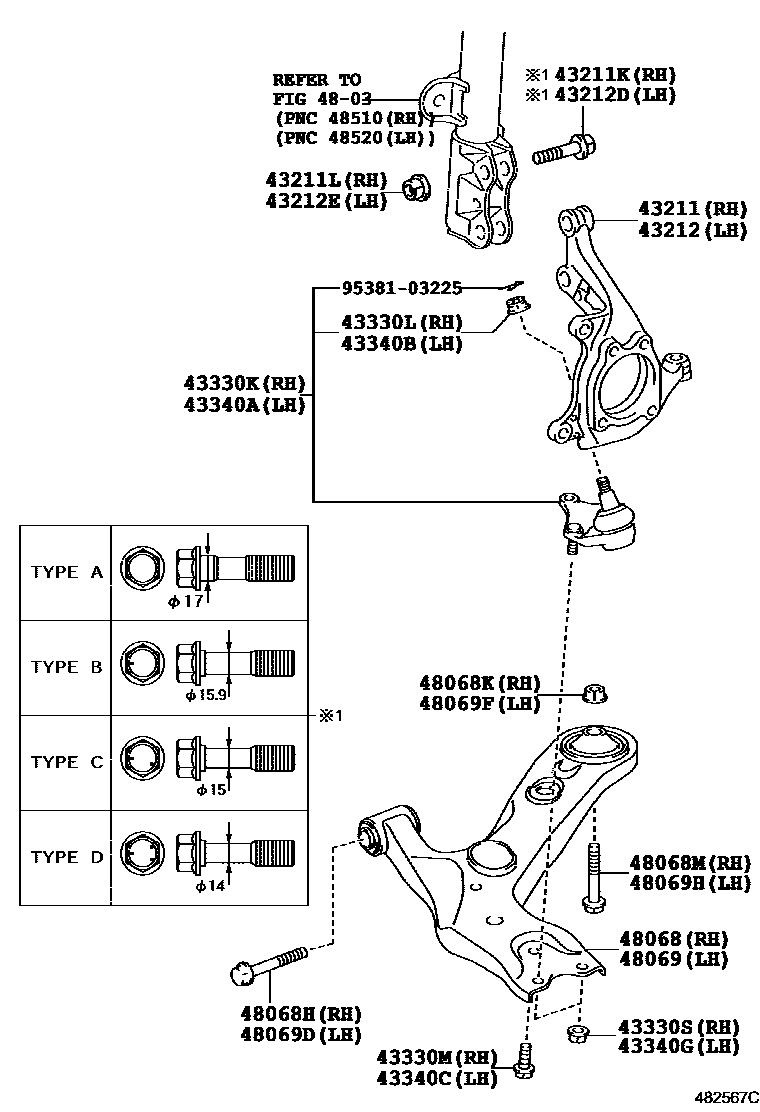

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-02170iADE15#,NDE150,ZRE151,ZZE150200702-200808

sub43211-02171

main43211-02171iNDE150,ZRE151200809-201001

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17009iADE15#200702-201001

OD=15.9,TYPE B:REFER ILLUST.

main90105-17010iNDE150..6F,6FS;ADE15#,NRE150,ZRE15#..(4FC,6F,6FS)..(DCRL,HTWC,HTWVM)200702-201001

OD=15,TYPE C:REFER ILLUST.

main90105-17011iNDE150,ZRE151200702-201001

OD=14,TYPE D:REFER ILLUST.

main90105-W0070iADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150200702-201001

OD=17,TYPE A:REFER ILLUST.

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-17002iNDE150,ZRE151200702-201001

43212KNUCKLE, STEERING, LH

main43212-02170iADE15#,NDE150,ZRE151,ZZE150200702-200808

sub43212-02171

main43212-02171iZZE150200809-201001

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17009iNDE150..6F,6FS;ADE15#,NRE150,ZRE15#..(4FC,6F,6FS)..(DCRL,HTWC,HTWVM)200702-201001

OD=15.9,TYPE B:REFER ILLUST.

main90105-17010iADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150200702-201001

OD=15,TYPE C:REFER ILLUST.

main90105-17011iNDE150,ZRE151200702-201001

OD=14,TYPE D:REFER ILLUST.

main90105-W0070iNDE150..6F,6FS;ADE15#,NRE150,ZRE15#..(4FC,6F,6FS)..(DCRL,HTWC,HTWVM)200702-201001

OD=17,TYPE A:REFER ILLUST.

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-17002iZRE151..4FC;ADE150..RHD..DCRL;ADE150..LHD..3D..DCRL;NDE150..5D..6FS..TERRA;ADE157,NDE150,NRE150,ZRE15#..3D..(6F,6FS)200702-201001

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-09630iZZE150200702-201001

sub43330-09631

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003iZZE150200702-201001

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main90105-W0077iZZE150200702-201001

sub90105-12346

43330SNUT (FOR FRONT LOWER BALL JOINT RH)

main90178-12019iNDE150,ZRE151200702-201001

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-09630iNDE150,ZRE151200702-201001

sub43330-09631

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003iZZE150200702-201305

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main90105-W0077iZZE150200702-201001

sub90105-12346

43340GNUT (FOR FRONT LOWER BALL JOINT LH)

main90178-12019iADE15#200702-201001

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-02130iZZE150200702-201001

main48068-02140iADE157..3D200702-201001

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main91554-L1690iADE15#200702-201001

48068KNUT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90178-16006iZZE150200702-201001

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main91554-L1690iZZE150200702-201001

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-02130iADE150200702-201001

main48069-02140iADE157..LHD200702-201001

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main91554-L1690iNDE150,ZRE151200702-201001

48069FNUT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90178-16006iZZE150200702-201001

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main91554-L1690iZZE150200702-201001

9538103225

main95381-03225

24 parts on this diagram · 1 diagram in section
