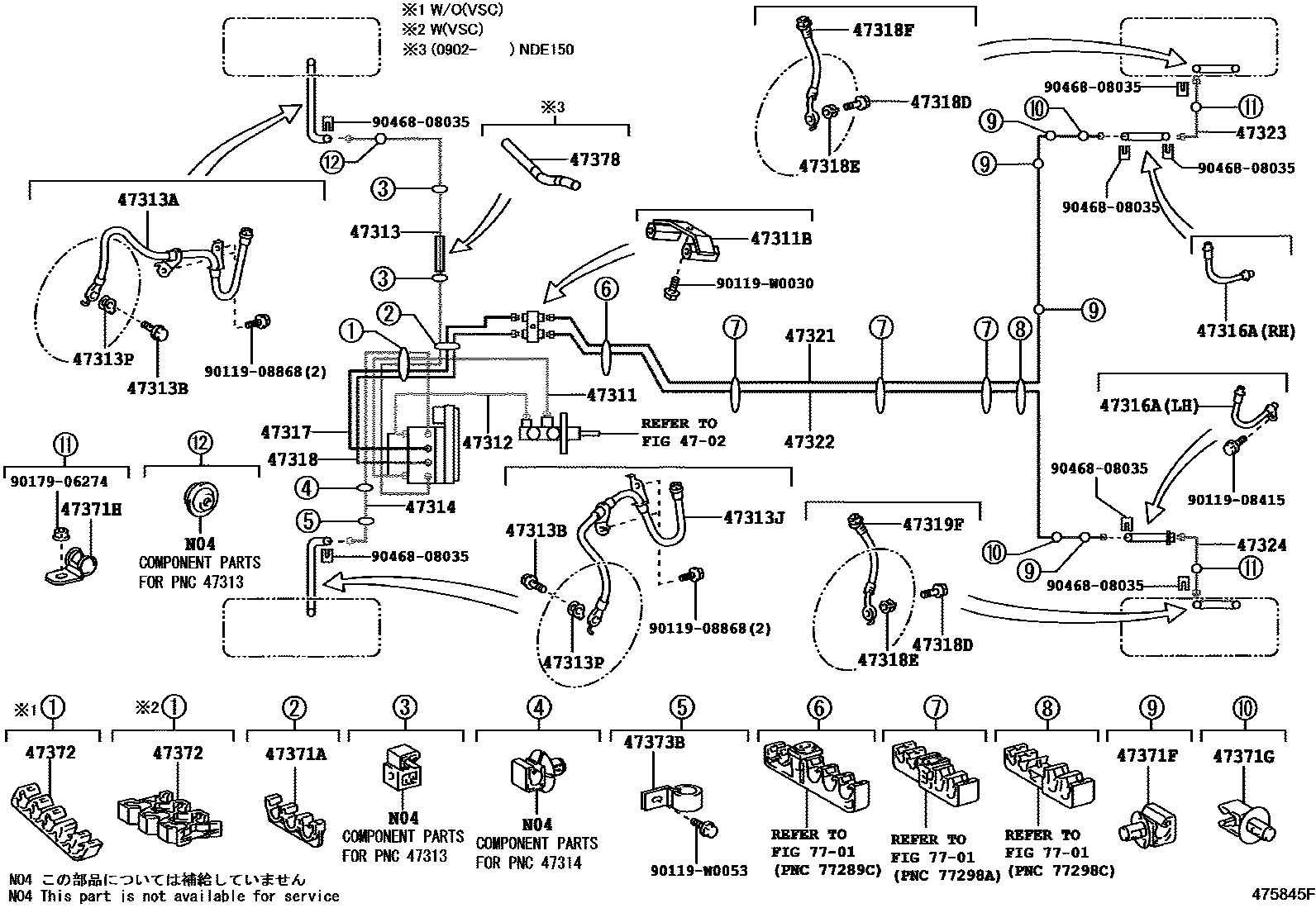

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1W(VSC) 0006 1W(VSC) 0007 1 0008 1 0009 1 0010 1 0011 1

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-02370iZZE150..LHD200702-201001

main47311-02390iADE157..LHD200702-200903

VSC-WITH(W/CUT OFF SWITCH)

main47311-02390iADE150..TERRA200702-200903

VSC-WITH

main47311-02390iADE157..LHD..5D200903-201001

main47311-02400iNDE150,ZRE151..RHD200702-201001

main47311-02410iADE157..RHD200702-200903

VSC-WITH(W/CUT OFF SWITCH)

main47311-02410iADE157..RHD..3D200903-201001

main47311-02720iZWE150..LHD201006

main47311-02730iZWE150..RHD201006

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10255iNDE150,ZRE151200702-201001

main90412-10279iZWE150201006

47312TUBE, FRONT BRAKE, NO.2

main47312-02240iZZE150..LHD200702-201001

main47312-02260iADE150..LHD200702-200903

VSC-WITH(W/CUT OFF SWITCH)

main47312-02260iADE157..LHD200702-200903

VSC-WITH

main47312-02260iADE157..LHD..5D200903-201001

main47312-02270iNDE150,ZRE151..RHD200702-201001

main47312-02280iADE157..RHD..5D200903-201001

main47312-02280iADE150..RHD200702-200903

VSC-WITH(W/CUT OFF SWITCH)

47313TUBE, FRONT BRAKE, NO.3

main47313-02310iNDE150..LHD..3D;NDE150..5D..6FS..TERRA200908-201001

*154

main47313-02310iZZE150..LHD200702-201001

main47313-02320iADE150..LHD200702-200903

VSC-WITH

main47313-02320iADE150..LHD200702-200903

VSC-WITH(W/CUT OFF SWITCH)

main47313-02320iADE157..LHD..3D200903-201001

main47313-02320iNDE150..LHD..6F..TERRA;NDE150,ZRE152..LHD..SOL;ADE150,NRE150,ZRE151..LHD200912

VSC-WITH(W/CUT OFF SWITCH),*154

main47313-02320iNDE150..LHD..6F..TERRA;NDE150,ZRE152..LHD..SOL;ADE150,NRE150,ZRE151..LHD200912

*154

main47313-02350iADE150..RHD..DCRL;NDE150,NRE150,ZRE15#..RHD..3D..(6F,6FS)200702-201001

main47313-02350iNDE150,NRE150,ZRE151..RHD200912

*154

main47313-02360iADE157..RHD..3D200903-201001

main47313-02360iADE150..RHD200702-200903

VSC-WITH(W/CUT OFF SWITCH)

main47313-02670iNDE150..LHD..E200905-200912

main47313-02670iNDE150..LHD..3D;NDE150..5D..6FS..TERRA200905-201001

*153

main47313-02670iNDE150..LHD..E200912

*154

main47313-02700iZWE150..LHD201006-201204

main47313-02701iZWE150..LHD201205

main47313-02710iZWE150..RHD201006-201202

main47313-02711iZWE150..RHD201203

main47313-02720iZRE152..LHD..SOL;ADE150,NRE150,ZRE151..LHD200912

*153

main47313-02730iNDE150..LHD..(E,SOL);NDE150..LHD..6F..TERRA200912

*153

main47313-02740iADE157..LHD200912

VSC-WITH(W/CUT OFF SWITCH),*153

main47313-02740iADE157..LHD200912

*153

main47313-02760iNDE150,NRE150,ZRE151..RHD200912

*153

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-W2012iZRE151..4FC;ADE150..RHD..DCRL;ADE150..LHD..3D..DCRL;NDE150..5D..6FS..TERRA;ADE157,NDE150,NRE150,ZRE15#..3D..(6F,6FS)200702-201001

main90947-W2012iZWE150200912

*154

main90947-W2027iZWE150201006-201012

main90947-W2027iADE15#..LHD;NRE150,ZRE151;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA200912

*153

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)200702-201001

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-W2013iZRE151..4FC;ADE150..RHD..DCRL;ADE150..LHD..3D..DCRL;NDE150..5D..6FS..TERRA;ADE157,NDE150,NRE150,ZRE15#..3D..(6F,6FS)200702-201001

main90947-W2013iADE15#..LHD;NRE150,ZRE151;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA200912

*154

main90947-W2028iZWE150201006-201012

main90947-W2028iADE15#..LHD;NRE150,ZRE151;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA200912

*153

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020iZZE150200702-201001

47314TUBE, FRONT BRAKE, NO.4

main47314-02350iNDE150..LHD..E200912-201202

*154

main47314-02350iZZE150..LHD200702-201001

main47314-02351iNDE150..LHD..E201203-201210

main47314-02351iADE150,NDE150,NRE150,ZRE15#..LHD..(SOL,TERRA)201203-201305

*154

main47314-02360iADE150..LHD200702-200903

VSC-WITH(W/CUT OFF SWITCH)

main47314-02360iADE157..LHD..5D200903-201001

main47314-02360iADE150..TERRA200702-200903

VSC-WITH

main47314-02360iADE157..LHD200912-201202

*154

main47314-02360iADE157..LHD200912-201202

VSC-WITH(W/CUT OFF SWITCH),*154

main47314-02361iADE157201203-201210

*154

main47314-02370iADE150..RHD200702-201001

main47314-02370iNDE150,NRE150,ZRE151..RHD200912-201202

*154

main47314-02371iNDE150,NRE150,ZRE151..RHD201203-201210

*154

main47314-02410iADE157..RHD..5D200903-201001

main47314-02410iADE150..RHD200702-200903

VSC-WITH(W/CUT OFF SWITCH)

main47314-02670iZWE150..LHD201012-201210

*154

main47314-02670iZWE150..LHD201006-201012

main47314-02680iZWE150..RHD201006-201012

main47314-02680iZWE150..RHD201012-201210

*154

main47314-02690iNDE150..LHD..6F..TERRA;NDE150,ZRE152..LHD..SOL;ADE150,NRE150,ZRE151..LHD200912-201202

*153

main47314-02691iADE150,NDE150,NRE150,ZRE15#..LHD..(SOL,TERRA)201203-201305

*153

main47314-02700iADE157..LHD200912-201202

*153

main47314-02700iADE157..LHD200912-201202

VSC-WITH(W/CUT OFF SWITCH),*153

main47314-02701iADE157201203-201210

*153

main47314-02710iNDE150,NRE150,ZRE151..RHD200912-201202

*153

main47314-02711iNDE150,NRE150,ZRE151..RHD201203-201210

*153

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-W2014iZZE150200702-201001

LH

main90947-W2014iZWE150200912

*154, LH

main90947-W2015iZRE151..4FC;ADE150..RHD..DCRL;ADE150..LHD..3D..DCRL;NDE150..5D..6FS..TERRA;NDE150,NRE150,ZRE15#..3D..(6F,6FS)200702-201001

RH

main90947-W2015iADE150..LHD;NRE150,ZRE151;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA200912

*154, RH

main90947-W2025iZWE150201006-201012

RH

main90947-W2025iZWE150200912

*153, RH

main90947-W2026iADE150..LHD;NRE150,ZRE151;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA200912

*153, LH

main90947-W2026iZWE150201006-201012

LH

47317TUBE, FRONT BRAKE, NO.7

main47317-02230iNDE150,ZRE151..LHD200702-201001

main47317-02240iADE157..LHD..5D200903-201001

main47317-02240iADE157..LHD200702-200903

VSC-WITH

main47317-02240iADE157..LHD200702-200903

VSC-WITH(W/CUT OFF SWITCH)

main47317-02270iNDE150,NRE150,ZRE151..RHD200702-201001

main47317-02280iADE157..RHD..5D200903-201001

main47317-02280iADE157..RHD200702-200903

VSC-WITH(W/CUT OFF SWITCH)

main47317-02620iZWE150..LHD201006-201108

sub47317-02621

main47317-02621iZWE150..LHD201109

main47317-02630iZWE150..RHD201006-201108

sub47317-02631

main47317-02631iZWE150..RHD201109

47318TUBE, FRONT BRAKE, NO.8

main47318-02250iZRE151..4FC;NDE150..5D..6FS..TERRA;NDE150..LHD..3D..(6F,6FS);ADE150,NRE150,ZRE15#..LHD..3D..(6F,6FS)..(DCRL,HTWC,HTWVM)200702-201001

main47318-02260iADE150..TERRA200702-200903

VSC-WITH

main47318-02260iADE157..LHD200702-200903

VSC-WITH(W/CUT OFF SWITCH)

main47318-02260iADE157..LHD..5D200903-201001

main47318-02290iADE150..RHD..DCRL;NDE150,NRE150,ZRE15#..RHD..3D..(6F,6FS)200702-201001

main47318-02300iADE157..RHD..3D200903-201001

main47318-02300iADE150..RHD200702-200903

VSC-WITH(W/CUT OFF SWITCH)

main47318-02640iZWE150..LHD201006-201108

sub47318-02641

main47318-02641iZWE150..LHD201109

main47318-02650iZWE150..RHD201006-201108

sub47318-02651

main47318-02651iZWE150..RHD201109

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058iZZE150200702-201001

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020iZZE150200702-201001

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-W2016iADE150..LHD;NRE150,ZRE151;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA200912

*154

main90947-W2016iZZE150200702-201001

main90947-W2017iADE157200702-201001

main90947-W2024iZWE150201006-201012

main90947-W2024iADE150..LHD;NRE150,ZRE151;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA200912

*153

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-W2016iZRE151..4FC;ADE150..RHD..DCRL;ADE150..LHD..3D..DCRL;NDE150..5D..6FS..TERRA;NDE150,NRE150,ZRE15#..3D..(6F,6FS)200702-201001

main90947-W2016iZWE150200912

*154

main90947-W2018iADE157..LHD200702-201001

main90947-W2024iZWE150201006-201012

main90947-W2024iZWE150200912

*153

47321TUBE, REAR BRAKE, NO.1

main47320-02150iZWE150201006-201108

sub47320-02151

main47320-02151iZWE150201109-201211

main47321-02170iADE150200702-201001

main47321-02170iADE150..LHD;NRE150,ZRE151;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA200912-201305

*154

main47321-02200iADE157..5D200702-201001

main47321-02340iADE150..LHD;NRE150,ZRE151;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA200912-201305

*153

main47321-02350iADE157..LHD200912-201210

47322TUBE, REAR BRAKE, NO.2

main47322-02170iZZE150200702-201001

main47322-02170iADE150..LHD;NRE150,ZRE151;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA200912-201305

*154

main47322-02200iADE157200702-201210

main47322-02340iZWE150201006-201108

sub47322-02341

main47322-02341iZWE150201109

main47322-02350iADE150..LHD;NRE150,ZRE151;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA200912-201305

*153

47323TUBE, REAR BRAKE, NO.3

main47323-02080iZZE150200702-201001

main47323-02080iADE150..LHD;NRE150,ZRE151;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA200912

*154

main47323-02140iADE150..LHD;NRE150,ZRE151;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA200912

*153

main47323-02140iZWE150201006-201012

47324TUBE, REAR BRAKE, NO.4

main47324-02080iZZE150200702-201001

main47324-02080iADE150..LHD;NRE150,ZRE151;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA200912

*154

main47324-02130iZWE150201006-201012

main47324-02130iADE150..LHD;NRE150,ZRE151;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA200912

*153

47371ACLAMP, BRAKE TUBE, NO.1

main90464-00857iZWE150..RHD201006

main90464-00868iADE15#..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NRE150,ZRE15#..5D..(6F,6FS);NDE150..5D..(6F,6FS)..(E,SOL)200702-201001

main90464-00884iADE157..RHD200702-200903

VSC-WITH(W/CUT OFF SWITCH)

main90464-00884iADE157..RHD..3D200903-201001

main90464-00904iZWE150..LHD201006

47371FCLAMP, BRAKE TUBE, NO.10

main90949-01D17iADE157200702-201305

47371GCLAMP, BRAKE TUBE, NO.11

main90949-01D29iZZE150200702-201305

47371HCLAMP, BRAKE TUBE, NO.12

main90461-10837iZZE150200702-201001

47372CLAMP, BRAKE TUBE, NO.2

main90464-00883iZWE150..RHD201006

main90464-00885iADE150..TERRA200702-200903

VSC-WITH

main90464-00885iADE157..LHD200702-200903

VSC-WITH(W/CUT OFF SWITCH)

main90464-00885iADE157..LHD..5D200903-201001

main90464-00890iADE150..RHD200702-201001

main90464-00895iADE157..RHD200702-200903

VSC-WITH(W/CUT OFF SWITCH)

main90464-00895iADE157..RHD..5D200903-201001

main90464-00900iADE150..LHD200702-201001

main90949-01972iZWE150..LHD201006

47373BCLAMP, BRAKE TUBE, NO.3

main90461-10781iZZE150200702-201001

47378PROTECTOR, BRAKE TUBE

main47378-02040iNDE150..LHD..3D;NDE150..5D..6FS..TERRA200902-201001

main47378-02050iNDE150..RHD..3D200902-201001

7701

9011908415

main90119-08415

9011908868

main90119-08868

90119W0030

main90119-W0030

90119W0053

main90119-W0053

9017906274

main90179-06274

9046808035

main90468-08035

35 parts on this diagram · 11 diagrams in section
