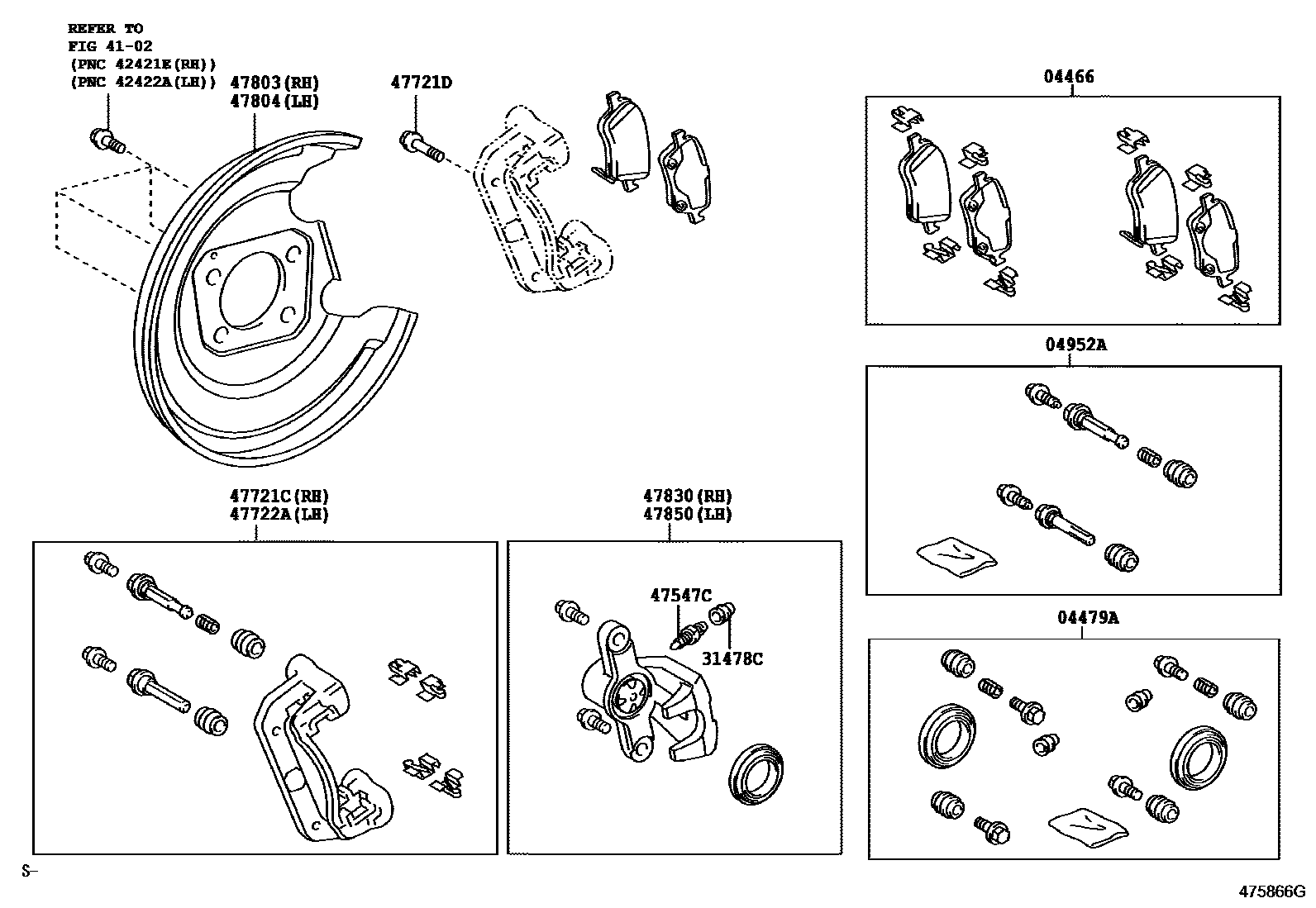

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04466PAD KIT, DISC BRAKE, REAR

main04466-02180iZZE150200702-200903

MARK GALFER G3409

sub04466-02181¥6,700

main04466-02181iADE150..LHD;NRE150,ZRE151;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA¥6,700200903-201305

MARK GALFER G3409

main04466-02190iADE157200702-200903

MARK GALFER G3409

sub04466-02191¥7,400

main04466-02191iADE157¥7,400200903-201210

MARK GALFER G3409

main04466-12130iZWE150¥6,500201006-201111

MARK AK NS254

sub04466-12140¥6,500

main04466-12140iZWE150¥6,500201111-201205

MARK AK NS254

sub04466-12150¥5,900

main04466-12150iZWE150¥5,900201206-201210

MARK AK NS254

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-02310iADE15#¥1,800200702-201001

main04479-12230iZWE150¥2,070201006

04952APIN KIT, REAR DISC BRAKE CYLINDER SLIDE

main04952-02220iADE15#¥2,240200702-201001

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-52010iZWE150¥160201006

main90069-39001iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)¥170200702-201001

4102

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47847-52050iZWE150¥220201006

main90069-39000iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)¥310200702-201001

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-09010iADE157200702-201001

main47821-09020iADE150..LHD;NRE150,ZRE151;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA¥5,800200702-201001

main47821-12151iZWE150¥5,200201006

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-10404iADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150¥100200702-201305

*10-1.25PX24-21.5

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47821-12151iZWE150¥5,200201006

main47822-09010iADE157200702-201001

main47822-09020iADE150..LHD;NRE150,ZRE151;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA¥5,800200702-201001

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47881-02031iADE150200703-201305

main47881-12070iADE150,NDE150,ZRE151,ZZE150¥2,470200702-200703

main47881-12071iZWE150¥1,650201006-201210

main47881-12080iADE157..LHD¥1,720200702-201210

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47882-02031iADE150200703-201305

main47882-12070iADE150,NDE150,ZRE151,ZZE150¥2,440200702-200703

main47882-12071iZWE150¥1,650201006-201210

main47882-12080iADE157..LHD¥1,720200702-201210

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-02100iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NRE150,ZRE15#..5D..(6F,6FS);NDE150..5D..(6F,6FS)..(E,SOL)200702-201001

main47830-12151iZWE150¥34,200201006

main47830-12220iADE157..5D200702-201001

sub47830-02260

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-02100iADE150200702-201001

sub47850-02101¥34,600

main47850-12151iZWE150¥34,200201006

main47850-12220iADE157..LHD200702-201001

sub47850-02280

13 parts on this diagram · 2 diagrams in section
