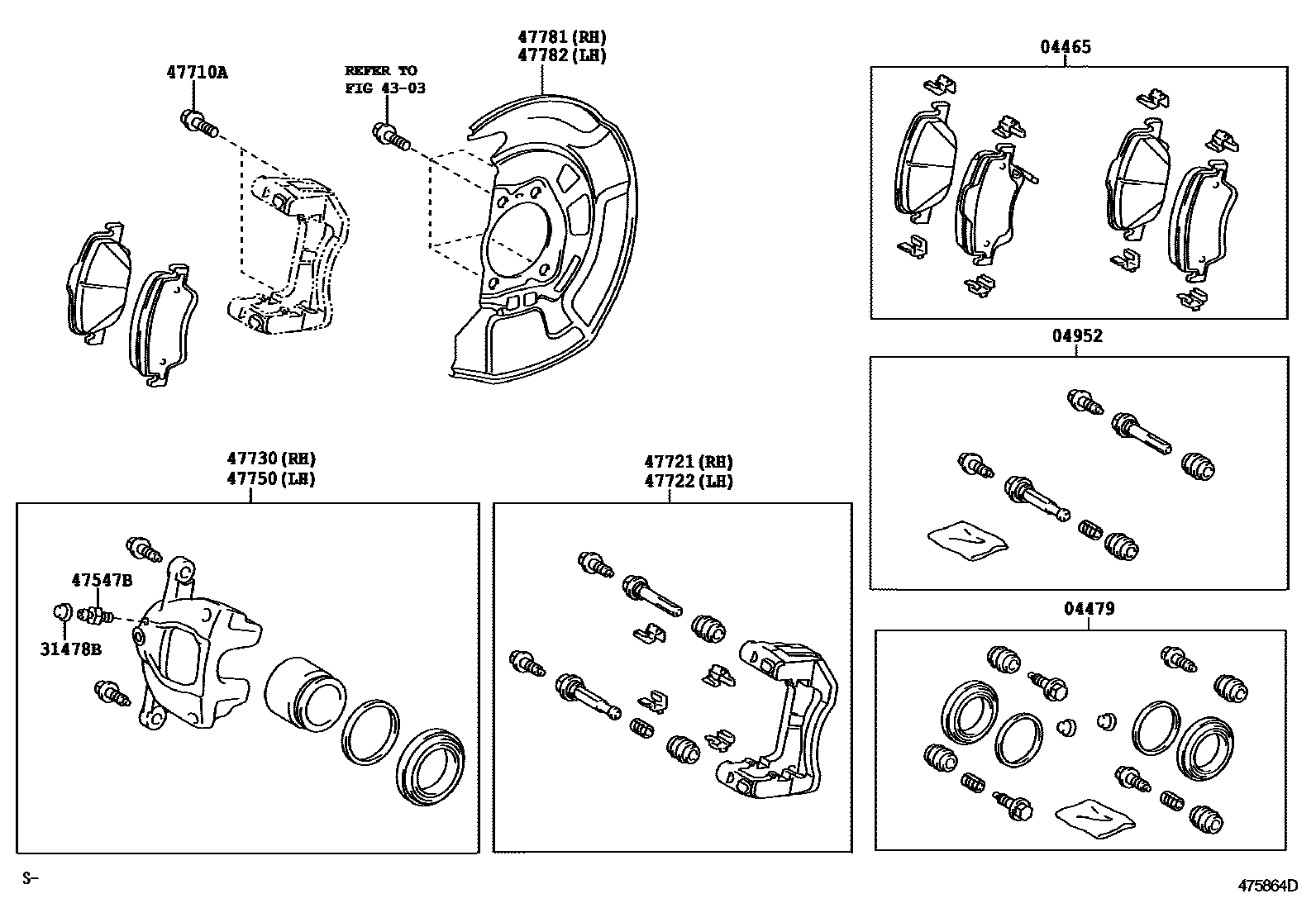

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-02190iADE15#200702-200901

MARK JURID 672

sub04465-02280¥0

main04465-02200iNDE150,ZRE151,ZZE150200702-200802

MARK JURID 672

sub04465-02270

main04465-02210iZRE151..4FC;NDE150..5D..6FS..TERRA;NDE150,NRE150,ZRE15#..3D..(6F,6FS)200809-201104

MARK AK NS 341

sub04465-02370¥11,600

main04465-02270iNDE150,ZRE151,ZZE150200802-200809

MARK JURID 672

sub04465-02210

main04465-02280iADE157..5D;ADE150..LHD..5D¥0200901-201008

MARK JURID 672

sub04465-0F010¥12,600

main04465-02370iNDE150,NRE150,ZRE15#,ZWE150..E,SOL,TERRA¥11,600201104

MARK AK NS 341

main04465-0F010iADE15#¥12,600201009

MARK AK NS378H

sub04465-0F011¥11,400

main04465-42180iZWE150..G¥10,500201006

MARK ADVICS PV565H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-02160iADE15#¥3,200200702-201001

main04478-33100iZWE150..G¥1,800201108

main04478-42020iZWE150..G¥1,980201006-201107

sub04478-33100¥1,800

04952PIN KIT, FRONT DISC BRAKE CYLINDER SLIDE

main04952-02220iZZE150¥2,240200702-201001

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iZWE150..G¥160201006

main90069-39001iZZE150¥170200702-201001

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iZWE150..G¥200201108

main47547-35020iZWE150..G¥220201006-201108

main90069-39000iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)¥310200702-201001

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150¥160200702-201305

*12-1.25PX29.5-23

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-09360iADE15#200702-200901

main47721-09370iNDE150,ZRE151,ZZE150200702-200809

sub47721-09490

main47721-09480iADE157..5D;ADE150..LHD..5D¥9,800200901-201001

main47721-09490iZRE151..4FC;NDE150..5D..6FS..TERRA;NDE150,NRE150,ZRE15#..3D..(6F,6FS)200809-201001

main47721-42090iZWE150..G¥8,400201006-201202

sub47721-42091¥5,800

main47721-42091iZWE150..G¥5,800201202

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-09120iADE15#200702-200901

main47722-09130iNDE150,ZRE151,ZZE150200702-200809

sub47722-09190

main47722-09180iADE157..3D;ADE150..RHD;ADE150..LHD..3D¥9,800200901-201001

main47722-09190iNDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150..SOL,TERRA200809-201001

main47722-42090iZWE150..G¥8,400201006-201202

sub47722-42091¥5,800

main47722-42091iZWE150..G¥5,800201202

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-02340iNDE150,ZRE151,ZZE150200702-200810

sub47730-02341

main47730-02341iNDE150,ZRE151200810-201001

main47730-02360iADE15#200702-200901

main47730-02361iADE157..5D;ADE150..LHD..5D¥37,000200901-201001

main47730-42090iZWE150..G¥47,100201006-201202

sub47730-42091¥32,800

main47730-42091iZWE150..G¥32,800201202

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-02340iNDE150,ZRE151,ZZE150200702-200810

sub47750-02341

main47750-02341iZZE150200810-201001

main47750-02360iADE15#200702-200901

main47750-02361iADE15#¥37,000200901-201001

main47750-42090iZWE150..G¥47,100201006-201202

sub47750-42091¥32,800

main47750-42091iZWE150..G¥32,800201202

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-02100iZZE150200702-201305

main47781-02150iADE15#¥1,400200702-201210

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-02100iNDE150,NRE150,ZRE15#..4FC,6F,6FS200702-201305

main47782-02150iZWE150..G;ADE15#..LHD¥1,400200702-201210

13 parts on this diagram · 3 diagrams in section
