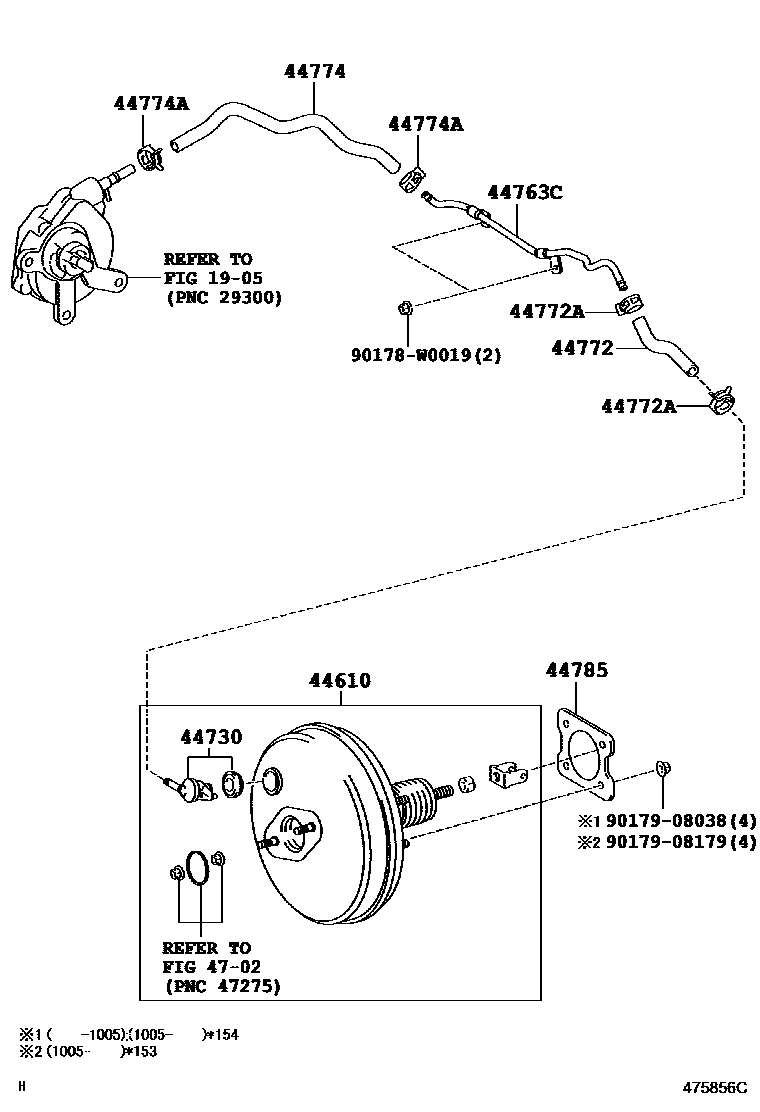

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0011 1 0012 1 0013 1 0014 1 0015 1

1905

44610BOOSTER ASSY, BRAKE

main44610-09400iNDE150..LHD200702-201001

sub44610-09741

main44610-09410iADE157..LHD200702-201210

VSC-WITH(W/CUT OFF SWITCH)

sub44610-09411

main44610-09410iADE150..TERRA;NDE150..LHD..5F..TERRA200702-200903

VSC-WITH

sub44610-09411

main44610-09410iADE157..LHD200903-201001

sub44610-09411

main44610-09420iADE150..RHD..DCRL;NDE150,ZRE15#..RHD200702-201001

sub44610-09721

main44610-09430iZRE151,ZZE150..LHD200702-201001

sub44610-09711

main44610-09450iZRE151,ZZE150..RHD200702-201001

sub44610-09731

main44610-09460iADE157..RHD200903-201001

main44610-09460iADE157..RHD200702-200903

VSC-WITH(W/CUT OFF SWITCH)

main44610-09710iNRE150,ZRE151..LHD..HTWC200912-201210

sub44610-09711

main44610-09711iNRE150201210-201305

main44610-09720iNDE150,ZRE151..RHD200912-201210

sub44610-09721

main44610-09730iNRE150..RHD200912-201210

sub44610-09731

main44610-09740iNDE150..LHD..6F..TERRA;ADE150,ZRE151..LHD..MTM;NDE150,ZRE152..LHD..(E,SOL)200912-201210

sub44610-09741

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-09020iADE15#..LHD;NRE150,ZRE151;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA¥1,430200702-201001

44763CTUBE, HOSE TO HOSE, NO.2

main44763-12400iADE15#..LHD200702-201001

main44763-12420iZZE150..RHD¥1,460200702-200811

main44763-12430iZZE150..LHD200702-200811

main44763-12440iZRE15#..RHD..3D¥1,200200702-201001

main44763-12450iNDE150..RHD200702-201001

main44763-12470iNDE150..LHD200702-200902

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-12580iADE15#..LHD200702-201001

main44772-12610iNDE150..RHD200702-200902

main44772-12620iNDE150,ZRE15#..RHD..3D¥850200702-201001

main44772-12640iADE15#..RHD200702-201001

main44772-12700iNRE150..RHD..5D200811-201001

main44772-12710iNRE150..LHD..3D200811-201001

sub44772-02360

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90466-W0008iZZE150¥120200702-201001

main90467-16014iNRE150..RHD..5D¥230200811-201001

main96133-41500iNRE150..LHD;NDE150..E,SOL;NDE150..6F..TERRA¥140200702-201001

44774HOSE, UNION TO CONNECTOR TUBE

main44774-12530iZRE151..HTWC;ZRE15#..LHD..3D200702-201001

sub44774-02410

main44774-12540iNDE150..LHD200702-200902

main44774-12560iZRE151..RHD¥1,130200702-201001

main44774-12570iNDE150..RHD200702-200902

main44774-12580iADE15#..LHD..3D200702-201001

sub44774-64050

main44774-12590iZZE150..RHD200702-200811

main44774-12630iZZE150..LHD200702-200811

main44774-12740iNRE150..LHD200811-201001

sub44774-02440

main44774-12750iNDE150..LHD..3D;NDE150..5D..6FS..TERRA200902-201003

sub44774-12751

main44774-12751iNDE150..LHD201004

main44774-12760iNDE150..RHD..3D200902-201003

sub44774-12761

main44774-12761iNDE150..RHD201004

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90466-W0008iZZE150¥120200702-201001

main96133-41500iNDE150..LHD¥140200702-201001

44785GASKET, BRAKE BOOSTER

main44785-05020iADE15#,NDE150,NRE150,ZRE15#¥640201003

main44785-12040iZRE151..4FC;ADE150..RHD..DCRL;ADE150..LHD..3D..DCRL;NDE150..5D..6FS..TERRA;ADE157,NDE150,NRE150,ZRE15#..3D..(6F,6FS)¥200200702-201002

4702

90178W0019

main90178-W0019¥110

9017908038

main90179-08038¥130

9017908179

main90179-08179¥200

13 parts on this diagram · 14 diagrams in section
