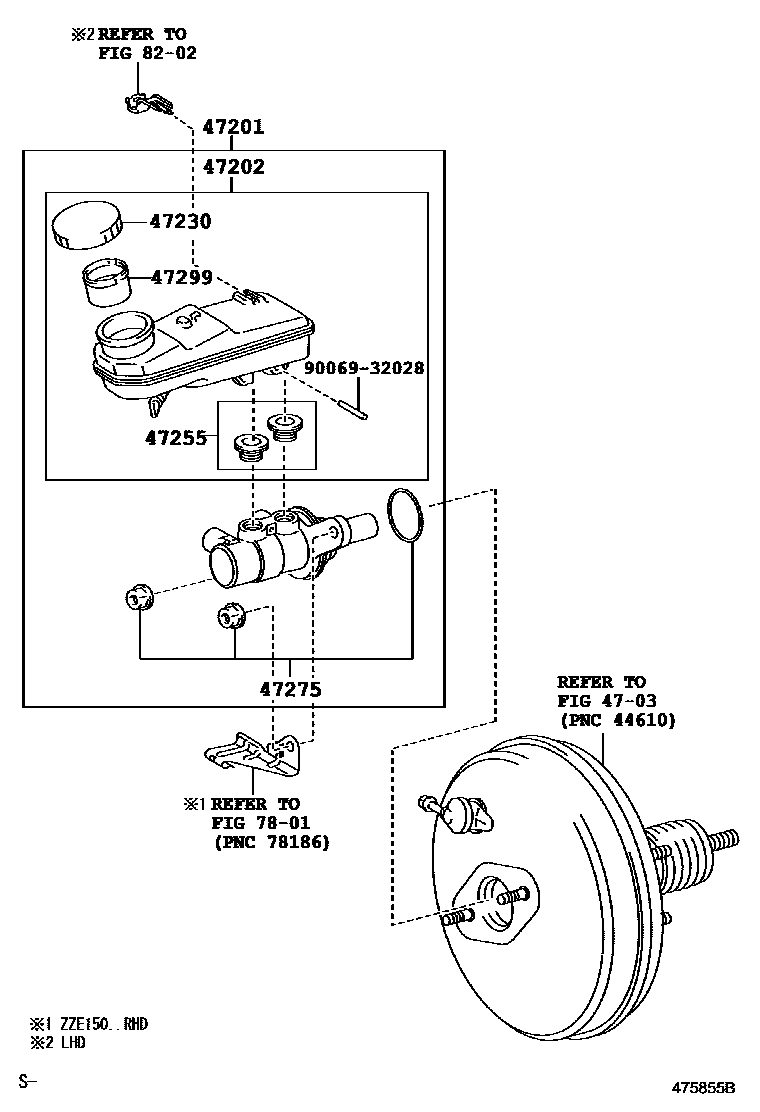

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-09290iADE150,NDE150,ZRE151,ZZE150..LHD200702-200804

sub47201-09510

main47201-09300iADE157..LHD200702-200804

VSC-WITH

sub47201-09500

main47201-09300iADE157..LHD200702-200804

VSC-WITH(W/CUT OFF SWITCH)

sub47201-09500

main47201-09310iADE150,NDE150,ZRE151,ZZE150..RHD200702-200804

sub47201-09530

main47201-09320iADE157..RHD200702-200804

VSC-WITH

sub47201-09520

main47201-09320iADE157..RHD200702-200804

VSC-WITH(W/CUT OFF SWITCH)

sub47201-09520

main47201-09500iADE157..LHD200804-200903

VSC-WITH(W/CUT OFF SWITCH)

main47201-09500iADE157..LHD200804-200903

VSC-WITH

main47201-09500iADE157..LHD..5D200903-201001

main47201-09500iADE157..LHD200912

STOP & START SYSTEM PACKAGE&VSC-WITH(W/CUT OFF SWITCH)

main47201-09510iZRE151..4FC;NDE150..5D..6FS..TERRA;NDE150..LHD..3D..(6F,6FS);ADE150,NRE150,ZRE15#..LHD..3D..(6F,6FS)..(DCRL,HTWC,HTWVM)200804-201001

main47201-09520iADE157..RHD..5D200903-201001

main47201-09520iADE150..RHD200804-200903

VSC-WITH(W/CUT OFF SWITCH)

main47201-09530iADE150..RHD200804-201001

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-09090iADE15#..LHD200702-201305

main47220-09100iZZE150..RHD200702-201210

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0D010iZRE151..4FC;ADE150..RHD..DCRL;ADE150..LHD..3D..DCRL;NDE150..5D..6FS..TERRA;ADE157,NDE150,NRE150,ZRE15#..3D..(6F,6FS)200702-201001

main47230-20140iZWE150..LHD201103

main47230-58010iZWE150..LHD201006-201103

sub47230-11010

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-09040iADE15#..LHD;NRE150,ZRE151;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA200702-201001

47275GASKET, BRAKE MASTER CYLINDER

main47275-09010iNDE150,ZRE151200702-201305

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-02160iADE15#200702-201001

7801

8202

9006932028

main90069-32028

10 parts on this diagram · 3 diagrams in section
