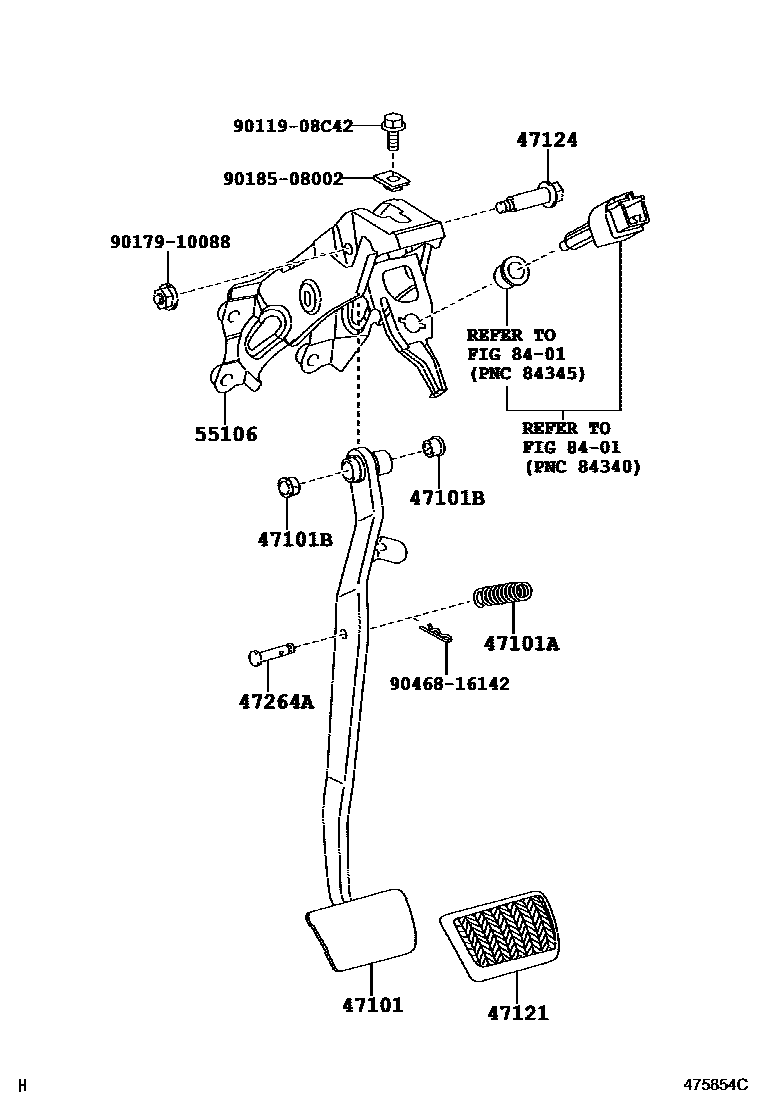

BRAKE PEDAL & BRACKET

0001 1 0002 1 0003 1

47101PEDAL SUB-ASSY, BRAKE

main47101-12630iADE15#,NDE150,ZRE151,ZZE150..RHD..(5F,6F)200702-200708

sub47101-12631

main47101-12631iADE150..RHD..DCRL;ADE157,NDE150,NRE150,ZRE15#..RHD..3D..6F200709-201001

main47101-12640iNDE150,ZRE151..RHD..5FS200702-200708

sub47101-12641

main47101-12641iNDE150,ZRE151..RHD..6FS200709-201001

main47101-12650iNDE150..LHD..3D..6F;ADE15#,NRE150,ZRE15#..LHD..3D..6F..(DCRL,HTWC,HTWVM)200702-201001

main47101-12660iZRE151..HTWC;NDE150..5D..6FS..TERRA;NDE150,ZRE151..LHD..3D..6FS200702-201001

main47101-75011iZWE150..RHD201006-201106

main47101-75012iZWE150..RHD201106

main47101-75021iZWE150..LHD201006-201106

main47101-75022iZWE150..LHD201106

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14050iZWE150201006-201210

main90507-15005iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)200702-201209

main90507-15007iNRE150201210-201305

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iZRE151..4FC;ADE150..RHD..DCRL;ADE150..LHD..3D..DCRL;NDE150..5D..6FS..TERRA;ADE157,NDE150,NRE150,ZRE15#..3D..(6F,6FS)200702-201001

47121PAD, BRAKE PEDAL

main31321-42010iNDE150,ZRE151..LHD..5F200702-201001

main47121-42010iNDE150,ZRE151..RHD..5FS200702-201001

47124SHAFT, BRAKE PEDAL

main47124-47010iZWE150201006

main90109-10174iZZE150..LHD200702-201001

47264APIN(FOR PUSH ROD)

main47148-47020iZWE150201006

main90249-08256iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)200702-201001

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-12680iADE15#,NDE150,ZRE151,ZZE150..RHD200702-201001

main55106-12690iNDE150,ZRE151..LHD200702-201001

main55106-12750iZWE150..LHD201006-201106

main55106-12751iZWE150..LHD201106

main55106-12760iZWE150..RHD201006-201106

main55106-12761iZWE150..RHD201106

8401

9011908C42

main90119-08C42

9017910088

main90179-10088

9018508002

main90185-08002

9046816142

main90468-16142

12 parts on this diagram · 3 diagrams in section
