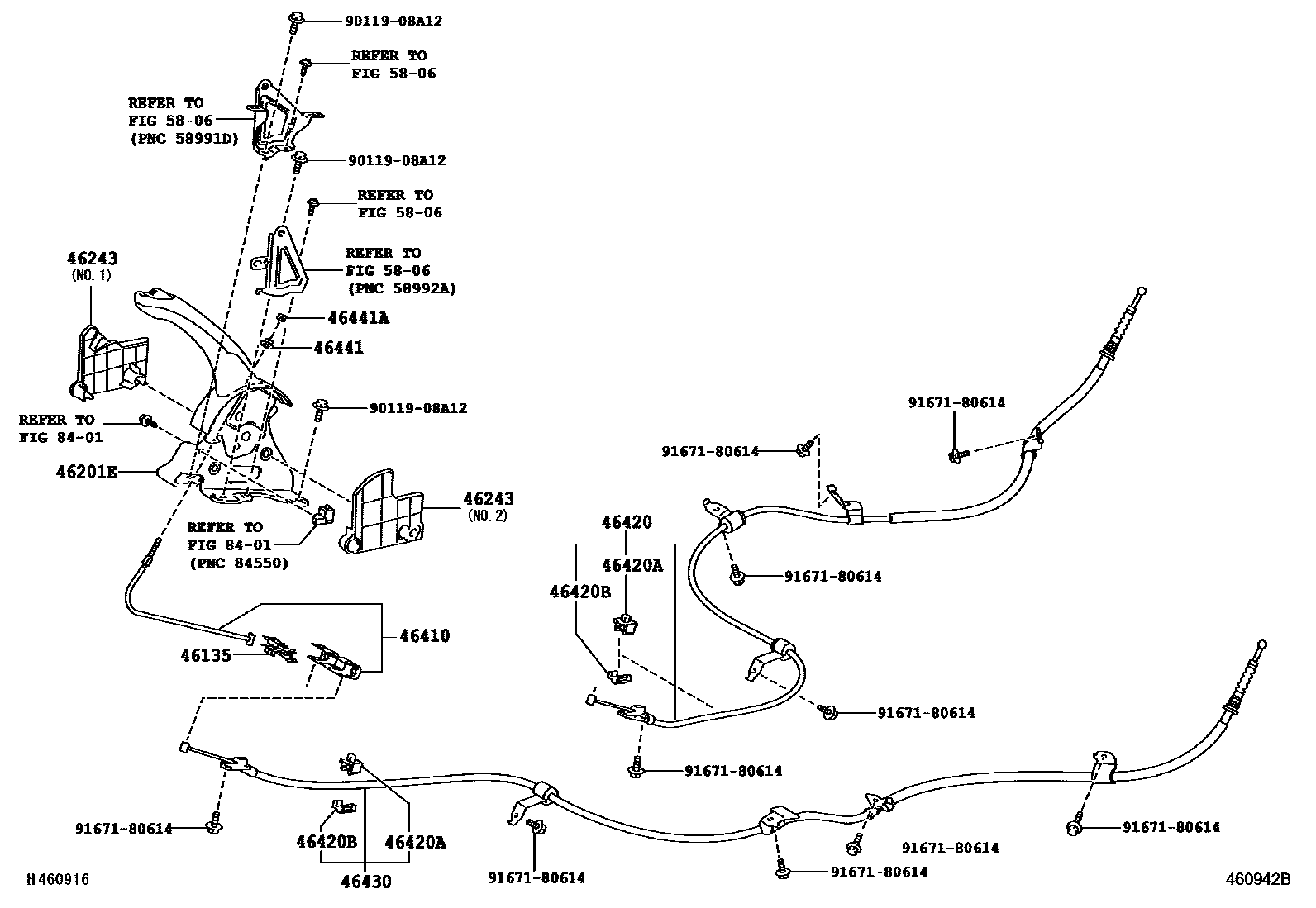

PARKING BRAKE & CABLE

0001 1 0005 1 0007 1 0009 1 0011 1

46135STOPPER, PARKING BRAKE CABLE END

main46135-02010iNDE150,ZRE151200702-201001

main46135-0F020iADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150200912

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-02260-B0iZZE150..5D..SOL;ZZE150..LHD..3D..SOL200702-201001

DK.GRAY,TRIM1#,4#

main46201-02260-B0iZZE150..RHD..3D..SOL200702-201001

DK.GRAY,TRIM1#

main46201-02260-B0iZZE150..RHD..3D..SOL200702-200903

DK.GRAY,TRIM0#,1#,4#

main46201-02470-B0iADE150,ZRE152..LHD..SOL;NDE150,NRE150,ZRE151..E,SOL200912-201104

DK.GRAY,TRIM1#,4#

sub46201-02471

main46201-02470-B0iZWE150;ADE157..LHD;NDE150..6F..TERRA;ADE150,NRE150,ZRE151..TERRA200912-201104

DK.GRAY,TRIM1#

sub46201-02471

main46201-02471-B0iADE150,NDE150,NRE150,ZRE15#..E,SOL201105-201210

DK.GRAY,TRIM1#,4#

main46201-02471-B0iADE157,ZWE150;ADE150,NDE150,NRE150,ZRE151..TERRA201105-201305

DK.GRAY,TRIM1#

46243COVER, PARKING BRAKE LEVER

main46243-02040iZZE150200702-201001

NO.1

main46243-02050iADE15#200702-201001

NO.2

main46243-02060iADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150200912

NO.1

main46243-02070iADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150200912

NO.2

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-02090iNDE150,ZRE151200702-201001

main46410-02190iADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150200912

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-02121iADE150200702-201001

main46420-02130iADE157..3D200702-201001

main46420-12770iZWE150201006

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main46402-12030iZWE150201006

main46411-12030iNDE150,ZRE151200702-201001

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main46411-12040iZZE150200702-201001

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-02121iZZE150200702-201001

main46430-02130iADE157..5D200702-201001

main46430-12650iZWE150201006

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)200901-201001

main90179-06171iADE15#,NDE150,ZRE151200702-200812

46441ANUT, WIRE ADJUSTING, NO.2

main90179-06299iZZE150200702-201104

5806

8401

9011908A12

main90119-08A12

9167180614

main91671-80614

14 parts on this diagram · 5 diagrams in section
