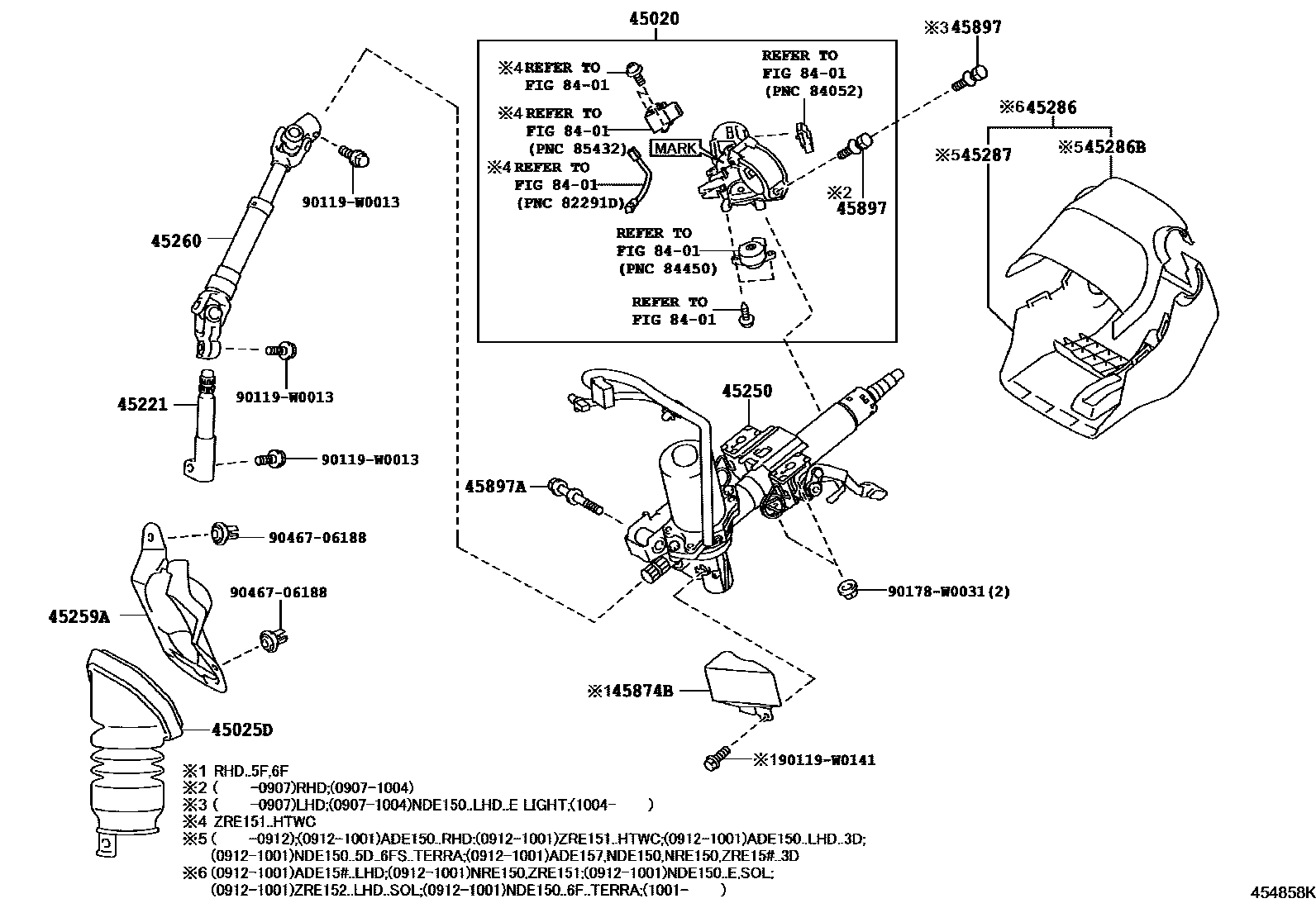

STEERING COLUMN & SHAFT

0001 1 0002 1STARTING SYSTEM-PUSH BUTTON 0003 1

45020BRACKET ASSY, STEERING COLUMN UPPER W/SWITCH

main45020-02170iZZE150..LHD200702-200903

main45020-02170iNDE150..LHD..(6F,6FS);ADE15#,NRE150,ZRE15#..LHD..(6F,6FS)..(DCRL,HTWC,HTWVM)200811-200907

MARK = 45020-0204

main45020-02230iNDE150..LHD..6F..TERRA;NDE150,ZRE152..LHD..(E,SOL);ADE15#,NRE150,ZRE151..LHD..MTM200912-201004

sub45020-02231

sub45897-12050

main45020-02230iADE15#,NDE150,NRE150,ZRE15#..LHD..MTM200907-201001

MARK = 45020-0203

sub45020-02231

sub45897-12050

main45020-02231iADE15#,NDE150,NRE150,ZRE15#..LHD..MTM201004

main45020-02240iZRE151..HTWC200909-201004

sub45020-02241

sub45897-12050

main45020-02241iZRE151..HTWC201004

main45020-02280iADE15#..RHD200702-201004

sub45020-02281

sub45897-12050

main45020-02281iNDE150,NRE150,ZRE151..RHD201004

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-02080iADE15#..RHD200702-201001

main45025-02090iNDE150..LHD..5D..6F..TERRA;NDE150..LHD..5D..(6F,6FS)..(E,SOL);ADE15#,NRE150,ZRE15#..LHD..5D..(6F,6FS)..(DCRL,HTWC,HTWVM)200702-201001

45221SHAFT, STEERING INTERMEDIATE

main45221-02050iZZE150200702-201001

45250COLUMN ASSY, STEERING

main45250-02670iADE15#,NDE150,ZRE151,ZZE150..RHD200702-200709

sub45250-02671

main45250-02671iADE15#,NDE150,ZRE151,ZZE150..RHD200710-200805

sub45250-02672

main45250-02672iNDE150,ZRE151..RHD200806-201101

sub45250-02673

main45250-02673iNDE150,NRE150,ZRE151..RHD201102

main45250-02690iADE15#,NDE150,ZRE151,ZZE150..LHD200702-200709

main45250-02691iADE15#,NDE150,ZRE151,ZZE150..LHD200710-200805

sub45250-02692

main45250-02692iZRE151..4FC;NDE150..5D..6FS..TERRA;NDE150..LHD..3D..(6F,6FS);ADE15#,NRE150,ZRE15#..LHD..3D..(6F,6FS)..(DCRL,HTWC,HTWVM)200806-201101

sub45250-02693

main45250-02693iADE15#,NDE150,NRE150,ZRE15#..LHD201102

main45250-02B20iZWE150..RHD201006-201102

sub45250-02B21

main45250-02B21iZWE150..RHD201103

main45250-02B30iZWE150..LHD201006-201101

sub45250-02B31

main45250-02B31iZWE150..LHD201102

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-02070iNDE150,ZRE151..RHD200702-201001

main45259-02080iNDE150..LHD..5D..6F..TERRA;NDE150..LHD..5D..(6F,6FS)..(E,SOL);ADE15#,NRE150,ZRE15#..LHD..5D..(6F,6FS)..(DCRL,HTWC,HTWVM)200702-201001

main45259-02160iZWE150..RHD201006

main45259-02170iZWE150..LHD201006

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-02070iNDE150,ZRE151..RHD200702-201001

main45260-02080iZZE150..LHD200702-201001

45286COVER, STEERING COLUMN

main45286-02935-B0iZWE150201012

DK.GRAY,TRIM1#

main45286-02936-B0iNDE150..6F..TERRA;ADE150,NRE150,ZRE151..TERRA200912

DK.GRAY,TRIM1#,4#

main45286-02936-B0iNDE150..6F..TERRA;ADE150,NRE150,ZRE151..TERRA200912

DK.GRAY,TRIM1#

45286BCOVER, STEERING COLUMN, UPR

main45286-02240-B0iZWE150201006-201012

DK.GRAY,TRIM1#

main45286-02250-B0iZZE150..5D..SOL;ZZE150..LHD..3D..SOL200702-200903

DK.GRAY,TRIM0#,1#,4#

main45286-02250-B0iZZE150..TERRA200702-201001

DK.GRAY,TRIM1#

main45286-02250-B0iZZE150..TERRA200702-201001

DK.GRAY,TRIM1#,4#

45287COVER, STEERING COLUMN, LWR

main45287-02230-B0iZWE150201006-201012

DK.GRAY,TRIM1#

main45287-02240-B0iZZE150..TERRA200702-200903

DK.GRAY,TRIM0#,1#,4#

main45287-02240-B0iZZE150..TERRA200702-201001

DK.GRAY,TRIM1#,4#

main45287-02240-B0iZZE150..5D..SOL;ZZE150..LHD..3D..SOL200702-201001

DK.GRAY,TRIM1#

45874BPROTECTOR, STEERING COLUMN, NO.1

main45874-0F010iADE157,NDE150,NRE150,ZRE15#..RHD..5D..6F200807-201001

main45874-12090iADE15#,NDE150,ZRE151,ZZE150..RHD..(5F,6F)200702-200806

45897BOLT, STEERING LOCK SET

main45897-12020iADE15#..LHD200702-200903

STARTING SYSTEM-PUSH BUTTON

main45897-12020iNDE150..LHD..(6F,6FS);ADE15#,NRE150,ZRE15#..LHD..(6F,6FS)..(DCRL,HTWC,HTWVM)200702-200907

main45897-12050iADE15#..RHD200702-201003

45897ABOLT, TILT STEERING PAWL SET

main45897-20020iADE15#200807-201001

main45897-42010iADE15#,NDE150,ZRE151,ZZE150200702-200806

8401

90119W0013

main90119-W0013

90119W0141

main90119-W0141

90178W0031

main90178-W0031

9046706188

main90467-06188

17 parts on this diagram · 3 diagrams in section
