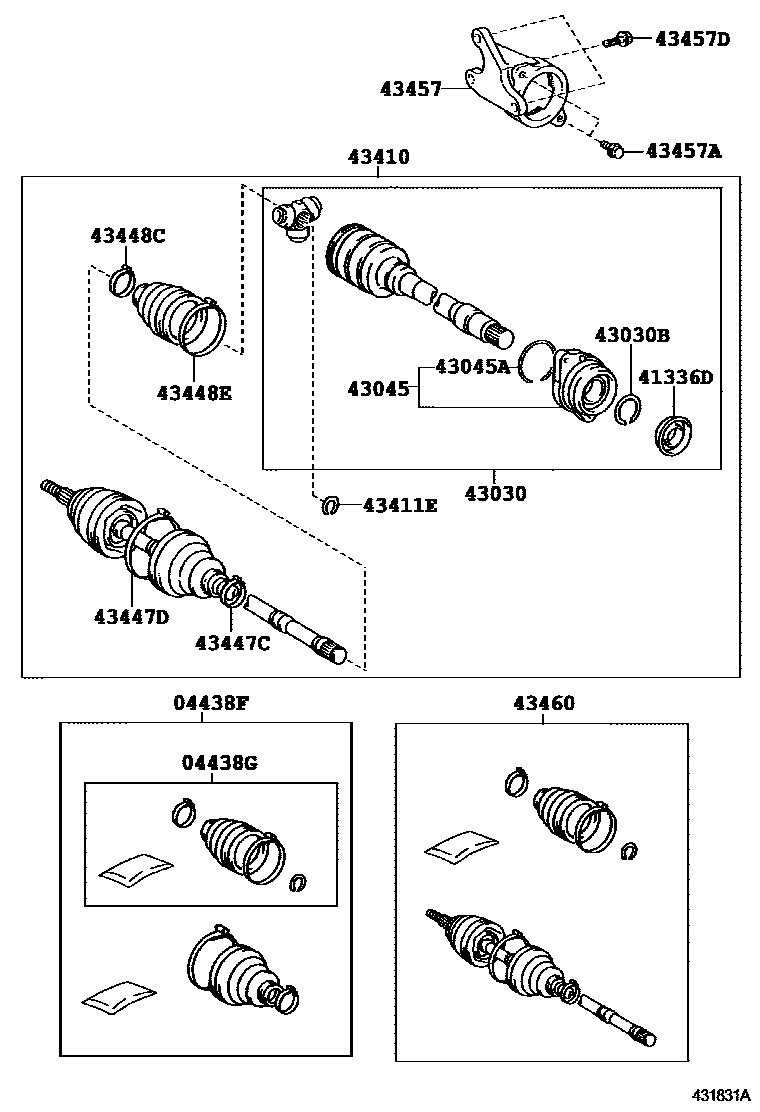

FRONT DRIVE SHAFT

0001 1RH 0002 1LH 0003 1RH 0004 1RH 0005 1LH 0006 1LH 0007 1

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-02410iADE15#200702-201007

sub04427-02411

main04427-02411iADE15#201007

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-02280iNDE150,ZRE15#..3D;NDE150..5D..6FS..TERRA200702-201001

main04437-02290iNRE150..5D200702-201001

main04437-05070iADE157..5D;ADE150..LHD..5D200702-201001

main04437-47031iZWE150¥6,700201006

sub04437-47032¥6,700

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-05010iZZE150200702-201001

main41336-05100iADE15#..LHD200702-201001

main41336-05140iZRE15#..5D..HTWVM;NDE150..5D..(E,SOL);NDE150..5D..6F..TERRA¥380200702-201001

main41336-12020iZWE150¥330201006

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-05200iADE15#..LHD200702-201001

main43040-02030iZRE151¥10,000200702-201001

main43040-05110iZRE151..HTWVM;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA200702-201001

main43040-47010iZWE150¥18,300201006

43030BRING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH)

main43425-05050iADE157..3D;ADE150..RHD;ADE150..LHD..3D200702-201001

main90080-52055iNDE150,ZRE15#..3D;NDE150..5D..6FS..TERRA¥90200702-201001

main90080-52056iZZE150¥100200702-201001

main90521-33002iZWE150¥100201006

43045CASE SUB ASSY, DRIVE SHAFT BEARING

main43045-64020iADE157..3D;ADE150..RHD;ADE150..LHD..3D¥4,940200702-201001

43045ARING, SNAP (FOR CASE SUB ASSY, DRIVE SHAFT BEARING)

main90520-69002iADE157..5D;ADE150..LHD..5D¥100200702-201001

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-02570iNRE150..5D200702-201110

sub43410-02571¥68,900

main43410-02571iNRE150,ZRE151..HTWC¥68,900201111

main43410-02580iZRE151..HTWVM;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA¥82,800200702-201110

sub43410-02581

main43410-02581iNDE150,ZRE15#..MTM201111

main43410-02590iADE157..3D;ADE150..RHD;ADE150..LHD..3D200702-201006

sub43410-02591

main43410-02591iADE15#201007

main43410-12B30iZWE150¥59,200201006

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-05040iADE157..5D;ADE150..LHD..5D200702-201001

main43425-12070iZWE150¥40201006

main90080-52093iZRE151..4FC;NDE150..5D..6FS..TERRA;NDE150,NRE150,ZRE15#..3D..(6F,6FS)¥120200702-201001

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-05140iZZE150¥250200702-201001

main42345-05280iADE157..5D;ADE150..LHD..5D200702-201001

main42345-12230iZWE150¥220201006

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-02220iZZE150200702-201001

main42345-05270iADE157..3D;ADE150..RHD;ADE150..LHD..3D¥680200702-201001

main42345-12240iZWE150¥340201006

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-02240iNRE150,ZRE151;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA¥260200702-201001

main42345-05250iADE157..3D;ADE150..RHD;ADE150..LHD..3D200702-201001

main42345-12230iZWE150¥220201006

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-05030iZRE151..4FC;NDE150..5D..6FS..TERRA;NDE150,NRE150,ZRE15#..3D..(6F,6FS)200702-201001

main42345-05210iADE157..3D;ADE150..RHD;ADE150..LHD..3D200702-201001

main42345-12180iZWE150¥330201006

43457BRACKET, DRIVE SHAFT BEARING

main43457-05050iADE15#200702-201001

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90105-10361iADE15#¥110200702-201001

*10-1.25PX22-19.5

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90105-10381iADE15#¥100200702-201001

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-09R20iNRE150,ZRE151..HTWC200702-201111

sub43460-09R21

main43460-09R21iNRE150,ZRE151..HTWC201111

main43460-09R30iZRE15#..5D..HTWVM;NDE150..5D..(E,SOL);NDE150..5D..6F..TERRA200702-201111

sub43460-09R31

main43460-09R31iNDE150,ZRE15#..MTM201111

main43460-80124iZWE150¥59,500201006

sub43460-80174¥59,500

main43470-09S90iADE15#200702-201007

sub43470-09S91

main43470-09S91iADE15#201007

17 parts on this diagram · 7 diagrams in section
