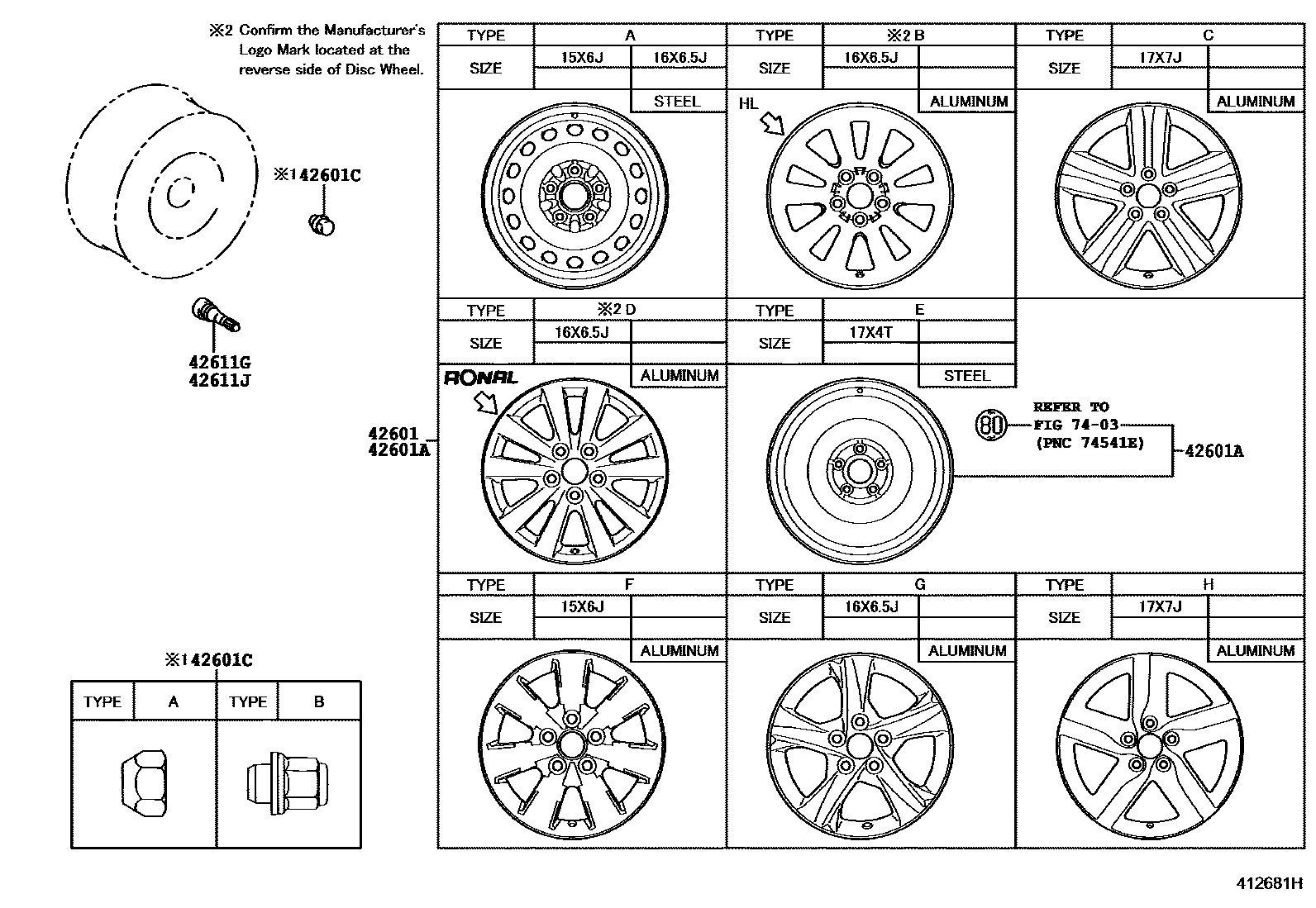

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
15X6J, #,TYPE A:REFER ILLUST.
main42611-02750×4supersedes 42611-02740iZRE151..4FC;ADE150..RHD..DCRL;ZRE15#..3D..HTWVM;ADE150..LHD..3D..DCRL;NDE150,NRE150..3D..(6F,6FS)..SOL200811-201001
16X6.5J, #,TYPE A:REFER ILLUST.
17X7J, #,TYPE C:REFER ILLUST.
main42611-02C60×4iZRE152..LHD..SOL;ADE150..LHD..5D..SOL;NDE150,ZRE151..SOL..(DCRL,HTWVM)200912-201210
17X7J, #,TYPE H:REFER ILLUST.
17X7J, #,TYPE J:REFER ILLUST.
15X6J, #,TYPE I:REFER ILLUST.
17X7J, #,TYPE J:REFER ILLUST.
16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI&SPARE TIRE-GROUND(STEEL WHEEL 205/55R16),TYPE B:REFER ILLUST.
main42611-02790×4supersedes 42611-02750iADE150..RHD..DCRL;ADE150..LHD..3D..DCRL;NDE150..5D..6FS..TERRA;NDE150,NRE150,ZRE15#..3D..(6F,6FS)200811-201001
16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI,TYPE D:REFER ILLUST.
15X6J, #,TIRE & DISC WHEEL-195/65R15 6J ALUMI,TYPE F:REFER ILLUST.
main42611-02C50×4iADE150..LHD;NDE150..SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151..MTM200912-201305
16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI&SPARE TIRE-GROUND TIRE(STEEL WHEEL 205/55R16),TYPE G:REFER ILLUST.
16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI,TYPE K:REFER ILLUST.
16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI&SPARE TIRE-GROUND TIRE(STEEL WHEEL 205/55R16),TYPE L:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
16X6.5J, #,TYPE A:REFER ILLUST.
main42611-0F090iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NRE150,ZRE15#..5D..(6F,6FS);NDE150..5D..(6F,6FS)..(E,SOL)200811-200912
17X4T,TYPE E:REFER ILLUST.
sub42611-0F091
15X6J, #,TIRE & DISC WHEEL-195/65R15 6J STEEL,GENERAL COUNTRIES&SPARE TIRE-GROUNDTIRE(STEEL WHEEL 195/65R15),TYPE A:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TYPE A:REFER ILLUST.
TIRE & DISC WHEEL-205/55R16 6.5J ALUMI,TYPE B:REFER ILLUST.
42611GVALVE (FOR TUBELESS TIRE)
main90942-05009×4iZRE151..4FC;ADE150..RHD..DCRL;ADE150..LHD..3D..DCRL;NDE150..5D..6FS..TERRA;ADE157,NDE150,NRE150,ZRE15#..3D..(6F,6FS)200811-201001
42611JVALVE (FOR TUBELESS TIRE SPARE)
7403
6 parts on this diagram · 4 diagrams in section
