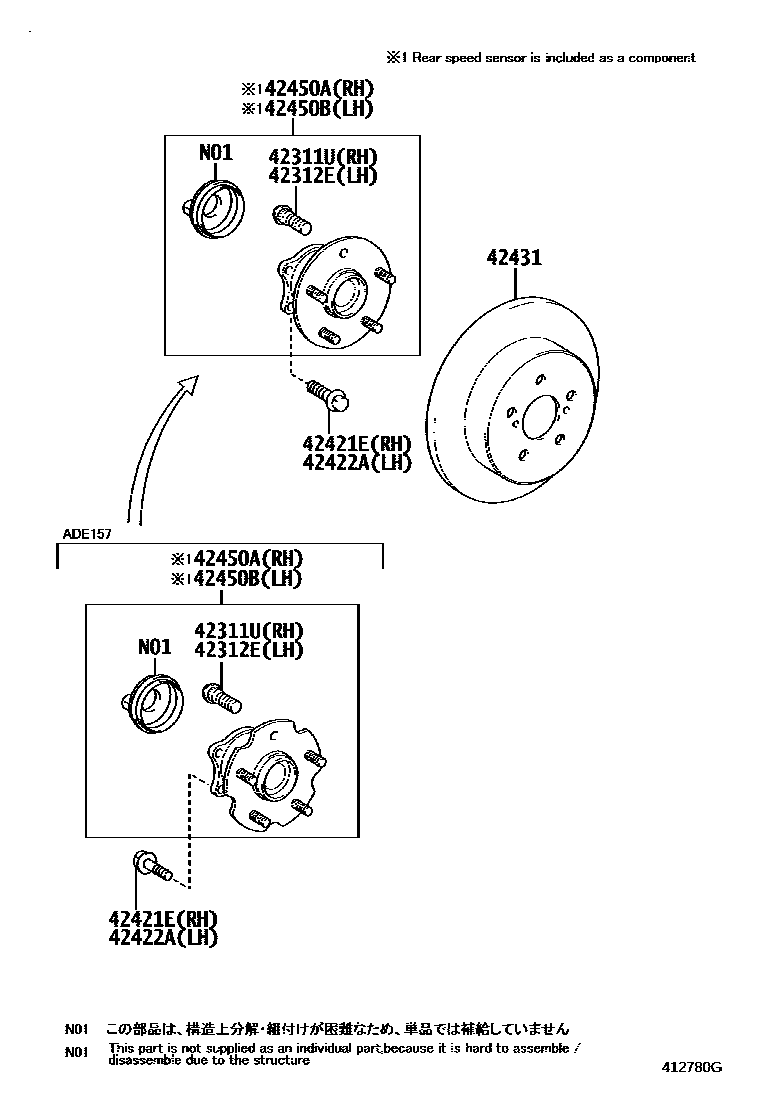

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049iZZE150¥240200702-201001

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049iZZE150¥240200702-201001

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12350iZZE150¥160200702-201001

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12350iZZE150¥160200702-201001

42431DISC, REAR

main42431-02170iADE150¥8,100200702-201305

main42431-02190iZWE150201006-201211

main42431-12280iADE157¥9,800200702-200809

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-02120iNDE150,ZRE151200702-201001

sub42450-02121

main42450-02250iZWE150201006

sub42450-02251

main42450-05080iADE157¥16,100200811-201001

sub42450-05081¥13,400

main42450-12110iADE157200702-200810

sub42450-05080¥16,100

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-02120iADE150200702-201001

sub42450-02121

main42450-02250iZWE150201006

sub42450-02251

main42450-05080iADE157..LHD¥16,100200811-201001

sub42450-05081¥13,400

main42450-12110iADE157200702-200810

sub42450-05080¥16,100

7 parts on this diagram · 1 diagram in section
