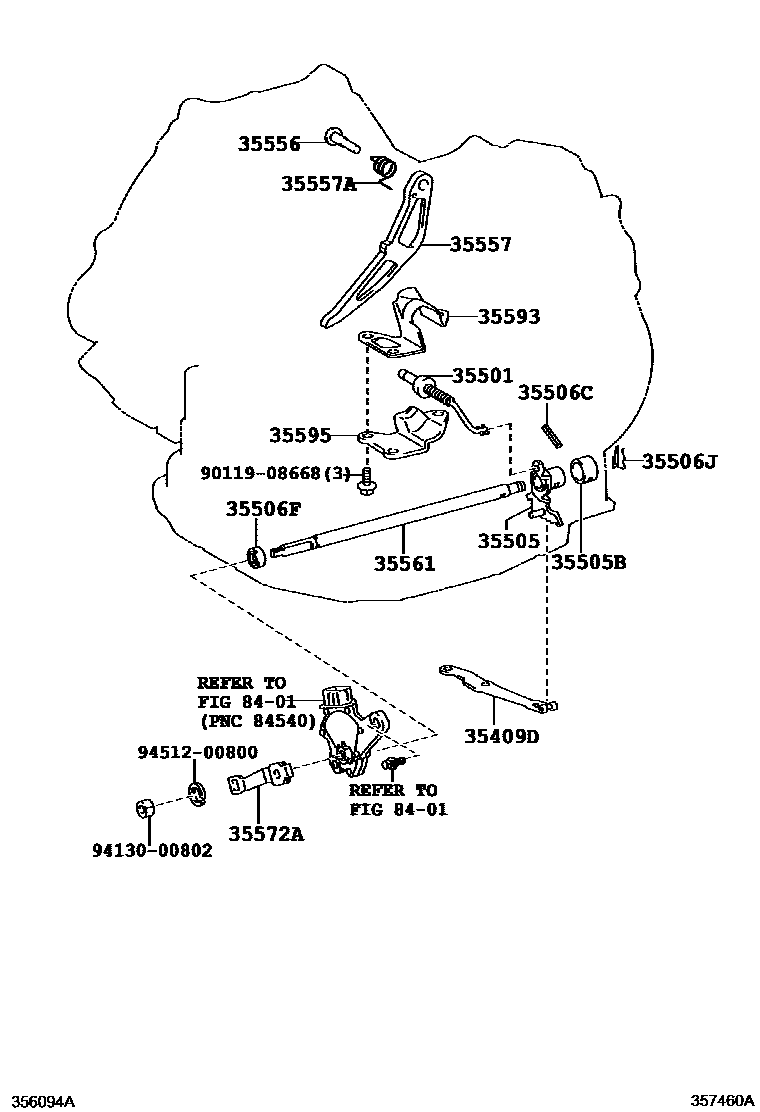

THROTTLE LINK & VALVE LEVER (ATM)

35409DSPRING SUB-ASSY, MANUAL DETENT

main35409-52020iZRE151..HTWC200909-201001

35501ROD SUB-ASSY, PARKING LOCK

main35501-52020iZRE151..HTWC200909-201101

sub35501-52021

main35501-52021iZRE151..HTWC201101

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-20030iZRE151..HTWC200909-201001

35505BSPACER (FOR MANUAL VALVE LEVER)

main90560-20006iZRE151..HTWC200909-201001

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iZRE151..HTWC200909-201001

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iZRE151..HTWC200909-201001

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-09001iZRE151..HTWC200909-201001

35556SHAFT, PARKING LOCK PAWL

main35556-32020iZRE151..HTWC200909-201001

35557PAWL, PARKING LOCK

main35557-52020iZRE151..HTWC200909-201106

sub35557-52021

main35557-52021iZRE151..HTWC201106

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90949-03089iZRE151..HTWC200909-201001

35561SHAFT, MANUAL VALVE LEVER

main35561-52020iZRE151..HTWC200909-201001

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-52030iZRE151..HTWC200909-201001

35593SLEEVE, CAM GUIDE

main35593-52010iZRE151..HTWC200909-201001

35595BRACKET, PARKING LOCK PAWL

main35595-52020iZRE151..HTWC200909-201001

8401

9011908668

main90119-08668

9413000802

main94130-00802

9451200800

main94512-00800

18 parts on this diagram · 1 diagram in section
