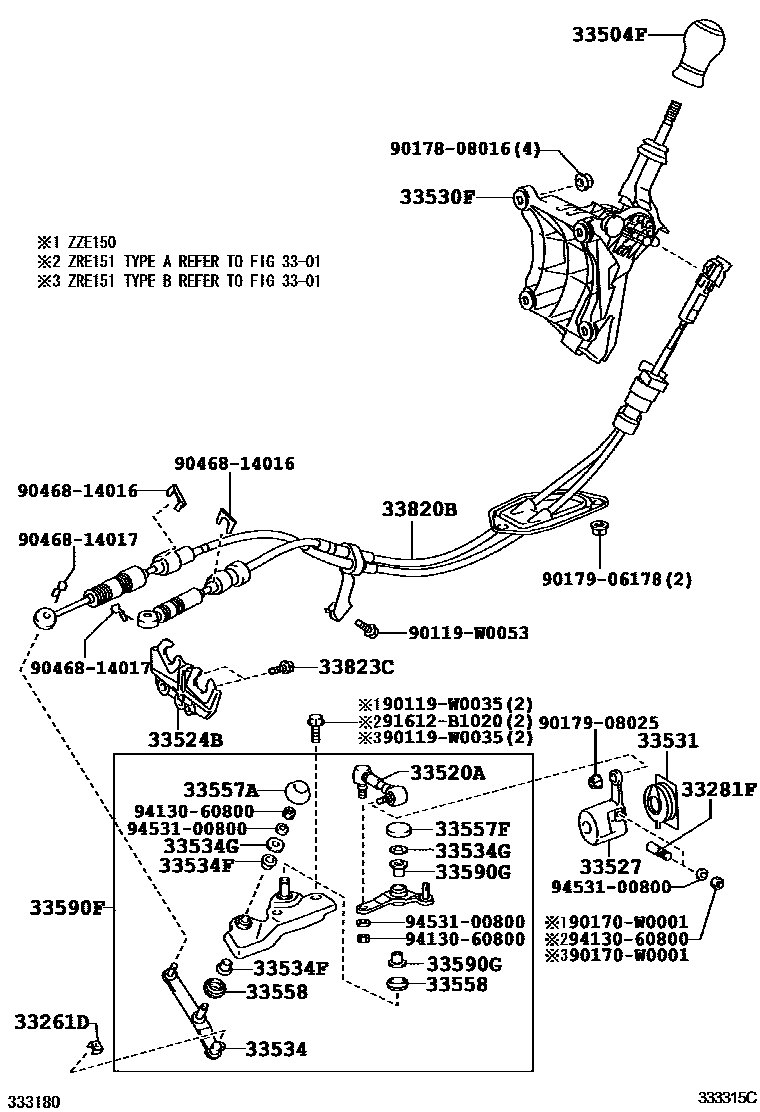

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

33261DBUSH (FOR SHIFT & SELECT LEVER)

main33557-33010iNDE150..5F200702-200902

TRANSMISSION T/P=C53

33281FPIN, LEVER LOCK (FOR FLOOR SHIFT)

main33281-16020iNDE150..5F200809-200902

TRANSMISSION T/P=C50

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-02120-B1iNDE150,ZRE151..5F..TERRA200702-200902

DK.GRAY,TRIM1#

main33504-02130-B1iNDE150,ZRE151..5F..SOL200702-200902

DK.GRAY,TRIM1#,4#

main33504-02140-B1iADE150..TERRA200702-200903

DK.GRAY,TRIM1#

main33504-02141-B1iADE150,NDE150,NRE150,ZRE151..6F..(E,TERRA)201002-201305

DK.GRAY,TRIM1#

main33504-02150-B1supersedes 33504-02140-B1iNDE150..6F..SOL;ADE15#,NRE150,ZRE15#..6F..SOL..(DCRL,HTWC,HTWVM)200811-201001

DK.GRAY,TRIM1#,4#

main33504-02151-B1supersedes 33504-02140-B1iADE157201002-201210

DK.GRAY,TRIM1#,4#

main33504-12280-B0iNDE150,ZRE151..5FS..TERRA200702-200902

DK.GRAY,TRIM1#

main33504-12290-B0iNDE150,ZRE151..(4FC,6FS)..SOL200902-201001

DK.GRAY,TRIM1#,4#

main33504-12290-B2supersedes 33504-12280-B0iZRE151..(4FC,6FS)..TERRA200912-201210

DK.GRAY & ORNAMENT SILVER,TRIM1#,4#

33520ASHAFT ASSY, FLOOR SHIFT CONTROL

main33520-52050iNDE150..5F200809-200902

TRANSMISSION T/P=C50

33524BBRACKET, CONTROL CABLE

main33524-12060iNDE150..5F200702-200902

main33524-12090iADE15#200702-200903

main33524-52050iZRE151..5F200702-200902

main33524-52060iZZE150200702-200811

33527LEVER, CONTROL SHIFT (FOR FLOOR SHIFT)

main33527-52011iZZE150200702-200811

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-02200iZZE150200702-200811

main33530-02210iADE15#200702-200903

main33530-02240iADE150..LHD..5D..DCRL;ADE157,NDE150,NRE150,ZRE15#..5D..6F200811-200912

33531BOOT, DUST (FOR CONTROL SHIFT LEVER)

main33531-17010iZZE150200702-200811

33534BELLCRANK, SELECTING

main33534-12120iZZE150200702-200811

main33534-12130iNDE150..5F200702-200902

TRANSMISSION T/P=C53

33534FBUSH (FOR SELECTING BELLCRANK NO.2)

main90386-12022×2iZZE150200702-200811

33534GWASHER, PLATE (FOR SELECTING BELLCRANK NO.2)

main90201-08028×2iZZE150200702-200811

33557ACOVER, SELECTING BELLCRANK DUST, NO.1

main33557-20010iADE157..3D;ADE150..RHD;ADE150..LHD..3D200903-201001

NO.2

main33557-32010iNDE150..5F200702-200902

TRANSMISSION T/P=C53

main33557-33010iADE15#200702-200903

NO.1

33557FCOVER, CONTROL BELLCRANK DUST (FOR FLOOR SHIFT)

main33557-20010iZZE150200702-200811

33558COVER, SELECTING BELLCRANK DUST, NO.2

main33558-10030×2iNDE150..5F200809-200902

TRANSMISSION T/P=C50

33590FCRANK ASSY, SELECTING BELL (FOR FLOOR SHIFT)

main33590-12070iZZE150200702-200811

main33590-12080iNDE150..5F200702-200902

TRANSMISSION T/P=C53

main33590-20040iADE157..3D;ADE150..RHD;ADE150..LHD..3D200903-201001

33590GBUSH (FOR SELECTING BELL CRANK)

main33546-20020×2iZZE150200702-200811

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-02450iZZE150200702-200811

main33820-02460iNDE150..5F200702-200902

main33820-02470iZRE151..5F200702-200902

main33820-02490iADE157..5D;ADE150..LHD..5D200903-200912

main33820-02670iNRE150..5D200811-200912

main33820-02680iZRE152..LHD..SOL;NDE150,ZRE151..6F200912-201210

main33820-12B60iZRE151..HTWC200909-201001

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-12280iZRE151..HTWC201001-201211

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-08C60×3iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201001

*201

main90119-W0027×3iZRE151..HTWC200909-201001

main90119-W0178×2iNDE150,ZRE151..5F200702-200902

main91611-G0820×3iADE15#..LHD200912-201210

90119W0035

main90119-W0035

90119W0053

main90119-W0053

90170W0001

main90170-W0001

9017808016

main90178-08016

9017906178

main90179-06178

9017908025

main90179-08025

9046814016

main90468-14016

9046814017

main90468-14017

91612B1020

main91612-B1020

9413060800

main94130-60800

9453100800

main94531-00800

30 parts on this diagram · 8 diagrams in section
