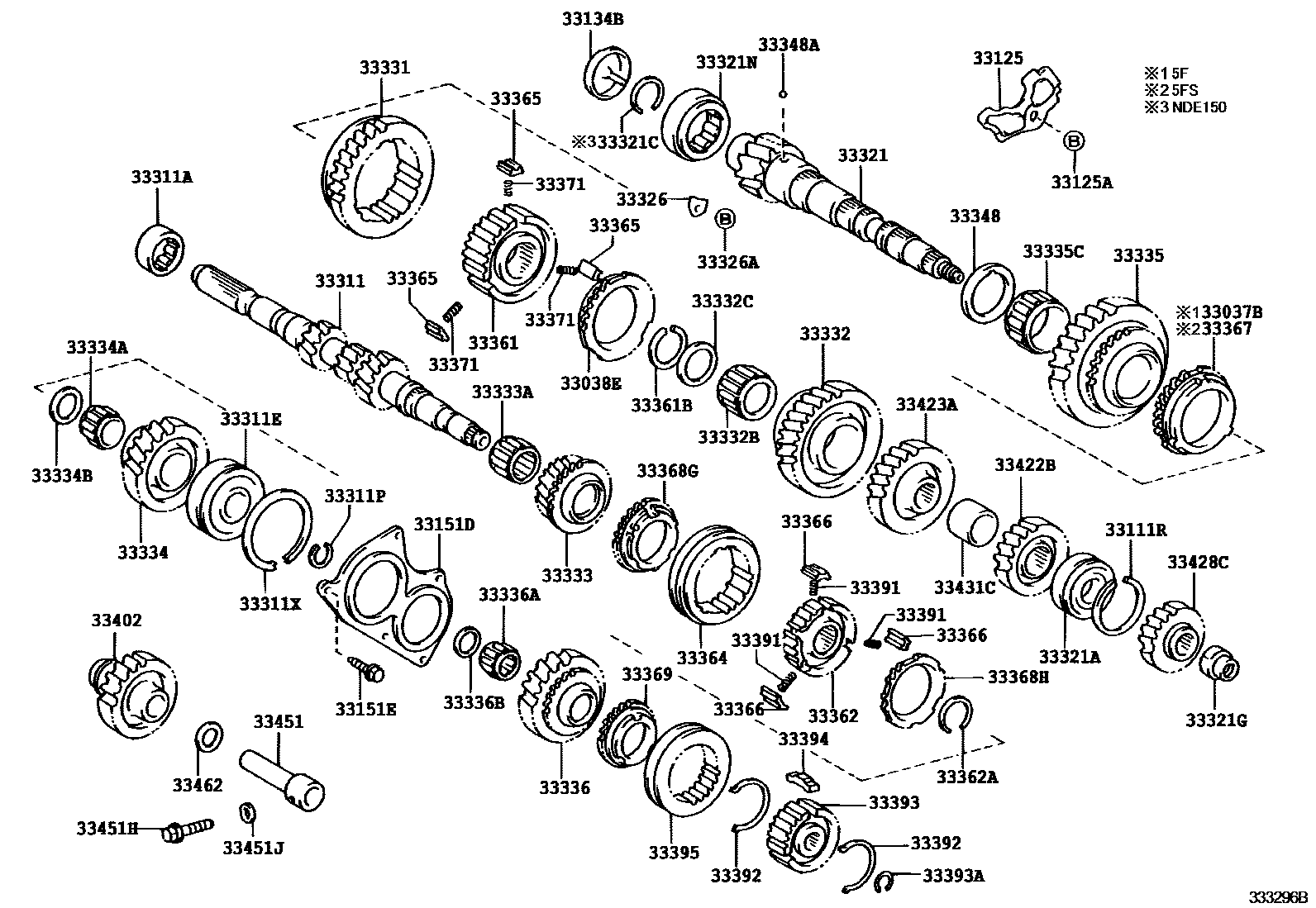

TRANSMISSION GEAR (MTM)

0001 1C50,C53,C50A,C53A 0002 1EA60,EA61 0003 1EC60,EC65,EC60A,EC65A

33037BRING SET, SYNCHRONIZER, NO.1

main33037-05020iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201305

*202

sub33037-20100

main33037-12040iNDE150..5F200702-200902

C53

main33037-12040iNDE150..5F200809-200902

C50

main33037-12040iZZE150200702-200811

main33037-20060iADE15#200702-201210

main33037-20100iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200912-201305

*201,*206

main33037-20100iNDE150,NRE150,ZRE151..6F..(SOL,TERRA)200811-201001

*206

main33037-20100iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201001

*201

main33037-20100iNDE150..E;NDE150,ZRE151..6FS200902-201210

33038ERING SET, SYNCHRONIZER, NO.2

main33038-12020iNDE150..5F200809-200902

C50

main33038-12020iZRE151..5F200702-200902

C53

main33038-12020iZZE150200702-200811

main33038-17010iNDE150,ZRE151..5FS200702-200902

33111RRING, HOLE SNAP(FOR OUTPUT SHAFT REAR BEARING)

main90520-57002iZRE151;NDE150..5FS200702-200902

C53

main90520-57002iZZE150200702-200811

main90520-57002iNDE150..5F200809-200902

C50

33125RECEIVER, MANUAL TRANSAXLE CASE

main33125-12011iNDE150..5F200702-200902

C53

main33125-12011iZZE150200702-200811

main33125-12011iNDE150..5F200809-200902

C50

33125ABOLT(FOR TRANSAXLE CASE RECEIVER)

main91611-B0812iNDE150..5F200702-200902

C53

main91611-B0812iZZE150200702-200811

main91611-B0812iNDE150..5F200809-200902

C50

33134BCOVER, OUTPUT SHAFT(MTM)

main33134-0D050iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)201103-201305

*202

main33134-12022iNDE150..5F200702-200902

C53

main33134-12022iZZE150200702-200811

main33134-12022iNDE150..5F200809-200902

C50

main33134-20020iADE15#200702-201210

main33134-20040iNDE150,NRE150,ZRE151..6F..(SOL,TERRA)200811-201001

*202,*206

main33134-20040iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201001

*201

main33134-20040iNDE150..E;NDE150,ZRE151..6FS200902-201210

main33134-20040iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200912-201103

*202

main33134-20040iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200912-201305

*201,*206

33151DRETAINER, BEARING, REAR(MTM)

main33151-52010iNDE150..5F200702-200902

C53

main33151-52010iNDE150..5F200809-200902

C50

main33151-52010iZZE150200702-200811

33151EBOLT(FOR REAR BEARING RETAINER)

main90119-08944iNDE150..5F200702-200902

C53

main90119-08944iNDE150..5F200809-200902

C50

main90119-08944iZZE150200702-200811

33311SHAFT, INPUT

main33311-02020iZRE151,ZZE150..5F200702-200811

C53,(L)

sub33311-12230

main33311-02020iZRE151,ZZE150..5F200702-200811

(L)

sub33311-12230

main33311-05030iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200811-201305

*202

sub33311-05031

main33311-12230iNDE150..5F200702-200902

C53,(J)

sub33311-12231

main33311-12230iZZE150200702-200902

(J)

sub33311-12231

main33311-12230iNDE150..5F200809-200902

C50

sub33311-12231

main33311-12280iNDE150..E200905-201210

sub33311-12281

main33311-12280iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200811-201305

*206

sub33311-12281

main33311-20230iADE15#..LHD200702-201112

sub33311-20231

main33311-20231iADE15#201112-201210

sub33311-20232

main33311-20240iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200811-201305

*201

sub33311-20241

main33311-20240iNDE150,ZRE151..6FS200902-201210

sub33311-20241

33311ABEARING (FOR INPUT SHAFT FRONT)

main90080-37020iNDE150..5F200702-200902

TYPE B:REFER 33-01

sub90365-25021

main90080-37020iZZE150200702-200811

sub90365-25021

main90080-37020iZRE151..5F200702-200902

C53

sub90365-25021

main90363-25081iNDE150,NRE150,ZRE151..6F..(SOL,TERRA)200811-201001

*201

main90363-25081iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200912-201305

*201,*206

main90363-25081iNDE150..E;ZRE151..6FS;NDE150..6FS..SOL200902-201210

main90363-25081iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201001

*206

main90363-W0010iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200811-201305

*202

sub90363-W0015

main90365-25021iZRE151..3D..5F200712-200902

TYPE A:REFER 33-01

main90365-25021iNDE150..5F200809-200902

C50

main90365-25021iNDE150,ZRE151..5FS200702-200902

main90365-30032iADE15#200702-201210

33311EBEARING, RADIAL BALL (FOR INPUT SHAFT REAR)

main90080-36138iNDE150..5F200702-200902

TYPE B:REFER 33-01

sub90363-25048

main90080-36138iZZE150200702-200811

sub90363-25048

main90080-36138iZRE151..5F200702-200902

C53

sub90363-25048

main90363-25048iNDE150..5F200809-200902

C50

sub90363-25091

main90363-25048iNDE150..5FS200702-200902

sub90363-25091

main90363-25068iZRE151..3D..5F200712-200902

TYPE A:REFER 33-01

sub90363-25092

main90363-25068iZRE151..5FS200702-200902

sub90363-25092

main90363-28014iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201001

*201

sub90363-28016

main90363-28014iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201001

*206

sub90363-28016

main90363-28014iNDE150..E;ZRE151..6FS;NDE150..6FS..SOL200902-201210

sub90363-28016

main90363-28014iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200912-201305

*201,*206

sub90363-28016

main90363-32048iADE15#..LHD200702-201112

sub90363-32053

main90363-32053iADE15#201112-201210

main90363-W0011iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200811-201305

*202

sub90363-W0013

33311PRING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING)

main90520-22006iNDE150..5F200702-200902

T=2.29-2.34,MARK A,C53

main90520-22006iZZE150200702-200902

T=2.29-2.34,MARK A

main90520-22006iNDE150..5F200809-200902

T=2.29-2.34,MARK A,C50

main90520-22007iZRE151;NDE150..5FS200702-200902

T=2.35-2.40,MARK B,C53

main90520-22007iZRE151;NDE150..5FS200702-200902

T=2.35-2.40,MARK B

main90520-22007iNDE150..5F200809-200902

T=2.35-2.40,MARK B,C50

main90520-22008iZZE150200702-200902

T=2.41-2.46,MARK C

main90520-22008iNDE150..5F200809-200902

T=2.41-2.46,MARK C,C50

main90520-22008iNDE150..5F200702-200902

T=2.41-2.46,MARK C,C53

main90520-22009iNDE150..5F200702-200902

T=2.47-2.52,MARK D,C53

main90520-22009iNDE150..5F200702-200902

T=2.47-2.52,MARK D

main90520-22009iNDE150..5F200809-200902

T=2.47-2.52,MARK D,C50

main90520-22010iNDE150..5F200702-200902

T=2.53-2.58,MARK E,C53

main90520-22010iNDE150..5F200702-200902

T=2.53-2.58,MARK E

main90520-22010iNDE150..5F200809-200902

T=2.53-2.58,MARK E,C50

main90520-22011iNDE150..5F200702-200902

T=2.59-2.64,MARK F,C53

main90520-22011iNDE150..5F200702-200902

T=2.59-2.64,MARK F

main90520-22011iNDE150..5F200809-200902

T=2.59-2.64,MARK F,C50

main90520-72007iADE15#200702-201001

33311XRING, HOLE SNAP (FOR INPUT SHAFT REAR BEARING)

main90520-64002iZZE150200702-200811

main90520-64002iNDE150..5F200702-200902

C53

main90520-64002iNDE150..5F200809-200902

C50

33321SHAFT, OUTPUT

main33321-02040iZZE150200702-200811

sub33321-12190

main33321-02040iZRE151..5F200702-200902

TYPE B:REFER 33-01

sub33321-12190

main33321-02120iNDE150..6F..(SOL,TERRA)200902-201210

*202

sub33321-02121

sub90366-W0028

main33321-05040iNDE150..5F200702-200811

C53,(L)

sub33321-12210

main33321-05050iZRE152..LHD..SOL200902-201210

*202

sub33321-05051

sub90366-W0028

main33321-05060iNRE150,ZRE151..6F200811-201303

*202

sub33321-05061

sub90366-W0028

main33321-05061iNRE150201303-201305

*202

main33321-12190iZRE151..5FS200702-200902

sub33321-12191

main33321-12190iZRE151..3D..5F200712-200902

TYPE A:REFER 33-01

sub33321-12191

main33321-12210iNDE150..5FS200706-200902

sub33321-12211

main33321-12210iNDE150..5F200811-200902

C53

sub33321-12211

main33321-12210iNDE150..5F200809-200902

C50

sub33321-12211

main33321-12300iNDE150..6F..(SOL,TERRA)200902-201210

*206

sub33321-12301

sub90366-28019

main33321-12310iZRE152..LHD..SOL200902-201210

*206

sub33321-12311

sub90366-28019

main33321-12320iNRE150,ZRE151..6F200811-201305

*206

sub33321-12321

sub90366-28019

main33321-17020iNDE150..5FS200702-200706

sub33321-12210

main33321-17020iNDE150..5F200702-200811

C53,(J)

sub33321-12210

main33321-20210iADE15#..LHD200702-201210

main33321-20220iZRE152200910-201210

*201

sub33321-20221

sub90366-28019

main33321-20230iZRE151..6FS200902-201210

sub33321-20231

sub90366-28019

main33321-20230iNRE150,ZRE151..6F200811-201305

*201

sub33321-20231

sub90366-28019

main33321-52260iNDE150..E200905-201210

sub33321-52261

sub90366-28019

main33321-74020iNDE150..6F..(SOL,TERRA)200902-201210

*201

sub33321-74021

sub90366-28019

33321ABEARING (FOR OUTPUT SHAFT REAR)

main90363-32047iADE15#..LHD200702-201210

main90363-W0007iNDE150..5F200704-200902

TYPE B:REFER 33-01

sub90363-25060

main90363-W0007iNDE150..5F200704-200902

C53

sub90363-25060

main90363-W0007iZZE150200704-200811

sub90363-25060

main90363-W0009iNDE150..5F200702-200704

C53

main90366-30096iNDE150..E;ZRE151..6FS;NDE150..6FS..SOL200902-201210

main90366-30096iZRE152200811-201001

*201

main90366-30096iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201001

*206

main90366-30096iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200912-201305

*201,*206

main90366-W0016iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-200909

*202

sub90366-W0025

main90366-W0025iNRE150200909-201305

*202

main90903-63010iZRE151..5D..5F200712-200902

TYPE A:REFER 33-01

sub90363-25060

main90903-63010iNDE150,ZRE151..5FS200702-200902

sub90363-25060

main90903-63010iNDE150..5F200809-200902

C50

sub90363-25060

33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)

main90520-30002iNDE150..5F200702-200902

T=1.95-1.99,MARK 1,C50

main90520-30002iNDE150..5F200702-200902

T=1.95-1.99,MARK 1,C53

main90520-30003iNDE150..5F200702-200902

T=2.00-2.04,MARK 2,C50

main90520-30003iNDE150..5FS200702-200902

T=2.00-2.04,MARK 2,C53

main90520-30004iNDE150..5FS200702-200902

T=2.05-2.09,MARK 3,C50

main90520-30004iNDE150..5FS200702-200902

T=2.05-2.09,MARK 3,C53

main90520-30005iNDE150..5F200702-200902

T=2.10-2.14,MARK 4,C53

main90520-30005iNDE150..5FS200702-200902

T=2.10-2.14,MARK 4,C50

main90520-30006iNDE150..5FS200702-200902

T=2.15-2.19,MARK 5,C50

main90520-30006iNDE150..5FS200702-200902

T=2.15-2.19,MARK 5,C53

main90520-30007iNDE150..5FS200702-200902

T=2.20-2.24,MARK 6,C53

main90520-30007iNDE150..5F200702-200902

T=2.20-2.24,MARK 6,C50

main90520-30032iNDE150..5F200702-200902

T=1.85-1.89,MARK 7,C50

main90520-30032iNDE150..5FS200702-200902

T=1.85-1.89,MARK 7,C53

main90520-30033iNDE150..5FS200702-200902

T=1.90-1.94,MARK 8,C53

main90520-30033iNDE150..5F200702-200902

T=1.90-1.94,MARK 8,C50

main90520-30035iADE15#..LHD200702-201001

T=1.85,MARK B

main90520-30036iADE15#200702-201001

T=1.90,MARK C

main90520-30037iADE15#..LHD200702-201001

T=1.95,MARK D

main90520-30038iADE15#200702-201001

T=2.00,MARK E

main90520-30214iADE15#200702-201001

T=2.05,MARK 0

main90520-30215iADE15#200702-201001

T=2.10,MARK 1

main90520-30216iADE15#200702-201001

T=2.15,MARK 2

33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)

main90179-18005iZRE151;NDE150..5FS200702-200902

C53

main90179-18005iNDE150..5F200809-200902

C50

main90179-18005iZZE150200702-200811

33321NBEARING (FOR OUTPUT SHAFT FRONT)

main90080-37017iNDE150..5F200702-200902

C53

sub90365-33006

main90080-37021iZZE150200702-200811

sub90365-33005

main90080-37021iZRE151..5F200702-200902

TYPE B:REFER 33-01

sub90365-33005

main90365-33005iZRE151..3D..5F200712-200902

TYPE A:REFER 33-01

main90365-33005iZRE151..5FS200702-200902

main90365-33006iNDE150..5F200809-200902

C50

main90365-33006iNDE150..5FS200702-200902

main90365-36005iADE15#200702-201210

main90366-28016iNDE150..E;ZRE151..6FS;NDE150..6FS..SOL200902-201210

main90366-28016iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201001

*206

main90366-28016iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201001

*201

main90366-28016iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200912-201305

*201,*206

main90366-W0019iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-200909

*202

sub90366-W0022

main90366-W0022iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200909-201303

*202

main90366-W0028iNRE150201303-201305

*202

33326PLATE, BEARING LOCK

main33326-12010iNDE150..5F200702-200902

C53

main33326-12010iNDE150..5F200809-200902

C50

main33326-12010iZZE150200702-200811

main33326-20020iADE15#..LHD200702-201001

33326ABOLT (FOR BEARING LOCK PLATE)

main91611-B0812iNDE150..5F200702-200902

C53

main91611-B0812iZZE150200702-201001

main91611-B0812iNDE150..5F200809-200902

C50

33331GEAR, REVERSE

main33331-02010iNDE150..5F200702-200902

C53,(L)

sub33331-12070

main33331-02010iZZE150200702-200902

(L)

sub33331-12070

main33331-05030iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201305

*202

main33331-12060iNDE150,ZRE151..5FS200702-200902

main33331-12070iZRE151..5F200702-200902

C53,(J)

main33331-12070iNDE150..5F200702-200902

(J)

main33331-12070iNDE150..5F200809-200902

C50

main33331-20080iADE15#200702-201210

main33331-20090iNDE150,NRE150,ZRE151..6F..(SOL,TERRA)200811-201001

*206

main33331-20090iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201001

*201

main33331-20090iNDE150..E;NDE150,ZRE151..6FS200902-201210

main33331-20090iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200912-201305

*201,*206

33332GEAR, 2ND

main33332-02010iNDE150..5F200702-200902

C53,(L)

sub33332-12100

main33332-02010iZZE150200702-200902

(L)

sub33332-12100

main33332-05040iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201305

*202

sub33332-12170

main33332-12100iZRE151..5F200702-200902

C53,(J)

main33332-12100iZZE150200702-200902

(J)

main33332-12100iNDE150..5F200809-200902

C50

main33332-12140iNDE150,ZRE151..5FS200706-200902

main33332-12170iNDE150..E200905-201210

main33332-12170iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200811-201305

*206

main33332-20120iNDE150,ZRE151..5FS200702-200706

sub33332-12140

main33332-20150iADE15#200702-201210

sub33332-20151

main33332-20160iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200811-201305

*201

sub33332-12170

main33332-20160iNDE150,ZRE151..6FS200902-201210

sub33332-12170

33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)

main90080-36141iZZE150200702-200811

sub90364-32014

sub90560-32008

main90080-36141iZRE151..5F200702-200902

TYPE B:REFER 33-01

sub90364-32014

sub90560-32008

main90080-36141iZRE151..5F200702-200902

C53

sub90364-32014

sub90560-32008

main90364-32014iNDE150,ZRE151..5FS200702-200902

main90364-32014iZRE151..5D..5F200712-200902

TYPE A:REFER 33-01

main90364-32014iNDE150..5F200809-200902

C50

main90364-47011iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201001

*201

main90364-47011iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201001

*206

main90364-47011iNDE150..E;NDE150,ZRE151..6FS200902-201210

main90364-47011iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200912-201305

*201,*206

main90364-50004iADE15#200702-201210

main90364-W0006iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200811-201305

*202

sub90364-W0008

33332CSPACER (FOR 2ND GEAR BEARING)

main90080-56119iNDE150..5F200702-200902

C53

main90080-56119iZZE150200702-200811

main90080-56119iZRE151..5F200702-200902

TYPE B:REFER 33-01

main90560-32008iNDE150,ZRE151..5FS200702-200902

main90560-32008iZRE151..3D..5F200712-200902

TYPE A:REFER 33-01

main90560-32008iNDE150..5F200809-200902

C50

33333GEAR, 3RD

main33034-05020iNDE150..5F200702-200811

C53,(L)

sub33034-12150

main33034-05020iZZE150200702-200811

(L)

sub33034-12150

main33034-05020iZZE150200702-200811

TYPE B:SEE 33-01,(L)

sub33034-12150

main33034-05030iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201305

*202

main33034-12111iNDE150..5F200702-200811

(J)

sub33034-12150

main33034-12111iZZE150200702-200811

TYPE B:SEE 33-01,(J)

sub33034-12150

main33034-12111iZZE150200702-200811

C53,(J)

sub33034-12150

main33034-12150iZRE151..5D..5F200712-200902

TYPE A:REFER 33-01

main33034-12150iNDE150..5F200809-200902

C50

main33034-12150iZRE151..5F200811-200902

TYPE B:REFER 33-01

main33034-12150iZRE151..5F200811-200902

C53

main33034-12150iNDE150,ZRE151..5FS200702-200902

main33034-12220iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201305

*206

main33034-12220iNDE150..E200905-201210

main33034-20120iNDE150,ZRE151..6FS200902-201210

sub33034-12220

main33034-20120iZRE152200811-201305

*201

sub33034-12220

main33333-20100iADE157200702-201210

main33333-20110iADE150200702-201210

sub33333-64020

33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)

main90080-36142iZRE151..5F200702-200902

C53

sub90364-31002

main90080-36142iZZE150200702-200811

sub90364-31002

main90080-36142iZRE151..5F200702-200902

TYPE B:REFER 33-01

sub90364-31002

main90364-31002iNDE150,ZRE151..5FS200702-200902

main90364-31002iZRE151..5D..5F200712-200902

TYPE A:REFER 33-01

main90364-31002iNDE150..5F200809-200902

C50

main90364-36020iADE15#200702-200808

sub90364-36022

main90364-36022iADE15#..LHD200808-201210

main90364-37015iNDE150,NRE150,ZRE151..6F..(SOL,TERRA)200811-201001

*201

main90364-37015iNDE150..E;NDE150,ZRE151..6FS200902-201210

main90364-37015iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200912-201305

*201,*206

main90364-37015iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201001

*206

main90364-W0007iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200811-201305

*202

33334GEAR, 4TH

main33035-05030iZZE150200702-200811

(L)

sub33035-20161

main33035-05030iZZE150200702-200811

TYPE B:SEE 33-01,(L)

sub33035-20161

main33035-05030iZZE150200702-200811

C53,(L)

sub33035-20161

main33035-05050iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201305

*202

sub33035-05051

main33035-12140iZRE151..5D..5F200712-200902

TYPE A:REFER 33-01

sub33035-12180

main33035-12140iNDE150..5F200809-200902

C50

sub33035-12180

main33035-12140iZRE151..5F200811-200902

TYPE B:REFER 33-01

sub33035-12180

main33035-12140iZRE151..5F200811-200902

C53

sub33035-12180

main33035-12140iNDE150,ZRE151..5FS200706-200902

sub33035-12180

main33035-12160iNDE150..E200905-201210

main33035-12160iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201305

*206

main33035-20161iZZE150200702-200811

(J)

sub33035-12140

main33035-20161iZZE150200702-200811

TYPE B:SEE 33-01,(J)

sub33035-12140

main33035-20161iZZE150200702-200811

C53,(J)

sub33035-12140

main33035-20161iNDE150,ZRE151..5FS200702-200706

sub33035-12140

main33035-20210iNDE150,NRE150,ZRE151..6F..(SOL,TERRA)200811-201305

*201

sub33035-12160

main33035-20210iNDE150,ZRE151..6FS200902-201210

sub33035-12160

main33334-20060iADE15#200702-201210

sub33334-64030

33334ABEARING, NEEDLE ROLLER (FOR 4TH GEAR)

main90080-36161iNDE150..5F200702-200902

TYPE B:REFER 33-01

sub90364-29002

main90080-36161iZZE150200702-200811

sub90364-29002

main90080-36161iZRE151..5F200702-200902

C53

sub90364-29002

main90364-29002iNDE150,ZRE151..5FS200702-200902

main90364-29002iZRE151..5D..5F200712-200902

TYPE A:REFER 33-01

main90364-29002iNDE150..5F200809-200902

C50

main90364-37015iZRE152200811-201001

*201

main90364-37015iNDE150..E;ZRE151..6FS;NDE150..6FS..SOL200902-201210

main90364-37015iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201001

*206

main90364-37015iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200912-201305

*201,*206

main90364-42004iADE15#200702-200808

sub90364-42007

main90364-42007iADE15#200808-201210

main90364-W0007iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201305

*202

33334BSPACER (FOR 4TH GEAR BEARING)

main90560-29001iZZE150200702-200811

main90560-29001iNDE150..5F200702-200902

C53

main90560-29001iNDE150..5F200809-200902

C50

main90560-37004iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200912-201305

*201,*202,*206

main90560-37004iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201001

*202,*206

main90560-37004iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201001

*201

main90560-37004iNDE150..E;NDE150,ZRE151..6FS200902-201210

main90560-42002iADE15#..LHD200702-201210

33335GEAR, 1ST

main33032-12060iNDE150,ZRE151..5FS200702-200706

sub33032-12090

main33032-12090iNDE150,ZRE151..5FS200706-200902

sub33032-12130

main33335-02020iNDE150..5F200702-200902

C53,(L)

sub33335-12120

main33335-02020iZRE151..5F200702-200902

(L)

sub33335-12120

main33335-05030iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201305

*202

sub33335-12190

main33335-12120iZRE151..5F200702-200902

C53,(J)

sub33335-12200

main33335-12120iNDE150..5F200702-200902

(J)

sub33335-12200

main33335-12120iNDE150..5F200809-200902

C50

sub33335-12200

main33335-12190iNDE150..E200905-201210

main33335-12190iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201305

*206

main33335-20140iADE15#200702-201210

main33335-20160iNDE150,NRE150,ZRE151..6F..(SOL,TERRA)200811-201305

*201

sub33335-12190

main33335-20160iZRE151..6FS;NDE150..6FS..SOL200902-201210

sub33335-12190

33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)

main90080-36140iZZE150200702-200811

sub90364-38007

main90080-36140iZRE151..5F200702-200902

TYPE B:REFER 33-01

sub90364-38007

main90080-36140iZRE151..5F200702-200902

C53

sub90364-38007

main90364-38007iNDE150,ZRE151..5FS200702-200902

main90364-38007iZRE151..5D..5F200712-200902

TYPE A:REFER 33-01

main90364-38007iNDE150..5F200809-200902

C50

main90364-47009iADE15#200702-201210

main90364-47010iNDE150,NRE150,ZRE151..6F..(SOL,TERRA)200811-201001

*206

main90364-47010iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201001

*201

main90364-47010iNDE150..E;NDE150,ZRE151..6FS200902-201210

main90364-47010iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200912-201305

*201,*206

main90364-W0005iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200811-201305

*202

33336GEAR, 5TH

main33036-02020iNDE150..5F200702-200811

C53,(L)

sub33036-12120

main33036-05020iZRE151..5F200702-200811

(L)

sub33036-12130

main33036-05020iZZE150200702-200811

TYPE B:SEE 33-01,(L)

sub33036-12130

main33036-05030iZRE152..LHD..SOL;NRE150,ZRE151..6F200811-201305

*202

main33036-0D070iNDE150..6F..(SOL,TERRA)200902-201210

*202

main33036-12120iNDE150..5F200809-200902

C50

main33036-12120iNDE150..5F200811-200902

C53

main33036-12120iNDE150..5FS200706-200902

main33036-12130iZRE151..5FS200706-200902

main33036-12130iZRE151..5F200811-200902

TYPE B:REFER 33-01

main33036-12210iZRE152..LHD..SOL;NRE150,ZRE151..6F200811-201305

*206

main33036-12220iNDE150..6F..(SOL,TERRA)200902-201210

*206

main33036-12220iNDE150..E200905-201001

main33036-20060iNDE150..5FS200702-200706

sub33036-12120

main33036-20060iNDE150..5F200702-200811

C53,(J)

sub33036-12120

main33036-20070iZZE150200702-200811

TYPE B:SEE 33-01,(J)

sub33036-12130

main33036-20070iZRE151..5FS200702-200706

sub33036-12130

main33036-20070iZZE150200702-200811

(J)

sub33036-12130

main33036-20110iZRE152200811-201305

*201

sub33036-12210

main33036-20110iZRE151..6FS200902-201210

sub33036-12210

main33036-52060iNDE150..6FS..SOL200902-201210

*201

sub33036-12220

33336ABEARING, NEEDLE ROLLER (FOR 5TH GEAR)

main90080-36162iNDE150..5F200702-200902

TYPE B:REFER 33-01

sub90364-24006

main90080-36162iZZE150200702-200811

sub90364-24006

main90080-36162iZRE151..5F200702-200902

C53

sub90364-24006

main90364-24006iZRE151..3D..5F200712-200902

TYPE A:REFER 33-01

sub90364-24005

main90364-24006iNDE150,ZRE151..5FS200702-200902

sub90364-24005

main90364-24006iNDE150..5F200809-200902

C50

sub90364-24005

main90364-37015iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201001

*201

main90364-37015iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201001

*206

main90364-37015iNDE150..E;NDE150,ZRE151..6FS200902-201210

main90364-37015iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200912-201305

*201,*206

main90364-42004iADE15#200702-200808

sub90364-42007

main90364-42007iADE15#200808-201210

main90364-W0007iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201305

*202

33336BSPACER (FOR 5TH GEAR BEARING)

main90560-25006iZZE150200702-200811

main90560-25006iNDE150..5F200702-200902

C53

main90560-25006iNDE150..5F200809-200902

C50

main90560-42002iADE15#..LHD200702-201001

33348WASHER, 1ST GEAR THRUST

main33348-12010iNDE150..5F200702-200902

C53

main33348-12010iZZE150200702-200811

main33348-12010iNDE150..5F200809-200902

C50

33348APIN OR BALL (FOR 1ST GEAR THRUST WASHER)

main90080-36170iZZE150200702-200811

main90080-36170iZRE151..5F200702-200902

TYPE B:REFER 33-01

main90080-36170iZRE151..5F200702-200902

C53

main90360-05012iNDE150..5F200809-200902

C50

main90360-05012iNDE150,ZRE151..5FS200702-200902

main90360-05012iZRE151..5D..5F200712-200902

TYPE A:REFER 33-01

33361HUB, TRANSMISSION CLUTCH, NO.1

main33361-02020iZZE150200702-200902

(L)

sub33361-12080

main33361-02020iNDE150..5F200702-200902

C53,(L)

sub33361-12080

main33361-05030iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200811-201305

*202

main33361-12080iNDE150..5F200809-200902

C50

main33361-12080iZZE150200702-200902

(J)

main33361-12080iZRE151..5F200702-200902

C53,(J)

main33361-20060iADE15#200702-201210

main33361-20070iNDE150,NRE150,ZRE151..6F..(SOL,TERRA)200811-201001

*206

main33361-20070iNDE150,NRE150,ZRE151..6F..(SOL,TERRA)200811-201001

*201

main33361-20070iNDE150..E;NDE150,ZRE151..6FS200902-201210

main33361-20070iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200912-201305

*201,*206

main33361-52030iNDE150,ZRE151..5FS200702-200902

33361BRING, SHAFT SNAP (FOR CLUTCH HUB NO.1)

main90520-29018iZZE150200702-200902

T=2.50-2.55,MARK A

main90520-29018iNDE150..5F200809-200902

T=2.50-2.55,MARK A,C50

main90520-29018iZRE151;NDE150..5FS200702-200902

T=2.50-2.55,MARK A,C53

main90520-29019iNDE150..5F200702-200902

T=2.56-2.61,MARK B,C53

main90520-29019iZZE150200702-200902

T=2.56-2.61,MARK B

main90520-29019iNDE150..5F200809-200902

T=2.56-2.61,MARK B,C50

main90520-29020iNDE150..5F200702-200902

T=2.62-2.67,MARK C,C53

main90520-29020iNDE150..5F200702-200902

T=2.62-2.67,MARK C

main90520-29020iNDE150..5F200809-200902

T=2.62-2.67,MARK C,C50

main90520-29021iNDE150..5F200702-200902

T=2.68-2.73,MARK D

main90520-29021iNDE150..5F200809-200902

T=2.68-2.73,MARK D,C50

main90520-29021iNDE150..5F200702-200902

T=2.68-2.73,MARK D,C53

main90520-29022iZRE151;NDE150..5FS200702-200902

T=2.74-2.79,MARK E,C53

main90520-29022iZRE151;NDE150..5FS200702-200902

T=2.74-2.79,MARK E

main90520-29022iNDE150..5F200809-200902

T=2.74-2.79,MARK E,C50

main90520-29023iNDE150..5F200702-200902

T=2.80-2.85,MARK F,C53

main90520-29023iNDE150..5F200702-200902

T=2.80-2.85,MARK F

main90520-29023iNDE150..5F200809-200902

T=2.80-2.85,MARK F,C50

main90520-33030iADE15#200702-201001

T=2.25,MARK 1

main90520-33031iADE15#200702-201001

T=2.30,MARK 2

main90520-33032iADE15#200702-201001

T=2.35,MARK 3

main90520-33034iADE15#200702-201001

T=2.40,MARK 4

main90520-33035iADE15#200702-201001

T=2.45,MARK 5

main90520-33036iADE15#200702-201001

T=2.50,MARK 6

33362HUB, TRANSMISSION CLUTCH, NO.2

main33362-05020iZZE150200702-200811

(L)

sub33362-12040

main33362-05020iZRE151..5F200702-200902

TYPE B:SEE 33-01,(L)

sub33362-12040

main33362-05020iZRE151..5F200702-200902

C53,(L)

sub33362-12040

main33362-05030iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200811-201305

*202

sub33362-05031

main33362-12040iZRE151..5F200702-200902

TYPE B:SEE 33-01,(J)

sub33362-12050

main33362-12040iZRE151..5F200702-200902

C53,(J)

sub33362-12050

main33362-12040iNDE150,ZRE151..5FS200702-200712

sub33362-12050

main33362-12040iZZE150200702-200811

(J)

sub33362-12050

main33362-12050iZRE151..5D..5F200712-200902

TYPE A:REFER 33-01

sub33362-12051

main33362-12050iNDE150..5F200809-200902

C50

sub33362-12051

main33362-20030iADE15#200702-201210

main33362-20040iNDE150..E;NDE150,ZRE151..6FS200902-201210

sub33362-20041

main33362-20040iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201001

*201

sub33362-20041

main33362-20040iNDE150,NRE150,ZRE151..6F..(SOL,TERRA)200811-201001

*206

sub33362-20041

main33362-20040iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200912-201305

*201,*206

sub33362-20041

33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)

main90520-27046iNDE150..5F200702-200902

T=2.30-2.35,MARK 0

main90520-27046iNDE150..5F200809-200902

T=2.30-2.35,MARK 0,C50

main90520-27046iNDE150..5F200702-200902

T=2.30-2.35,MARK 0,C53

main90520-27047iNDE150..5F200702-200902

T=2.36-2.41,MARK 1,C53

main90520-27047iNDE150..5F200702-200902

T=2.36-2.41,MARK 1

main90520-27047iNDE150..5F200809-200902

T=2.36-2.41,MARK 1,C50

main90520-27048iNDE150..5F200809-200902

T=2.42-2.47,MARK 2,C50

main90520-27048iNDE150..5F200702-200902

T=2.42-2.47,MARK 2,C53

main90520-27048iNDE150..5F200702-200902

T=2.42-2.47,MARK 2

main90520-27049iNDE150..5F200809-200902

T=2.48-2.53,MARK 3,C50

main90520-27049iNDE150..5F200702-200902

T=2.48-2.53,MARK 3,C53

main90520-27049iNDE150..5F200702-200902

T=2.48-2.53,MARK 3

main90520-27050iNDE150..5FS;ZRE151,ZZE150200702-200902

T=2.54-2.59,MARK 4

main90520-27050iNDE150..5FS;ZRE151,ZZE150200702-200902

T=2.54-2.59,MARK 4,C53

main90520-27050iNDE150..5F200809-200902

T=2.54-2.59,MARK 4,C50

main90520-27051iNDE150..5F200809-200902

T=2.60-2.65,MARK 5,C50

main90520-27051iNDE150..5F200702-200902

T=2.60-2.65,MARK 5,C53

main90520-27051iNDE150..5F200702-200902

T=2.60-2.65,MARK 5

main90520-33030iADE15#200702-201210

T=2.25,MARK 1

main90520-33031iADE15#200702-201210

T=2.30,MARK 2

main90520-33032iADE15#200702-201210

T=2.35,MARK 3

main90520-33034iADE15#..LHD200702-201210

T=2.40,MARK 4

main90520-33035iADE15#..LHD200702-201210

T=2.45,MARK 5

main90520-33036iADE15#..LHD200702-201210

T=2.50,MARK 6

main90520-35034iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201001

T=2.27,MARK 0,*202,*206

main90520-35034iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201001

T=2.27,MARK 0,*201

main90520-35034iNDE150..E;ZRE151..6FS;NDE150..6FS..SOL200902-201210

T=2.27,MARK 0

main90520-35034iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200912-201305

T=2.27,MARK 0,*201,*202,*206

main90520-35035iNDE150..E;ZRE151..6FS;NDE150..6FS..SOL200902-201210

T=2.32,MARK 1

main90520-35035iNDE150,NRE150,ZRE151..6F..(SOL,TERRA)200811-201001

T=2.32,MARK 1,*201

main90520-35035iNDE150,NRE150,ZRE151..6F..(SOL,TERRA)200811-201001

T=2.32,MARK 1,*202,*206

main90520-35035iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200912-201305

T=2.32,MARK 1,*201,*202,*206

main90520-35036iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200912-201305

T=2.37,MARK 2,*201,*202,*206

main90520-35036iZRE152200811-201001

T=2.37,MARK 2,*201

main90520-35036iNDE150,NRE150,ZRE151..6F..(SOL,TERRA)200811-201001

T=2.37,MARK 2,*202,*206

main90520-35036iNDE150..E;ZRE151..6FS;NDE150..6FS..SOL200902-201210

T=2.37,MARK 2

main90520-35037iZRE152200811-201001

T=2.42,MARK 3,*201

main90520-35037iNDE150,NRE150,ZRE151..6F..(SOL,TERRA)200811-201001

T=2.42,MARK 3,*202,*206

main90520-35037iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200912-201305

T=2.42,MARK 3,*201,*202,*206

main90520-35037iNDE150..E;NDE150,ZRE151..6FS200902-201210

T=2.42,MARK 3

main90520-35038iNDE150..E;ZRE151..6FS;NDE150..6FS..SOL200902-201210

T=2.47,MARK 4

main90520-35038iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201001

T=2.47,MARK 4,*201

main90520-35038iNDE150,NRE150,ZRE151..6F..(SOL,TERRA)200811-201001

T=2.47,MARK 4,*202,*206

main90520-35038iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200912-201305

T=2.47,MARK 4,*201,*202,*206

main90520-35039iNDE150,NRE150,ZRE151..6F..(SOL,TERRA)200811-201001

T=2.52,MARK 5,*201

main90520-35039iNDE150..E;ZRE151..6FS;NDE150..6FS..SOL200902-201210

T=2.52,MARK 5

main90520-35039iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201001

T=2.52,MARK 5,*202,*206

main90520-35039iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200912-201305

T=2.52,MARK 5,*201,*202,*206

main90520-35040iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201001

T=2.57,MARK 6,*201

main90520-35040iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201001

T=2.57,MARK 6,*202,*206

main90520-35040iNDE150..E;NDE150,ZRE151..6FS200902-201210

T=2.57,MARK 6

main90520-35040iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200912-201305

T=2.57,MARK 6,*201,*202,*206

main90520-35041iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201001

T=2.62,MARK 7,*202,*206

main90520-35041iNDE150..E;NDE150,ZRE151..6FS200902-201210

T=2.62,MARK 7

main90520-35041iNDE150,NRE150,ZRE151..6F..(SOL,TERRA)200811-201001

T=2.62,MARK 7,*201

main90520-35041iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200912-201305

T=2.62,MARK 7,*201,*202,*206

33364SLEEVE, TRANSMISSION HUB, NO.2

main33364-05020iZRE151..5F200702-200902

(L)

sub33364-12050

main33364-05020iNDE150..5F200702-200902

C53,(L)

sub33364-12050

main33364-05030iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200811-201305

*202

main33364-12050iZZE150200702-200902

(J)

sub33364-12051

main33364-12050iNDE150,ZRE151..5FS200702-200901

sub33364-12051

main33364-12050iZRE151..5D..5F200712-200901

TYPE A:REFER 33-01

sub33364-12051

main33364-12050iNDE150..5F200809-200901

C50

sub33364-12051

main33364-12050iZRE151..5F200702-200902

C53,(J)

sub33364-12051

main33364-12051iZRE151..5F200901-200902

TYPE A:REFER 33-01

main33364-12051iZRE151..5F200901-200902

C50

main33364-12060iNDE150..E200905-201210

main33364-12060iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200811-201305

*206

main33364-20060iADE15#200702-201210

sub33364-20061

main33364-20070iZRE152200811-201305

*201

sub33364-12060

main33364-20070iNDE150,ZRE151..6FS200902-201210

sub33364-12060

33365KEY, SYNCHROMESH SHIFTING, NO.1

main33365-05010iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200811-201305

*202

main33365-20080iNDE150..E;NDE150,ZRE151..6FS200902-201210

main33365-20080iZRE152200811-201001

*201

main33365-20080iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200912-201305

*201,*206

main33365-20080iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201001

*206

main33365-52030iZZE150200702-200811

main33365-52030iNDE150..5F200702-200902

C53

main33365-52030iNDE150..5F200809-200902

C50

main33365-53010iADE15#..LHD200702-201210

33366KEY, SYNCHROMESH SHIFTING, NO.2

main33365-05010iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200811-201305

*202

main33365-20080iNDE150,NRE150,ZRE151..6F..(SOL,TERRA)200811-201001

*206

main33365-20080iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201001

*201

main33365-20080iNDE150..E;NDE150,ZRE151..6FS200902-201210

main33365-20080iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200912-201305

*201,*206

main33366-52030iNDE150..5F200702-200902

C53

main33366-52030iZZE150200702-200811

main33366-52030iNDE150..5F200809-200902

C50

33367RING, SYNCHRONIZER, NO.1

main33367-20070iNDE150,ZRE151..5FS200702-200902

33368GRING, SYNCHRONIZER (FOR 3RD GEAR)

main33368-05030iZRE151..5F200702-200902

C53

sub33368-12210

main33368-05030iNDE150..5F200702-200902

TYPE B:REFER 33-01

sub33368-12210

main33368-05030iZZE150200702-200811

sub33368-12210

main33368-12210iZRE151..5D..5F200712-200902

TYPE A:REFER 33-01

main33368-12210iNDE150..5F200809-200902

C50

main33368-20080iNDE150,ZRE151..5FS200702-200902

sub33368-20090

33368HRING, SYNCHRONIZER (FOR 4TH GEAR)

main33368-05030iZZE150200702-200811

sub33368-12210

main33368-05030iZRE151..5F200702-200902

TYPE B:REFER 33-01

sub33368-12210

main33368-05030iZRE151..5F200702-200902

C53

sub33368-12210

main33368-12210iNDE150..5F200809-200902

C50

main33368-12210iNDE150,ZRE151..5FS200702-200902

main33368-12210iZRE151..5D..5F200712-200902

TYPE A:REFER 33-01

33369RING, SYNCHRONIZER, NO.3

main33369-0D010iZZE150200702-200811

sub33369-20040

main33369-0D010iZRE151..5F200702-200902

TYPE B:REFER 33-01

sub33369-20040

main33369-0D010iZRE151..5F200702-200902

C53

sub33369-20040

main33369-20040iZRE151..3D..5F200712-200902

TYPE A:REFER 33-01

main33369-20040iNDE150,ZRE151..5FS200702-200902

main33369-20040iNDE150..5F200809-200902

C50

main33369-20050iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201001

*201

main33369-20050iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201001

*202,*206

main33369-20050iNDE150..E;NDE150,ZRE151..6FS200902-201210

main33369-20050iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200912-201305

*201,*202,*206

33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1

main33371-20030iADE15#200702-201001

sub33371-53010

main33371-52030iNDE150..5F200702-200902

C53

main33371-52030iNDE150..5F200809-200902

C50

main33371-52030iZZE150200702-200811

33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2

main33391-52020iNDE150..5F200809-200902

C50

main33391-52020iZZE150200702-200811

main33391-52020iZRE151;NDE150..5FS200702-200902

C53

33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3

main33391-12030iNDE150..5F200809-200902

C50

main33391-12030iZZE150200702-200811

main33391-12030iNDE150..5F200702-200902

C53

main33392-35010iADE15#200702-201001

33393HUB, TRANSMISSION CLUTCH, NO.3

main33393-05020iNDE150..5F200702-200902

C53,(L)

sub33393-12031

main33393-05020iZZE150200702-200811

(L)

sub33393-12031

main33393-05020iNDE150..5F200702-200902

TYPE B:SEE 33-01,(L)

sub33393-12031

main33393-05030iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200811-201305

*202

sub33393-05031

main33393-12031iNDE150..5F200702-200902

C53,(J)

sub33393-12060

main33393-12031iNDE150,ZRE151..5FS200702-200706

sub33393-12060

main33393-12031iZZE150200702-200811

(J)

sub33393-12060

main33393-12031iZRE151..5F200702-200902

TYPE B:SEE 33-01,(J)

sub33393-12060

main33393-12060iNDE150..5F200809-200902

C50

main33393-12060iNDE150,ZRE151..5FS200706-200902

main33393-12060iZRE151..3D..5F200712-200902

TYPE A:REFER 33-01

main33393-20030iADE15#..LHD200702-201210

main33393-20040iNDE150,NRE150,ZRE151..6F..(SOL,TERRA)200811-201001

*206

sub33393-20041

main33393-20040iNDE150,NRE150,ZRE151..6F..(SOL,TERRA)200811-201001

*201

sub33393-20041

main33393-20040iNDE150..E;NDE150,ZRE151..6FS200902-201210

sub33393-20041

main33393-20040iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200912-201305

*201,*206

sub33393-20041

33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)

main90520-18002iZRE151;NDE150..5FS200702-200902

T=2.25-2.30,MARK A,C53

main90520-18002iZZE150200702-200902

T=2.25-2.30,MARK A

main90520-18002iNDE150..5F200809-200902

T=2.25-2.30,MARK A,C50

main90520-18003iNDE150..5F200702-200902

T=2.31-2.36,MARK B,C53

main90520-18003iNDE150..5F200702-200902

T=2.31-2.36,MARK B

main90520-18003iNDE150..5F200809-200902

T=2.31-2.36,MARK B,C50

main90520-18004iNDE150..5F200702-200902

T=2.37-2.42,MARK C

main90520-18004iNDE150..5F200809-200902

T=2.37-2.42,MARK C,C50

main90520-18004iNDE150..5F200702-200902

T=2.37-2.42,MARK C,C53

main90520-18006iNDE150..5F200702-200902

T=2.43-2.48,MARK D

main90520-18006iNDE150..5F200702-200902

T=2.43-2.48,MARK D,C53

main90520-18006iNDE150..5F200809-200902

T=2.43-2.48,MARK D,C50

main90520-18007iNDE150..5F200702-200902

T=2.49-2.54,MARK E,C53

main90520-18007iZZE150200702-200902

T=2.49-2.54,MARK E

main90520-18007iNDE150..5F200809-200902

T=2.49-2.54,MARK E,C50

main90520-18008iNDE150..5F200702-200902

T=2.55-2.60,MARK F

main90520-18008iZRE151;NDE150..5FS200702-200902

T=2.55-2.60,MARK F,C53

main90520-18008iNDE150..5F200809-200902

T=2.55-2.60,MARK F,C50

main90520-18009iNDE150..5F200702-200902

T=2.61-2.66,MARK G

main90520-18009iZRE151;NDE150..5FS200702-200902

T=2.61-2.66,MARK G,C53

main90520-18009iNDE150..5F200809-200902

T=2.61-2.66,MARK G,C50

33394KEY, SYNCHROMESH SHIFTING, NO.3

main33365-05010iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200811-201305

*202

main33365-20080iNDE150,NRE150,ZRE151..6F..(SOL,TERRA)200811-201001

*201

main33365-20080iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201001

*206

main33365-20080iNDE150..E;NDE150,ZRE151..6FS200902-201210

main33365-20080iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200912-201305

*201,*206

main33394-20020iADE15#200702-201210

main33394-52020iNDE150..5F200702-200902

C53

main33394-52020iNDE150..5F200809-200902

C50

main33394-52020iZZE150200702-200811

33395SLEEVE, TRANSMISSION HUB, NO.3

main33395-05021iNDE150..5F200702-200902

C53,(L)

sub33395-20041

main33395-05021iNDE150..5F200702-200902

(L)

sub33395-20041

main33395-05030iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201305

*202

main33395-12040iNDE150..E200905-201210

main33395-12040iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201305

*206

main33395-20041iNDE150..5F200702-200902

C53,(J)

main33395-20041iNDE150,ZRE151..5FS200702-200902

(J)

main33395-20041iNDE150..5F200809-200902

C50

main33395-20050iADE15#..LHD200702-201210

main33395-20060iZRE152200811-201305

*201

sub33395-12040

main33395-20060iNDE150,ZRE151..6FS200902-201210

sub33395-12040

33402GEAR SUB-ASSY, REVERSE IDLER

main33402-05020iNDE150..5F200702-200902

(L)

sub33402-12042

main33402-05020iZRE151..5F200702-200902

C53,(L)

sub33402-12042

main33402-05030iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200811-201305

*202

main33402-12042iNDE150,ZRE151..5FS200702-200902

(J)

main33402-12042iNDE150..5F200702-200902

C53,(J)

main33402-12042iNDE150..5F200809-200902

C50

main33402-20080iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200912-201305

*201,*206

main33402-20080iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201001

*206

main33402-20080iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201001

*201

main33402-20080iNDE150..E;NDE150,ZRE151..6FS200902-201210

33422BGEAR, 4TH DRIVEN

main33035-20200iADE15#200702-201210

sub33035-64030

main33422-05030iZZE150200702-200811

C53,(L)

sub33422-12090

main33422-05030iZRE151..5F200702-200811

(L)

sub33422-12090

main33422-05030iZRE151..5F200702-200811

TYPE B:SEE 33-01,(L)

sub33422-12090

main33422-05050iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201305

*202

main33422-12050iZRE151..5F200702-200811

TYPE B:SEE 33-01,(J)

sub33422-12090

main33422-12050iNDE150,ZRE151..5FS200702-200706

sub33422-12090

main33422-12050iZZE150200702-200811

(J)

sub33422-12090

main33422-12050iZZE150200702-200811

C53,(J)

sub33422-12090

main33422-12090iZRE151..5D..5F200712-200902

TYPE A:REFER 33-01

main33422-12090iZRE151..5F200811-200902

C53

main33422-12090iNDE150,ZRE151..5FS200706-200902

main33422-12090iNDE150..5F200811-200902

TYPE B:REFER 33-01

main33422-12090iNDE150..5F200809-200902

C50

main33422-12110iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200811-201305

*206

main33422-12110iNDE150..E200905-201210

main33422-20070iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200811-201305

*201

sub33422-12110

main33422-20070iNDE150,ZRE151..6FS200902-201210

sub33422-12110

33423AGEAR, 3RD DRIVEN

main33034-20090iADE157..LHD200702-201210

sub33034-20091

main33034-20100iADE150200702-201210

sub33034-20101

main33423-05020iZRE151..5F200702-200811

C53,(L)

sub33423-12010

main33423-05020iNDE150..5F200702-200811

TYPE B:SEE 33-01,(L)

sub33423-12010

main33423-05020iZZE150200702-200811

(L)

sub33423-12010

main33423-05030iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201305

*202

main33423-12010iZRE151..5F200702-200902

(J)

main33423-12010iZZE150200702-200811

TYPE B:SEE 33-01,(J)

main33423-12010iZZE150200702-200811

C53,(J)

main33423-12010iNDE150,ZRE151..5FS200702-200902

main33423-12010iNDE150..5F200809-200902

C50

main33423-12010iZRE151..5F200811-200902

TYPE B:REFER 33-01

main33423-12010iZRE151..5F200811-200902

C53

main33423-12070iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200811-201305

*206

main33423-12070iNDE150..E200905-201210

main33423-20080iZRE152200811-201305

*201

sub33423-12070

main33423-20080iZRE151..6FS;NDE150..6FS..SOL200902-201210

sub33423-12070

33428CGEAR, 5TH DRIVEN

main33036-20100iADE15#..LHD200702-201210

sub33036-64040

main33428-02020iNDE150..5F200702-200811

C53,(L)

sub33428-12100

main33428-05020iZZE150200702-200811

(L)

sub33428-12110

main33428-05020iZRE151..5F200702-200811

TYPE B:SEE 33-01,(L)

sub33428-12110

main33428-05030iZRE152..LHD..SOL;NRE150,ZRE151..6F200811-201305

*202

main33428-0D070iNDE150..6F..(SOL,TERRA)200902-201210

*202

main33428-12050iZZE150200702-200811

(J)

sub33428-12110

main33428-12050iZRE151..5F200702-200811

TYPE B:SEE 33-01,(J)

sub33428-12110

main33428-12050iZRE151..5FS200702-200706

sub33428-12110

main33428-12060iNDE150..5FS200702-200706

sub33428-12100

main33428-12060iNDE150..5F200702-200811

C53,(J)

sub33428-12100

main33428-12100iNDE150..5F200809-200902

C50

main33428-12100iNDE150..5FS200706-200902

main33428-12100iNDE150..5F200811-200902

C53

main33428-12110iZRE151..5F200811-200902

TYPE B:REFER 33-01

main33428-12110iZRE151..3D..5F200712-200902

(J)

main33428-12110iZRE151..5FS200706-200902

main33428-12150iZRE152..LHD..SOL;NRE150,ZRE151..6F200811-201305

*206

main33428-12160iNDE150..E200902-201210

*206

main33428-12160iNDE150..E200905-201001

main33428-20110iZRE152..LHD..SOL;NRE150,ZRE151..6F200811-201305

*201

sub33428-12150

main33428-20110iZRE151..6FS200902-201210

sub33428-12150

main33428-52030iNDE150..6F..(SOL,TERRA)200902-201210

*201

sub33428-12160

33431CSPACER, OUTPUT GEAR

main33431-12010iZZE150200702-200811

main33431-12010iNDE150..5F200702-200902

C53

main33431-12010iNDE150..5F200809-200902

C50

main33431-20090iNDE150,NRE150,ZRE151..6F..(SOL,TERRA)200811-201001

*201

main33431-20090iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201001

*202,*206

main33431-20090iNDE150..E;NDE150,ZRE151..6FS200902-201210

main33431-20090iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200912-201305

*201,*202,*206

33451SHAFT, REVERSE IDLER GEAR

main33451-02010iZZE150200801-200811

sub33451-12021

main33451-02010iZRE151..5F200801-200902

TYPE B:REFER 33-01

sub33451-12021

main33451-02010iZRE151..5F200801-200902

C53

sub33451-12021

main33451-05010iZZE150200702-200801

TYPE B:SEE 33-01,(L)

sub33451-02010

main33451-05010iZZE150200702-200801

(L)

sub33451-02010

main33451-05010iZZE150200702-200801

C53,(L)

sub33451-02010

main33451-05020iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200811-201305

*202

main33451-12021iZZE150200702-200801

C53,(J)

main33451-12021iZRE151..5F200702-200801

(J)

main33451-12021iZRE151..5F200702-200801

TYPE B:SEE 33-01,(J)

main33451-12021iNDE150,ZRE151..5FS200702-200902

main33451-12021iZRE151..5D..5F200712-200902

TYPE A:REFER 33-01

main33451-12021iNDE150..5F200809-200902

C50

main33451-20050iADE15#200702-201210

main33451-20060iNDE150,NRE150,ZRE151..6F..(SOL,TERRA)200811-201001

*201

main33451-20060iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201001

*206

main33451-20060iNDE150..E;NDE150,ZRE151..6FS200902-201210

main33451-20060iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200912-201305

*201,*206

33451HBOLT (FOR REVERSE IDLER GEAR SHAFT)

main90105-08150iNDE150,NRE150,ZRE151..6F..(SOL,TERRA)200811-201001

*202,*206

main90105-08150iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201001

*201

main90105-08150iNDE150..E;NDE150,ZRE151..6FS200902-201210

main90105-08150iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200912-201305

*201,*202,*206

main90109-08097iZRE151;NDE150..5FS200702-200902

C53

main90109-08097iZZE150200702-200811

main90109-08097iNDE150..5F200809-200902

C50

33451JGASKET (FOR REVERSE IDLER GEAR SHAFT)

main90430-08010iNDE150..5F200809-200902

C50

main90430-08010iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201001

*206

main90430-08010iNDE150,NRE150,ZRE151..6F..(SOL,TERRA)200811-201001

*201

main90430-08010iZZE150200702-201210

main90430-08010iNDE150..5F200702-200902

C53

main90430-08010iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200912-201305

*201,*206

main90430-W0002iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201305

*202

33462WASHER, REVERSE IDLER THRUST

main33462-12010iNDE150..5F200702-200902

C53

main33462-12010iZZE150200702-200811

main33462-12010iNDE150..5F200809-200902

C50

main33462-20060iADE15#200702-201210

main33462-20070iNDE150,NRE150,ZRE151..6F..(SOL,TERRA)200811-201001

*202,*206

sub33462-20090

main33462-20070iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201001

*201

sub33462-20090

main33462-20070iNDE150..E;ZRE151..6FS;NDE150..6FS..SOL200902-201210

sub33462-20090

main33462-20070iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200912-201305

*201,*202,*206

sub33462-20090

63 parts on this diagram · 3 diagrams in section
