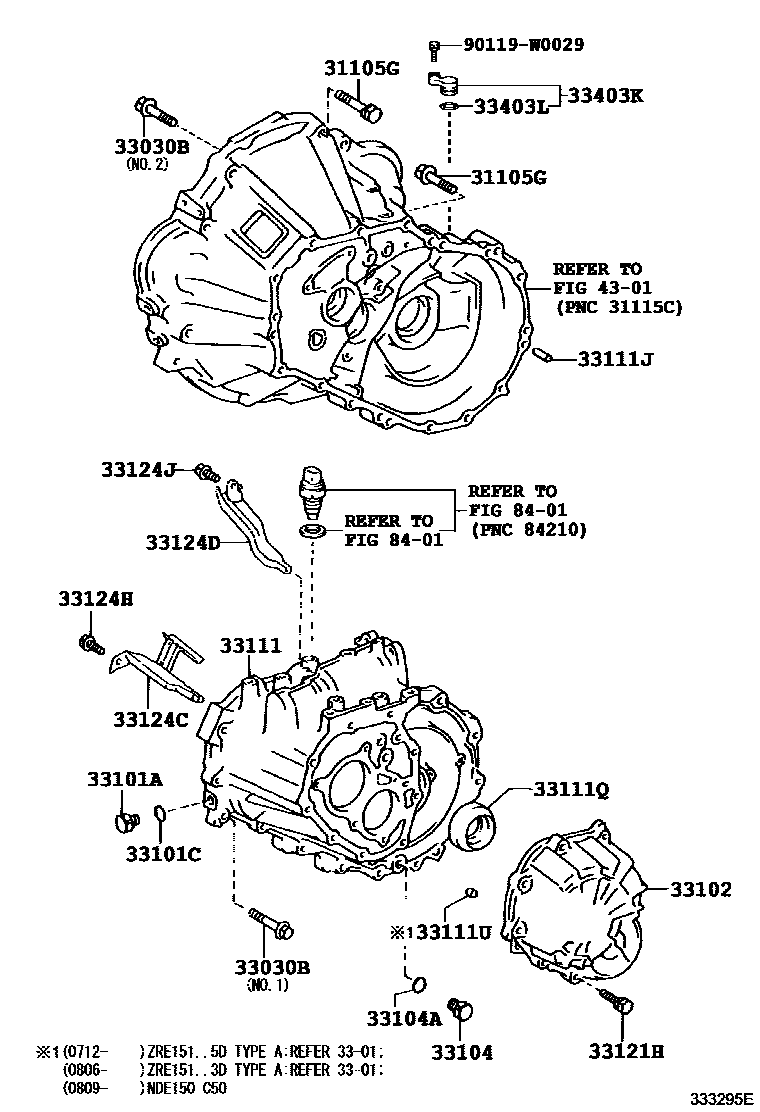

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1C50,C53 0002 1C50A,C53A 0003 1EA60,EA61 0004 1EC60,EC65 0005 1EC60A,EC65A

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-W0181iADE15#..LHD200702-201210

*10-1.25PX60-30

main90105-W0182iADE15#¥160200702-201210

*10-1.25PX65-30

main90119-W0049iZZE150200702-200811

*10-1.25PX55-30

sub91642-81055¥220

main90119-W0080iZZE150¥320200702-200811

*12-1.25PX55-30

main90119-W0097iNRE150¥160200811-201305

*12-1.25PX45-30,TYPE A:REFER ILLUST.

main90119-W0162iADE15#200702-201210

*12-1.25PX75-30

main90119-W0163iADE15#200702-201210

*12-1.25PX60-30

main91552-81045iNDE150,ZRE15#..MTM¥120200902-201210

*10-1.25PX45-26

main91552-81080iNDE150¥190200902-201210

*10-1.25PX80-26

main91552-81245iNRE150¥190200811-201305

*12-1.25PX45-30,TYPE B:REFER ILLUST.

main91552-81280iNRE150¥240200811-201305

*12-1.25PX80-30

main91612-61045iNDE150,ZRE151¥120200702-200902

*10-1.25PX45-30

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08086iADE15#¥110200702-201210

*8-1.25PX45-27.5

main90105-08353iNDE150..5F¥100200702-200902

*8-1.25PX50-30,NO.1

main90105-08353iZRE151;NDE150..5FS¥100200702-200902

*8-1.25PX50-30,C53,NO.1

main90105-08353iNDE150..5F¥100200809-200902

*8-1.25PX50-30,C50,NO.1

main90105-08430iZRE151;NDE150..5FS¥100200702-200902

*8-1.25PX45-27.5,NO.2

main90105-08430iNDE150..5F¥100200702-200902

*8-1.25PX45-27.5,C53,NO.2

main90105-08430iNDE150..5F¥100200809-200902

*8-1.25PX45-27.5,C50,NO.2

main91551-10840iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)¥80200811-201001

*8-1.25PX40-22,*201

main91551-10840iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)¥80200811-201001

*8-1.25PX40-22,*202,*206

main91551-10840iNDE150..E;NDE150,ZRE151..6FS¥80200902-201210

*8-1.25PX40-22

main91551-10840iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)¥80200912-201305

*8-1.25PX40-22,*201,*202,*206

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-14032iNDE150..E;NDE150,ZRE151..6FS¥210200902-201210

NO.1

main90341-14032iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)¥210200811-201001

*202,NO.1,*206,NO.1

main90341-14032iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)¥210200811-201001

*201,NO.1

main90341-14032iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)¥210200912-201305

*202,NO.1,*201,NO.1,*206,NO.1

main90341-18033iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)¥190200811-201001

*201,NO.2

main90341-18033iNDE150,NRE150,ZRE151..6F..(SOL,TERRA)¥190200811-201001

*202,NO.2,*206,NO.2

main90341-18033iZZE150¥190200702-201001

main90341-18033iNDE150..E;NDE150,ZRE151..6FS¥190200902-201210

NO.2

main90341-18033iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)¥190200912-201305

*202,NO.2,*201,NO.2,*206,NO.2

main90341-18033iNDE150..5F¥190200702-200902

C53

main90341-18033iNDE150..5F¥190200809-200902

C50

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main12157-10010iNRE150¥100201210-201305

*201,NO.2

main90430-14003iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)¥160200811-201001

*201,NO.1

main90430-14003iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)¥160200811-201001

*202,NO.1,*206,NO.1

main90430-14003iNDE150..E;NDE150,ZRE151..6FS¥160200902-201210

NO.1

main90430-14003iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)¥160200912-201305

*202,NO.1,*201,NO.1,*206,NO.1

main90430-18008iADE15#¥110200702-201001

main90430-18008iNDE150..5F¥110200809-200902

C50

main90430-18008iZRE151..3D..5F¥110200712-200902

TYPE A:REFER 33-01

main90430-18008iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)¥110200811-201305

*206,NO.2

main90430-18008iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)¥110200811-201210

*201,NO.2

main90430-18008iNDE150..E;NDE150,ZRE151..6FS¥110200902-201210

NO.2

main90430-W0001iNDE150..5F200702-200902

TYPE B:REFER 33-01

main90430-W0001iZRE151..5F200702-200902

C53

main90430-W0001iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200811-201305

*202,NO.2

main90430-W0001iZZE150200702-200811

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-0D010iZZE150200702-200811

sub33102-12021¥9,800

main33102-0D010iNDE150..5F200702-200902

TYPE B:REFER 33-01

sub33102-12021¥9,800

main33102-0D010iNDE150..5F200702-200902

C53

sub33102-12021¥9,800

main33102-12021iNDE150..5F¥9,800200809-200902

C50

main33102-12021iNDE150,ZRE151..5FS¥9,800200702-200902

main33102-12021iZRE151..5D..5F¥9,800200712-200902

TYPE A:REFER 33-01

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iZZE150¥180200702-201001

main90341-18006iZRE151..5F¥180200702-200902

TYPE B:REFER 33-01

main90341-18006iZRE151..5F¥180200702-200902

C53

main90341-18033iNDE150,ZRE151..5FS¥190200702-200902

main90341-18033iZRE151..5D..5F¥190200712-200902

TYPE A:REFER 33-01

main90341-18033iNDE150..5F¥190200809-200902

C50

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iNDE150,ZRE151..5FS¥110200702-201001

main90430-18008iZRE151..5D..5F¥110200712-200902

TYPE A:REFER 33-01

main90430-18008iNDE150..5F¥110200809-200902

C50

main90430-W0001iZRE151..5F200702-200902

C53

main90430-W0001iZZE150200702-200811

main90430-W0001iZRE151..5F200702-200902

TYPE B:REFER 33-01

33111CASE, MANUAL TRANSMISSION

main33111-02020iZZE150200702-200811

sub33111-12260¥22,100

main33111-02020iZRE151..5F200702-200902

TYPE B:REFER 33-01

sub33111-12260¥22,100

main33111-02020iZRE151..5F200702-200902

C53

sub33111-12260¥22,100

main33111-02050iNRE150201210-201305

*202

sub33111-02052

sub33290-02020¥1,240

main33111-05040iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200811-201003

*202

sub33111-05041

main33111-05041iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)201003-201210

*202

main33111-12260iNDE150..5F¥22,100200809-200902

C50

main33111-12260iZRE151..3D..5F¥22,100200712-200902

TYPE A:REFER 33-01

main33111-12290iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)200811-201004

*206

sub33111-12291¥36,300

main33111-12290iNDE150..E200905-200912

sub33111-12291¥36,300

main33111-12291iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)¥36,300201004-201305

*206

sub33111-12292¥30,300

sub33290-12040¥1,240

main33111-12291iNDE150..E¥36,300201004-201210

sub33111-12292¥30,300

sub33290-12040¥1,240

main33111-20220iNDE150,NRE150,ZRE151..6F..(SOL,TERRA)200811-201003

*201

sub33111-20221¥43,700

main33111-20221iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)¥43,700201003-201305

*201

sub33111-12291¥36,300

main33111-42050iADE15#200702-200808

sub33111-42060

sub90341-18019¥210

main33111-42060iADE15#200808-201210

main33111-52130iZRE151..6FS;NDE150..6FS..SOL200902-201003

sub33111-52131¥43,700

main33111-52131iNDE150,ZRE151..6FS¥43,700201003-201210

sub33111-12320

main33111-64011iNDE150,ZRE151..5FS200702-200902

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054iNDE150..5F¥120200702-201210

L=23,OD=8

main90250-08054iNDE150..5F¥120200702-200902

L=23,OD=8,C53

main90250-08054iNDE150..5F¥120200809-200902

L=23,OD=8,C50

main90250-08054iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)¥120200811-201001

L=23,OD=8,*202,*206

main90250-08054iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)¥120200811-201001

L=23,OD=8,*201

main90250-08054iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)¥120200912-201305

L=23,OD=8,*201,*202,*206

33111QSEAL, OIL(FOR TRANSMISSION CASE)

main90311-34034iNRE150¥470200811-201012

*201,*206

sub90311-34042¥470

main90311-34034iZRE151..5FS¥470200702-200902

sub90311-34042¥470

main90311-34034iZRE151..3D..5F¥470200712-200902

TYPE A:REFER 33-01

sub90311-34042¥470

main90311-34042iNRE150¥470201012-201305

*201,*206

main90311-35058iNDE150..5F¥470200702-200902

C53

sub90311-35064¥470

main90311-35058iNDE150..5F¥470200809-200902

C50

sub90311-35064¥470

main90311-35061iNDE150..E;NDE150,ZRE151..6FS¥470200902-201001

*202,*206

sub90311-35066¥470

main90311-35061iNDE150,ZRE15#..6F..(SOL,TERRA)¥470200902-201001

*201

sub90311-35066¥470

main90311-35061iZRE152..LHD..SOL;NDE150,ZRE151..6F..(SOL,TERRA)¥470200912-201012

*201,*202,*206

sub90311-35066¥470

main90311-35066iNDE150,ZRE15#..6F..(SOL,TERRA)¥470201012-201210

*201,*202,*206

sub90311-35075¥470

main90311-W0004iZZE150200702-200811

sub90311-W0016

main90311-W0004iZRE151..5F200702-200902

TYPE B:REFER 33-01

sub90311-W0016

main90311-W0004iNRE150200811-201110

*202

sub90311-W0016

main90311-W0016iNRE150201110-201305

*202

sub90311-W0023

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001iZRE151..5D..5F¥120200712-200902

L=11,OD=11,TYPE A:REFER 33-01

main90253-11001iNDE150..5F¥120200809-200902

L=11,OD=11,C50

main90253-11001iNDE150,ZRE151..5FS¥120200702-200902

L=11,OD=11

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90119-08429iNDE150,ZRE151..5FS¥110200702-200902

main90119-08429iNDE150..5F¥110200809-200902

C50

main90119-08429iZRE151..3D..5F¥110200712-200902

TYPE A:REFER 33-01

main90119-08782iNDE150..5F¥190200702-200902

C53

main90119-08782iNDE150..5F¥190200702-200902

TYPE B:REFER 33-01

main90119-08782iZZE150¥190200702-200811

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-0D050iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)201103-201305

*202

main33124-20040iADE15#¥870200702-201210

main33124-20050iZRE151;NDE150..5FS¥440200702-200902

C53

main33124-20050iZZE150¥440200702-200811

main33124-20050iNDE150..5F¥440200809-200902

C50

main33124-20080iNDE150,NRE150,ZRE151..6F..(SOL,TERRA)¥390200811-201001

*201

main33124-20080iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)¥390200811-201001

*202,*206

main33124-20080iNDE150..E¥390200905-201210

main33124-20080iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)¥390200912-201103

*202

main33124-20080iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..6F..(SOL,TERRA)¥390200912-201305

*201,*206

main33124-52030iZRE151..6FS;NDE150..6FS..SOL¥510200902-201210

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-12021iNDE150..5F¥720200702-200902

C53

main33124-12021iZZE150¥720200702-200811

main33124-12021iNDE150..5F¥720200809-200902

C50

33124HBOLT(FOR OIL RECEIVER PIPE)

main91611-G0820iZRE151;NDE150..5FS¥160200702-200902

C53

main91611-G0820iZZE150¥160200702-200811

main91611-G0820iNDE150..5F¥160200809-200902

C50

33124JBOLT, W/WASHER

main91611-G0820iZZE150¥160200702-200811

main91611-G0820iNDE150..5F¥160200702-200902

C53

main91611-G0820iNDE150..5F¥160200809-200902

C50

33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE

main33403-20230iADE15#¥1,180200702-201210

main33403-35230iNDE150,NRE150,ZRE15#..6F,6FS¥1,180200702-201305

33403LRING, O

main96711-24018iADE15#¥160200702-201210

main96711-24030iNDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151..MTM¥170200702-201305

4301

8401

90119W0029

main90119-W0029¥90
