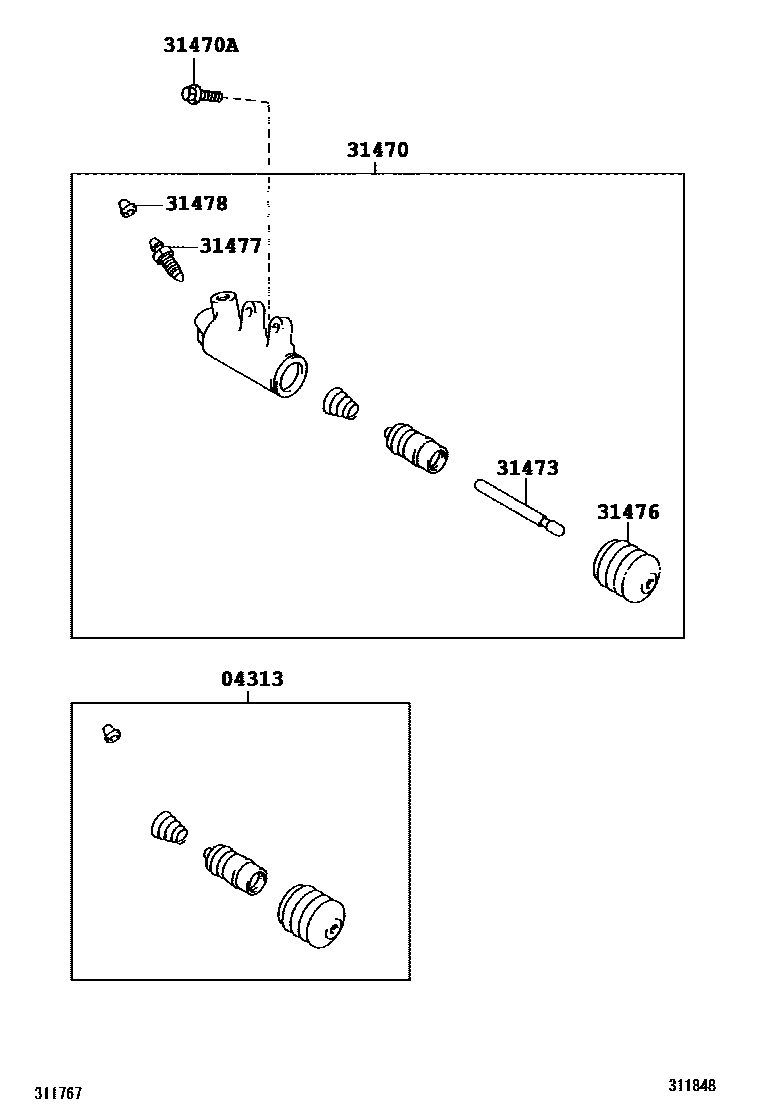

CLUTCH RELEASE CYLINDER

0001 1 0002 1 0003 1 0004 1 0005 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17040iZZE150200702-200811

main04313-35060iNDE150..5F200702-200902

main04313-37030iZRE151..5F200702-200902

main04313-53010iADE15#200702-201001

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-12140iZZE150200702-200811

main31470-12160iZRE151..5F200702-200902

sub31470-12161

main31470-12180iNDE150..5F200702-200902

main31470-12190iADE15#200702-201001

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main90119-W0028iNDE150,ZRE151,ZZE150..5F200702-200902

*8-1.25PX22-17.1

main91611-60822iADE15#200702-201001

*8-1.25PX22-17.1

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-20031iADE15#200702-201001

main31473-22030iNDE150,ZRE151..5F200702-200902

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iZZE150200702-201001

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iZZE150200702-201001

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iNDE150,NRE150,ZRE151..6F..(SOL,TERRA)200811-201305

*202,*206

main31478-30010iZZE150200702-201210

main31478-30010iNDE150,NRE150,ZRE15#..6F..(SOL,TERRA)200811-201305

*201

7 parts on this diagram · 5 diagrams in section
