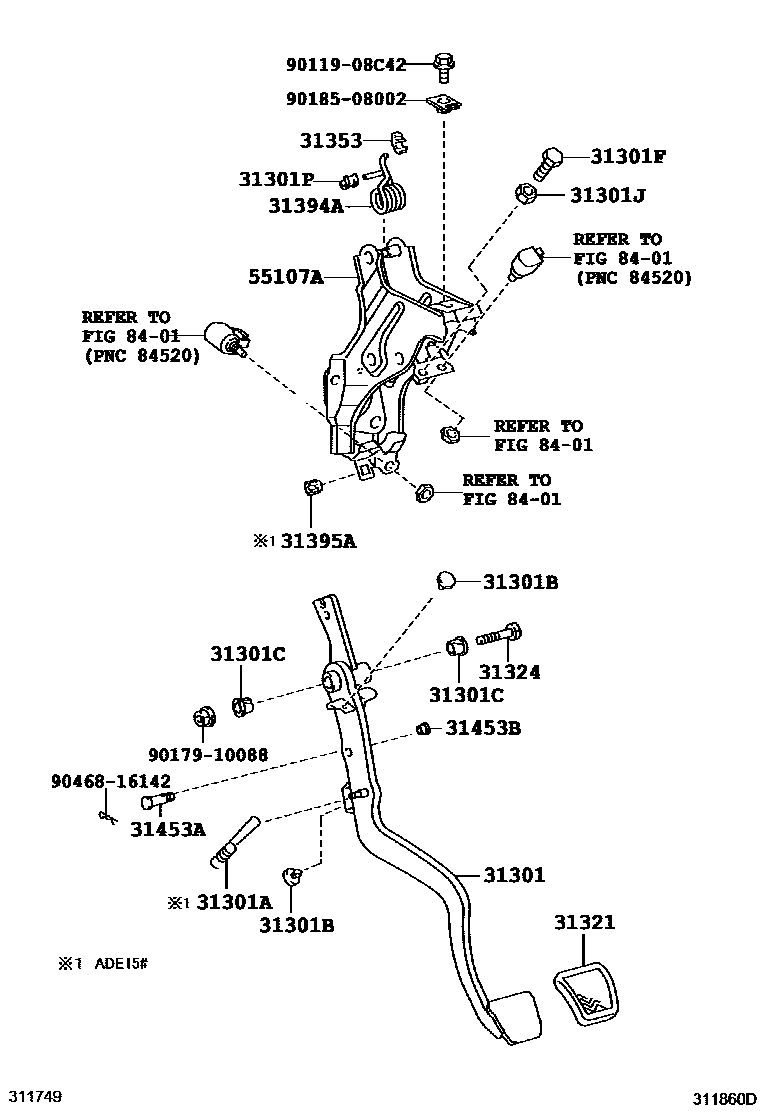

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0005 1 0007 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1 0017 1 0018 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-12510iZZE150..LHD200702-200905

sub31301-12H01

main31301-12511iNRE150,ZRE151..LHD..6F200906-201305

main31301-12520iNDE150..LHD..6F;ADE15#,ZRE152..LHD..(DCRL,HTWVM)200702-200906

sub31301-12H00

main31301-12521iADE15#,NDE150,ZRE152..LHD..6F200906-201210

main31301-12620iNDE150,ZRE152..LHD..6F201003-201210

main31311-12370iNDE150,NRE150,ZRE151..RHD..6F200702-201205

main31311-12371iNDE150,NRE150,ZRE151..RHD..6F201205-201210

31301ASPRING(FOR CLUTCH PEDAL)

main31394-25010iADE15#..LHD200702-201210

main90507-14047iNRE150,ZRE151..6F200702-201305

main90905-06079iADE15#..RHD200702-201001

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iZZE150200702-201305

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iZZE150200702-201305

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10055iADE15#,NDE150,NRE150,ZRE15#..LHD..6F200906-201305

main90101-10369iADE15#200702-201210

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main46441-12020iADE15#,NDE150,NRE150,ZRE15#..LHD..6F200906-201305

main94130-61000iADE15#200702-201210

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-06055iADE15#..LHD200702-201001

31321PAD, CLUTCH PEDAL

main31321-42010iNDE150,ZRE151..5F200702-201305

31324SHAFT, CLUTCH PEDAL

main90101-10039iADE15#..RHD200702-201210

main90109-10167iNDE150..LHD..6F;ADE15#,NRE150,ZRE15#..LHD..6F..(DCRL,HTWC,HTWVM)200702-201305

31353HOLDER, CLUTCH PEDAL SPRING

main31353-26010iNDE150..5F200702-201001

31394ASPRING, PEDAL W/HOOK

main31394-12050iADE15#..RHD200702-201001

main31394-12060iNDE150,ZRE152..RHD..6F200702-201001

main31394-12070iADE15#..LHD200702-201001

main31394-12080iNDE150..LHD..6F;ZRE152..LHD..SOL200702-201001

31395AHOOK, PEDAL SPRING, NO.1

main31395-33020iADE15#..LHD200702-201001

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08256iNDE150,ZRE151..LHD..5F200702-201305

L=36.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iZRE152..LHD..SOL;ADE15#,NDE150,NRE150,ZRE151..LHD..6F200702-201305

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-12270iNRE150,ZRE151..RHD..6F200702-201205

main55107-12271iNRE150,ZRE151..RHD..6F201205-201210

main55107-12280iZZE150..LHD200702-200905

sub31301-12H01

main55107-12281iNRE150,ZRE151..LHD..6F200906-201305

main55107-12290iADE15#..RHD200702-201205

main55107-12291iNDE150..RHD..6F201205-201210

main55107-12300iNDE150..LHD..6F;ADE15#,ZRE152..LHD..(DCRL,HTWVM)200702-200906

sub31301-12H00

main55107-12301iZRE152..LHD..SOL;ADE15#,NDE150..LHD..6F200906-201210

8401

9011908C42

main90119-08C42

9017910088

main90179-10088

9018508002

main90185-08002

9046816142

main90468-16142

20 parts on this diagram · 15 diagrams in section
