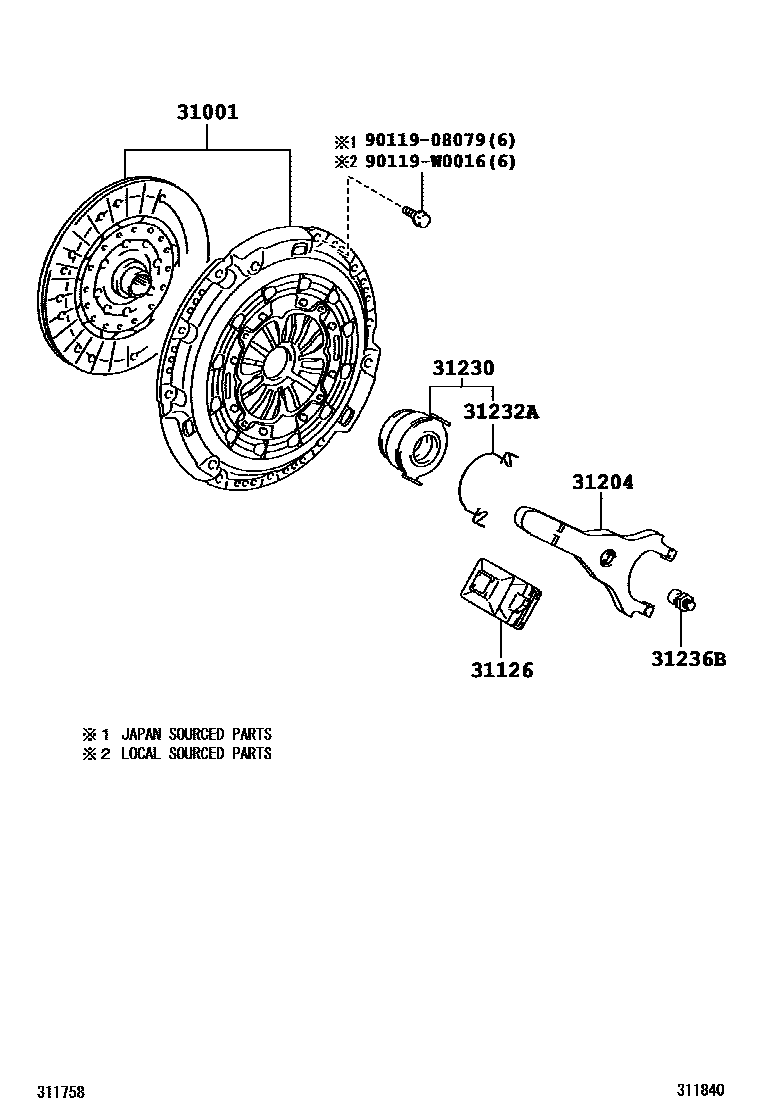

CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

31001CLUTCH SET, COVER & DISC

main31001-05030iADE157200702-200903

sub31001-05160

main31001-05040iADE150200702-200903

sub31001-05170

main31001-05090iADE150200903-201103

sub31001-0R010

main31001-05100iADE157..LHD200903-201103

sub31001-05150

main31001-05140iADE150201103

main31001-05150iADE157201103

31126BOOT, CLUTCH RELEASE FORK

main31126-12051iNDE150,ZRE151..5F200702-200902

main31126-20080iADE15#200702-201001

main31126-64010iNDE150,ZRE151..5FS200702-200902

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-17010iZZE150200702-200811

main31204-20140iADE15#..LHD200702-201001

main31204-52010iNDE150,ZRE151..5F200702-200902

main31204-64010iNDE150,ZRE151..5FS200702-200902

31230BEARING ASSY, CLUTCH RELEASE

main31230-05012iZZE150200702-200902

main31230-12180iNDE150..5F200702-200811

sub31230-12181

main31230-12181iNDE150..5F200812-200902

main31230-17011iNDE150,ZRE151..5FS200702-200902

sub31230-17012

main31230-20200iADE15#200702-201001

31232ACLIP, RELEASE BEARING HUB

main31232-05011iZZE150200702-200902

main31232-12080iNDE150..5F200702-200902

main31232-17010iNDE150,ZRE151..5FS200702-200902

main31232-20031iADE15#200702-201001

31236BSUPPORT, RELEASE FORK

main31236-12020iZZE150200702-200811

main31236-12020iNDE150..5F200702-200902

C53

main31236-12020iNDE150..5F200809-200902

C50

main31236-20080iADE15#200702-201001

9011908079

main90119-08079

90119W0016

main90119-W0016

8 parts on this diagram · 6 diagrams in section
