INJECTION NOZZLE

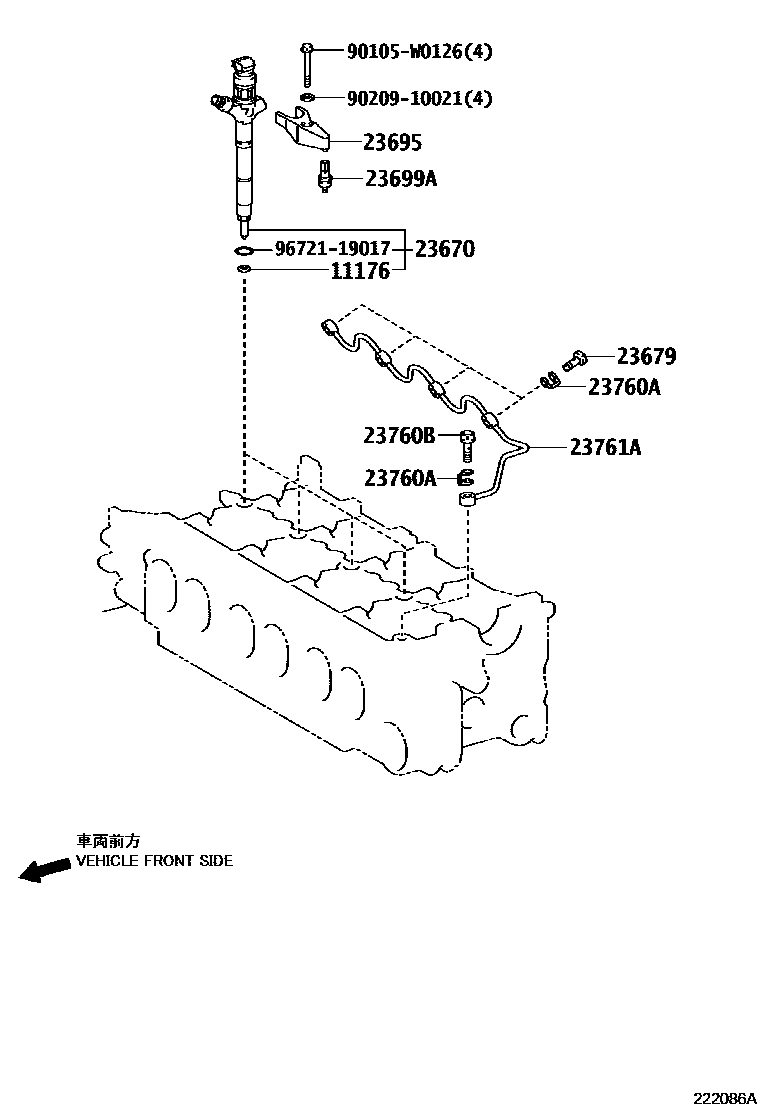

Parts diagram
11176SEAT, INJECTION NOZZLE
main11176-26010i200702-200811
sub11176-51010
main11176-26020i200903-201001
main11176-26030i200811-200903
sub11176-51010
main11176-33010i200702-201001
23670INJECTOR ASSY
main23670-09180i200702-200712
sub23670-09280
main23670-09190i200702-200712
sub23670-09270
main23670-09270i200712-200903
main23670-09280i200712-200903
main23670-09370i201112-201210
*132
main23670-09370i201009-201202
(L),*251
main23670-09370i201202-201210
*251
main23670-09370i201103-201112
*132,MARK23670-0W010
main23670-09390i201011-201202
(L),*251
main23670-09390i201112-201210
*132
main23670-09390i201103-201112
*132,MARK23670-0W020
main23670-09390i201202-201210
*251
main23670-29055i200702-200710
sub23670-29105
main23670-29105i200710-200903
main23670-29115i200903-201001
sub23670-29116
main23670-29135i200903-201001
sub23670-29136
main23670-39105i200702-200902
main23670-39325i200902-200911
sub23670-39415
main23670-39405i201007-201112
*132,MARK23670-33060
main23670-39405i201011-201202
(J),*251
main23670-39415i201008-201202
(J),*251
main23670-39415i200911-201001
main23670-39415i200912-201112
*132,MARK23670-33051
23679SCREW, INJECTOR FOLLOW
main23679-0R010i200702-200903
main23679-26010i200702-200903
sub23679-26020
main23679-26020i200903-201001
23695CLAMP, NOZZLE HOLDER, NO.1
main23695-0R010i200702-200705
sub23695-0R011
main23695-0R011i200705-200707
sub23695-0R012
main23695-0R012i200707-200903
main23695-0R020i200702-200808
sub23695-0R021
main23695-0R021i200808-201001
main23695-33010i200702-200902
main23695-33020i200902-201001
23699ASEAT, NOZZLE HOLDER CLAMP
main23699-0R010i200702-200903
sub23699-26010
main23699-0R021i200702-201001
main23699-33010i200702-200902
main23699-33020i200902-201001
23760PIPE ASSY, NOZZLE LEAKAGE
main23760-0W010i201112
*132
main23760-0W010i201009-201202
(L),*251
main23760-0W010i201202
*251
main23760-0W010i201103-201112
(L),*132
main23760-33020i200702-200902
main23760-33030i201008-201202
(J),*251
main23760-33030i200902-201001
main23760-33030i200912-201112
(J),*132
23760AGASKET
main90904-30008i200702-201001
23760BBOLT, UNION(FOR NOZZLE LEAKAGE PIPE)
main90401-08016i200702-200903
23761APIPE, NOZZLE LEAKAGE, NO.1
main23761-0R011i200702-200901
sub23761-26010
main23761-0R030i200702-200903
main23761-0R040i200903-201001
(L)
main23761-26010i200901-200903
main23761-26030i200903-201001
(J)
90105W0126
main90105-W0126
9020910021
main90209-10021
9672119017
main96721-19017

12 parts on this diagram · 6 diagrams in section
