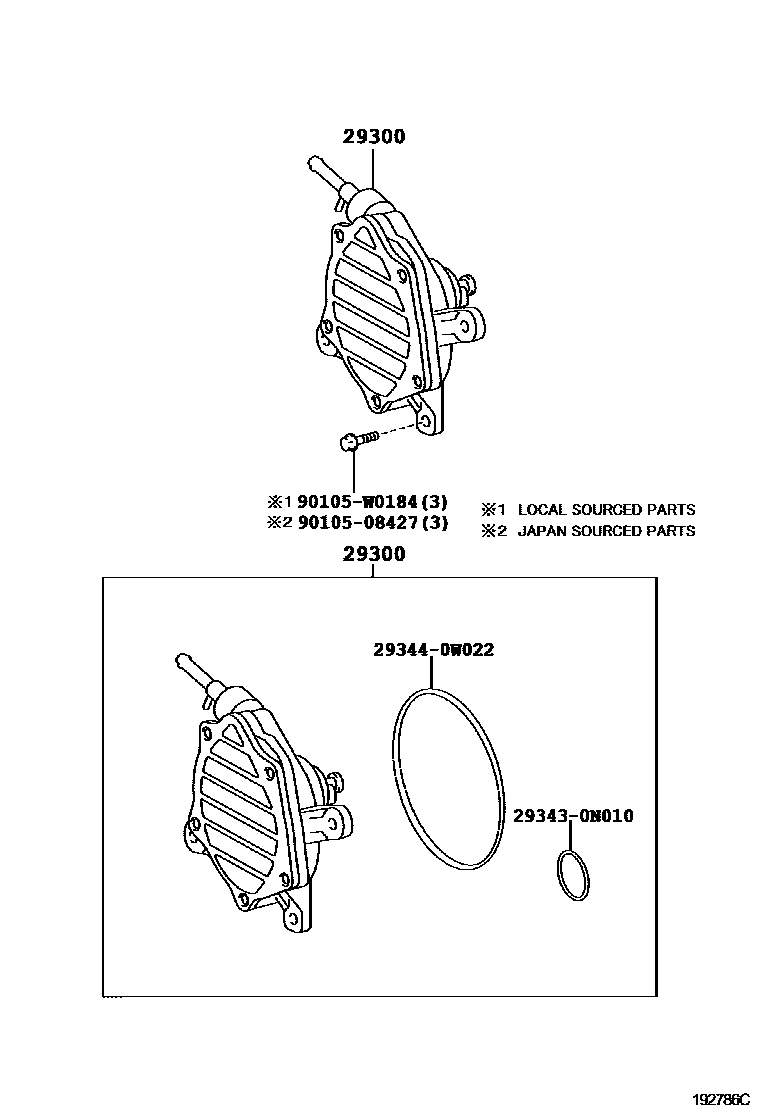

VACUUM PUMP

0001 1 0002 1 0003 1 0004 1

29300PUMP ASSY, VACUUM

main29300-0N010i1NDTV..NDE150200702-200902

main29300-0W022i1ZRFAE..ZRE151;2ZRFAE..ZRE152..LHD..SOL200902-201210

sub29300-0T020

main29300-0W030i1ADFTV,2ADFHV..ADE15#..LHD200702-201111

sub29300-0W090

main29300-0W070i1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA200902-201007

sub29300-0W072

main29300-0W072i1NDTV..NDE150201007-201210

sub29300-0W120

main29300-0W090i1ADFTV,2ADFHV..ADE15#201111-201210

293430N010RING, O VACUUM PUMP, NO.1

main29343-0N010

293440W022RING, O VACUUM PUMP, NO.2

main29344-0W022

9010508427

main90105-08427

90105W0184

main90105-W0184

5 parts on this diagram · 4 diagrams in section
