ALTERNATOR

0001 112V 90A 0002 112V 90A 0003 112V 100A 0004 112V 100A 0005 112V 100A 0006 112V 80A 0007 112V 100A 0008 112V 100A

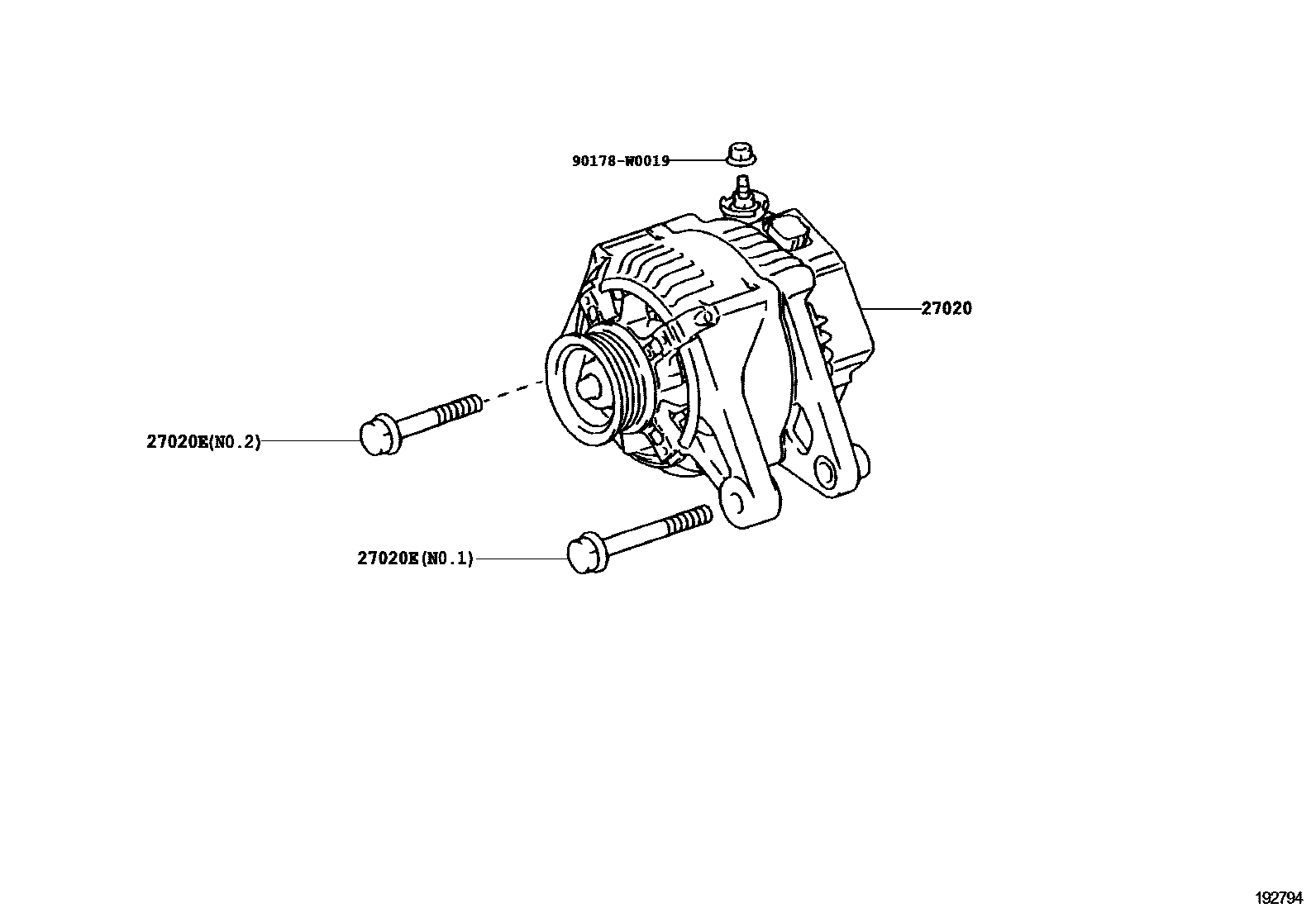

27020ALTERNATOR ASSY

main27060-0D190i4ZZFE..ZZE150200702-200810

12V 90A

sub27060-0D191

main27060-0G011i1ADFTV,2ADFHV..ADE15#200903-201001

12V 100A

main27060-0N020i1NDTV..NDE150200702-200807

12V 100A

sub27060-0N021

main27060-0N021i1NDTV..NDE150200808-200902

12V 100A

main27060-0N040i1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA200902-201001

12V 100A

main27060-0R011i1ADFTV,2ADFHV..ADE15#200702-200903

12V 100A

main27060-0T010i1ZRFE..ZRE151200702-200901

12V 90A

sub27060-0T012

main27060-0T021i1ZRFE..ZRE151200909-201001

12V 100A

main27060-0T080i1ZRFAE,2ZRFAE..ZRE15#200902-201010

12V 90A

sub27060-0T081

main27060-0T081i1ZRFAE,2ZRFAE..ZRE15#201010

12V 90A

main27060-0Y050i1NRFE..NRE150200811-201001

12V 80A

27020EBOLT(FOR ALTERNATOR)

main90105-10075i4ZZFE..ZZE150200702-200811

NO.1

main90105-10111i1NDTV..NDE150200902-201001

main90105-10307i1ZRFE..ZRE151200702-201001

main90105-10571i1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA200912

main90105-W0119i1NDTV..NDE150200702-200902

main90119-W0165i1NRFE..NRE150201010-201201

main91511-80830i4ZZFE..ZZE150200702-200811

NO.2

main91552-81075i1NRFE..NRE150200811-201010

main91671-00845i1NRFE..NRE150201201

90178W0019

main90178-W0019

3 parts on this diagram · 8 diagrams in section
