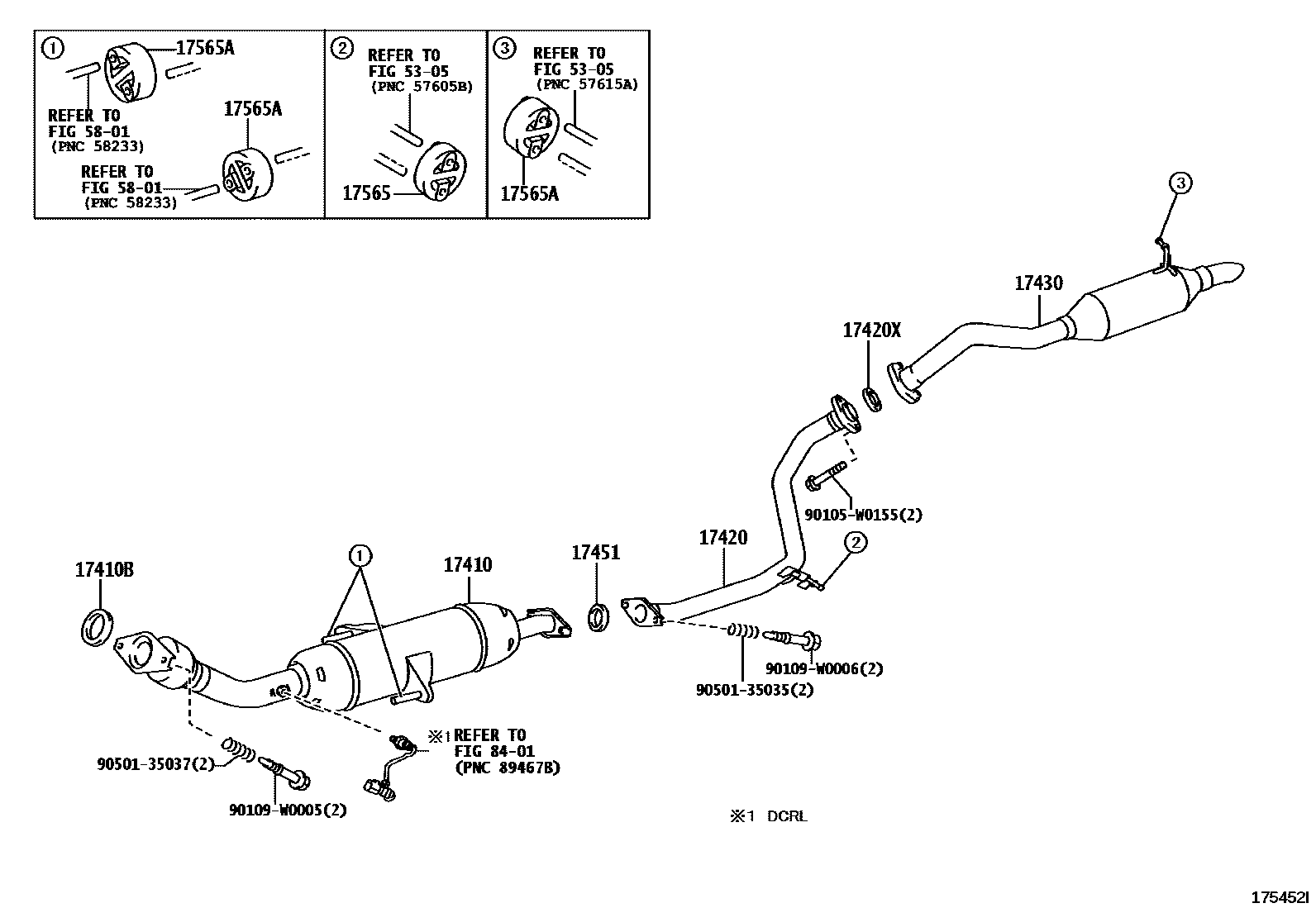

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1W(EXHAUST HEATER)

17410PIPE ASSY, EXHAUST, FRONT

main17410-0D380i4ZZFE..ZZE150200702-200811

*114=TOYOTA/GH2/Y

main17410-0D390i1ZRFE..ZRE151200702-201007

*114=TOYOTA/GG9GH5/Y

main17410-0N050i1NDTV..NDE150200702-200902

main17410-0N080i1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA200902-201210

main17410-0R050i1ADFTV..ADE150..DCR200702-200903

*114=TOYOTA/AC9/Y

main17410-0R060i1ADFTV..ADE150..DCRL200702-200903

*114=TOYOTA/AD3/Y

main17410-0R070i2ADFHV..ADE157200702-200903

*114=TOYOTA/AC7/Y

main17410-0R120i1ADFTV..ADE150200903-201210

*114=TOYOTA/AC7/Y

main17410-0R130i2ADFHV..ADE157..LHD200903-201210

*114=TOYOTA/AD8/Y

main17410-0T110i1ZRFAE,2ZRFAE..ZRE15#200902-201210

*114=*387

main17410-0T450i1ZRFE..ZRE151201007-201210

*114=*387

main17410-0Y030i1NRFE..NRE150200811-201001

*114=TOYOTA/CC6/Y

main17410-0Y080i1NRFE..NRE150200912-201305

*114=TOYOTA/EU CE8/Y

main17410-37440i2ZRFXE..ZWE150201006-201210

*114=*405

17410BGASKET, EXHAUST PIPE

main17451-0D090i4ZZFE..ZZE150200702-200811

main17451-0R010i1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA;2ZRFAE..ZRE152..LHD..SOL;1ZRFAE,2ZRFXE..ZRE151,ZWE150;1ADFTV,2ADFHV,1ZRFE..ADE15#,ZRE151..LHD200702-201001

main17451-47020i1NRFE..NRE150..3D200811-201001

sub17451-21070

17420PIPE ASSY, EXHAUST, CENTER

main17420-0D120i1ZRFE,4ZZFE..ZRE151,ZZE150200702-201210

main17420-0D130i1NDTV..NDE150;1ADFTV..ADE150..5D..DCRL200702-201210

main17420-0R010i1ADFTV..ADE150..3D200702-201210

main17420-0Y010i1NRFE..NRE150200811-201305

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06089i4ZZFE..ZZE150200702-201001

17430PIPE ASSY, EXHAUST, TAIL

main17430-0D390i4ZZFE..ZZE150200702-200811

sub17430-0D391

main17430-0D400i1ZRFE..ZRE151200702-200904

sub17430-0D401

main17430-0D401i1NRFE,1ZRFAE,2ZRFAE..NRE150,ZRE15#..5D200905-201001

main17430-0N040i1NDTV..NDE150..3D;1NDTV..NDE150..5D..6FS..TERRA200702-201001

main17430-0R030i1ADFTV..ADE150200702-200904

sub17430-0R031

main17430-0R031i1ADFTV..ADE150..LHD..5D200905-201001

main17430-0R040i2ADFHV..ADE157..5D200702-201001

main17430-0R110i2ADFHV..ADE157..LHD200912

main17430-37450i2ZRFXE..ZWE150201006

17451GASKET, EXHAUST PIPE

main17451-0D110i1ADFTV,2ADFHV,1NDTV,1ZRFE,4ZZFE..ADE15#,NDE150,ZRE151,ZZE150200702-200807

sub17451-0D111

main17451-0D111i4ZZFE..ZZE150200808-201102

sub17451-0D112

main17451-0D112i1ADFTV,2ADFHV,1NDTV,1ZR#,2ZRFAE..ADE15#,NDE150,ZRE15#201103

main17451-0J021i2ZRFXE..ZWE150201006-201102

sub17451-0J022

main17451-0J022i2ZRFXE..ZWE150201103

main90917-06089i1NRFE..NRE150..3D200811-201001

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-0D100i4ZZFE..ZZE150200702-201001

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-0J030i2ADFHV..ADE157200702-200807

sub17565-0J031

main17565-0J031i1NDTV,1ZRFE..NDE150,ZRE151200810-201001

(L)

main17565-0J031i2ZRFXE..ZWE150200912

main17565-22040i1ADFTV,2ADFHV..ADE15#200810-201001

(J)

main17565-22040i2ADFHV..ADE157200702-200810

5305

5801

8401

90105W0155

main90105-W0155

90109W0005

main90109-W0005

90109W0006

main90109-W0006

9050135035

main90501-35035

9050135037

main90501-35037

16 parts on this diagram · 8 diagrams in section
