WATER PUMP

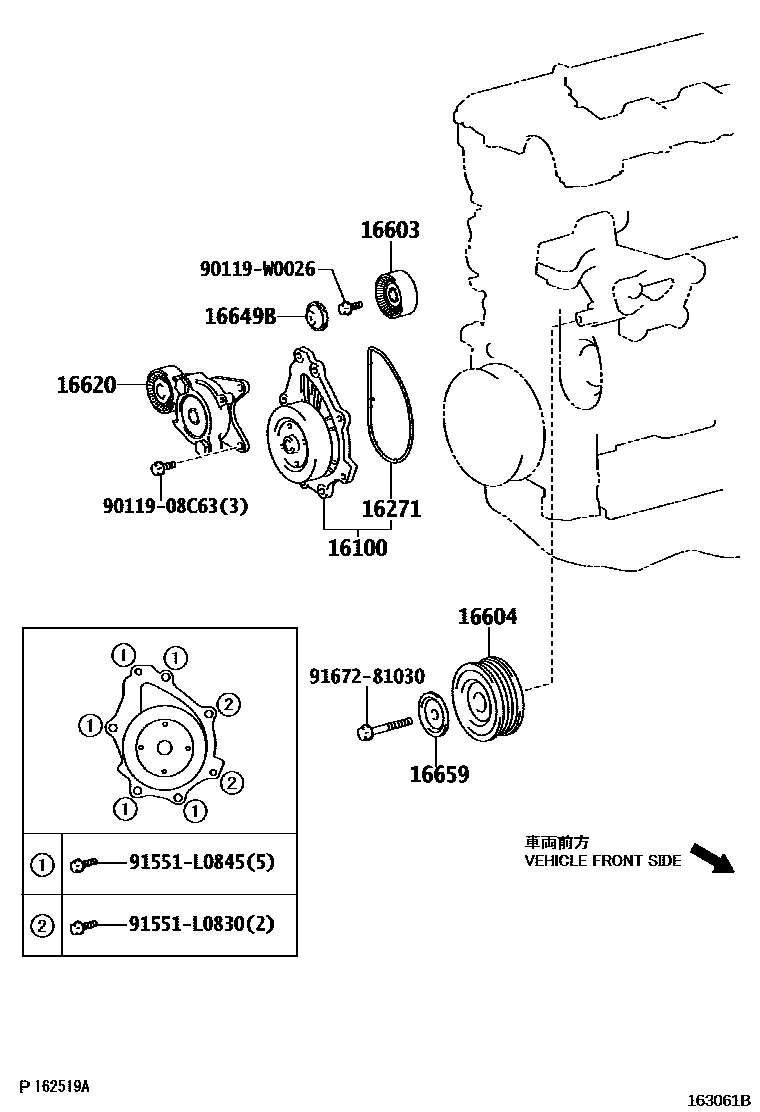

Parts diagram
16100PUMP ASSY, ENGINE WATER
main16100-09310i200702-200811
(L)
sub16100-29415
main16100-09340i200702-201001
sub16100-09341
main16100-09500i200810-200909
(L)
sub16100-09501
sub91551-80825
main16100-09501i200909-201001
(L)
sub16100-09502
main16100-29415i200702-200811
(J)
main16100-39395i200702-200902
main16100-39465i200702-200906
(J)
sub16100-39466
sub91551-80825
main16100-39466i200906-201001
(J)
main16100-39525i200902-201210
sub16100-39526
main16100-80004i200811-201305
sub16100-80010
sub91552-81050
main161A0-29015i201204
main161A0-39015i201006-201204
sub161A0-29015
16271GASKET, WATER PUMP
main16271-26010i200702-201001
main16271-33020i200702-200902
main16271-33030i201008-201210
*251
main16271-33030i200912-201210
*132
main16271-33030i200902-201001
main16271-37010i200702-201211
main16271-37020i201006-201210
main16271-47031i200811-201305
16603PULLEY SUB-ASSY, IDLER, NO.1
main16603-0R010i200702-201001
16604PULLEY SUB-ASSY, IDLER, NO.2
main16604-26010i200702-200704
sub16604-26011
main16604-26011i200704-201001
sub16604-26012
16620TENSIONER ASSY, V-RIBBED BELT
main16620-0R010i200702-201001
main16620-22012i200702-200811
sub16620-22013
main16620-33020i200902-201210
sub16620-33021
main16620-47010i200811-201305
16649BPLATE, IDLER PULLEY COVER
main16649-0R010i200702-201001
16659PLATE, IDLER PULLEY COVER, NO.2
main16659-26010i200702-201001
9011908C63
main90119-08C63
90119W0026
main90119-W0026
91551L0830
main91551-L0830
91551L0845
main91551-L0845
9167281030
main91672-81030

12 parts on this diagram · 7 diagrams in section
