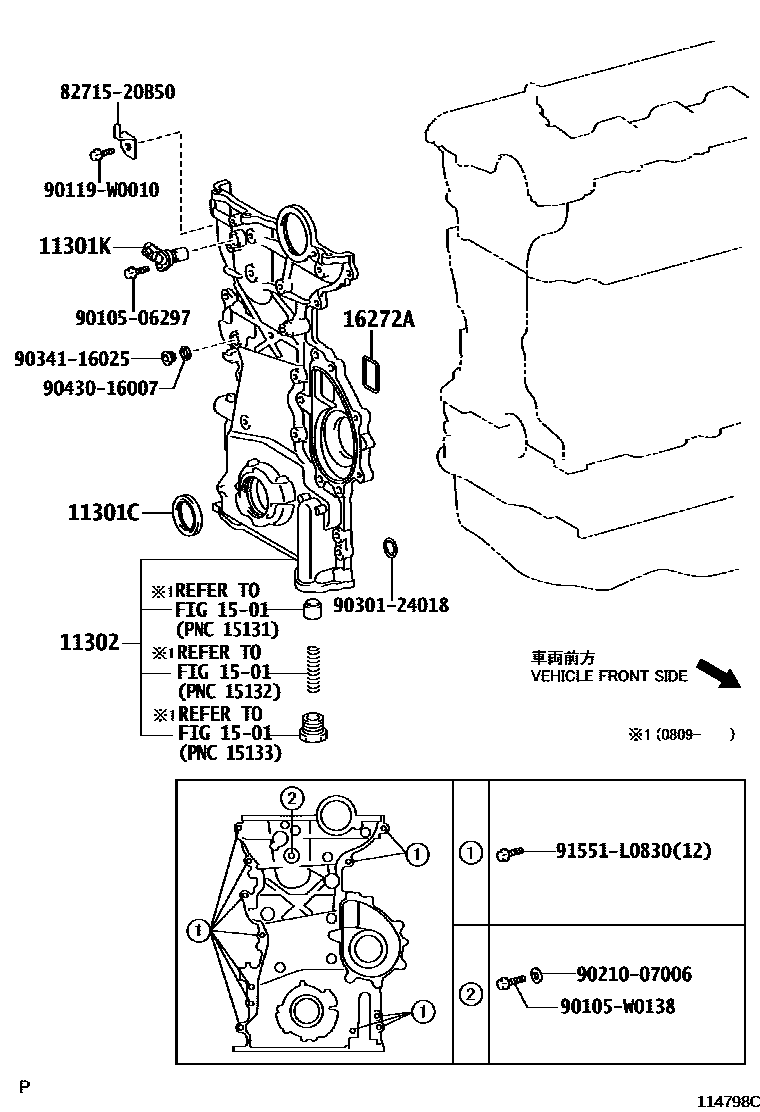

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-W0005i1ADFTV,2ADFHV..ADE15#200702-200807

sub90311-W0009

main90311-W0009i1ADFTV,2ADFHV..ADE15#200807-201001

sub90311-W0019

11301KSENSOR, CRANK POSITION

main90919-05029i1ADFTV,2ADFHV..ADE15#200702-201001

main90919-05030i4ZZFE..ZZE150200702-200811

main90919-05073i1NRFE..NRE150200811-201305

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-0R011i1ADFTV,2ADFHV..ADE15#200702-200809

sub11302-26020

main11302-0R020i1ADFTV,2ADFHV..ADE15#..LHD200809-201001

main11310-0T070i1ZR#..ZRE151;2ZRFAE..ZRE152..LHD..SOL200810-201211

(L)

sub11310-0T071

main11310-33010i1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA200912-201009

*132

sub11310-33040

sub13559-33021

main11310-33010i1NDTV..NDE150..DCR201008-201011

*251

sub11310-33040

sub13559-33021

main11310-33010i1NDTV..NDE150200902-201001

sub11310-33040

sub13559-33021

main11310-33011i1NDTV..NDE150201011-201210

*251

sub11310-33012

main11310-33011i1NDTV..NDE150201009-201210

*132

sub11310-33012

main11310-37010i1ZRFAE,2ZRFAE..ZRE15#..5D200702-201201

(J)

sub11310-37011

main11310-37011i1ZR#,2ZRFAE..ZRE15#201201-201211

(J)

main11310-37060i2ZRFXE..ZWE150201006-201204

sub11310-37062

main11310-37062i2ZRFXE..ZWE150201204-201210

main11310-47010i1NRFE..NRE150200811-200907

sub11310-47011

main11310-47011i1NRFE..NRE150200907-201305

sub11310-47012

sub91552-81050

sub91671-10825

main11321-0D020i4ZZFE..ZZE150200702-200811

(L)

main11321-22021i4ZZFE..ZZE150200702-200811

(J)

1501

16272AGASKET, WATER PUMP NO.2

main16272-26010i1ADFTV,2ADFHV..ADE15#200702-201001

8271520B50BRACKET,WIRING HARNESS CLAMP

main82715-20B50

9010506297

main90105-06297

90105W0138

main90105-W0138

90119W0010

main90119-W0010

9021007006

main90210-07006

9030124018

main90301-24018

9034116025

main90341-16025

9043016007

main90430-16007

91551L0830

main91551-L0830

14 parts on this diagram · 6 diagrams in section
