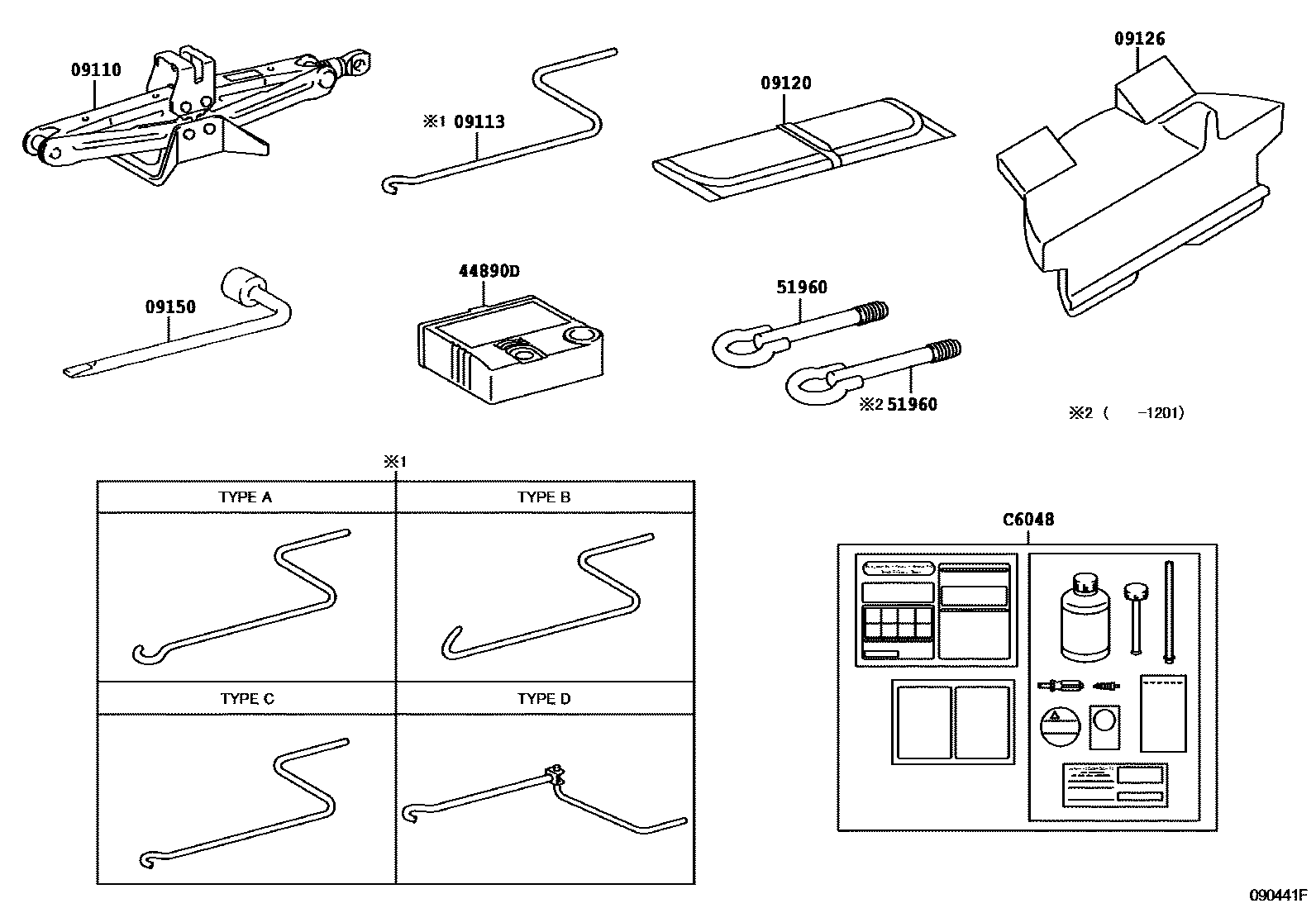

STANDARD TOOL
09110JACK ASSY
LIGHT&SPARE TIRE-WITHOUT(WITH/REPAIR KIT),*153
sub09111-0F020
LIGHT&SPARE TIRE-WITHOUT,*153
sub09111-0F020
LIGHT&SPARE TIRE-WITHOUT(WITH/REPAIR KIT),*154
sub09111-05052
JACK-WITH&SPARE TIRE-TEMPORARY(T125/70D17)&LUGGAGE TRAY-WITH(SPARE TIRE)
sub09111-05052
JACK-WITH&SPARE TIRE-TEMPORARY(T125/70D17)&LUGGAGE TRAY-WITH(LOW FLOOR)
sub09111-05052
main09111-0F020iADE15#..LHD;NRE150,ZRE151;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA200912-201105
LIGHT&SPARE TIRE-WITHOUT(WITH/REPAIR KIT),*154
sub09111-05050
main09111-0F020iADE15#..LHD;NRE150,ZRE151;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA200912-201105
LIGHT&SPARE TIRE-WITHOUT,*154
sub09111-05050
09113HANDLE, JACK
SPARE TIRE-GROUND TIRE(STEEL WHEEL 195/65R15),TYPE C:REFER ILLUST.
SPARE TIRE-GROUND TIRE(STEEL WHEEL 205/55R16),TYPE C:REFER ILLUST.
TYPE C:REFER ILLUST.
TYPE B:REFER ILLUST.
LIGHT&SPARE TIRE-WITHOUT,TYPE D:REFER ILLUST.
TYPE D:REFER ILLUST.
LIGHT,TYPE D:REFER ILLUST.
LIGHT&SPARE TIRE-WITHOUT(WITH/REPAIR KIT),TYPE D:REFER ILLUST.
09120BAG, TOOL
main09120-02050iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)200702-201001
sub09120-10040
main09120-02050iADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151..MTM200912-201104
LIGHT
sub09120-10040
main09120-02050iADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151..MTM200912-201104
LIGHT&SPARE TIRE-WITHOUT(WITH/REPAIR KIT)
sub09120-10040
main09120-02050iADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151..MTM200912-201104
LIGHT&SPARE TIRE-WITHOUT
sub09120-10040
LIGHT
LIGHT&SPARE TIRE-WITHOUT(WITH/REPAIR KIT)
LIGHT&SPARE TIRE-WITHOUT
JACK-WITH
LUGGAGE TRAY-WITH(LOW FLOOR)
JACK-WITH&SPARE TIRE-TEMPORARY(T125/70D17)&LUGGAGE TRAY-WITH(LOW FLOOR)
JACK-WITH&LUGGAGE TRAY-WITH(LOW FLOOR)
09126BOX, JACK
main09126-02010
09150WRENCH, HUB NUT BOX
44890DCOMPRESSOR ASSY, AIR
sub44890-42010
TIRE & DISC WHEEL-225/45R17 7J ALUMI&SPARE TIRE-WITHOUT(WITH/REPAIR KIT)
sub44890-42010
51960HOOK ASSY, FRONT
C6048REPAIR SET, TIRE
subC6048-47021
LIGHT&SPARE TIRE-WITHOUT(WITH/REPAIR KIT)
subC6048-47021
TIRE & DISC WHEEL-225/45R17 7J ALUMI&SPARE TIRE-WITHOUT(WITH/REPAIR KIT)
subC6048-47021
TIRE & DISC WHEEL-225/45R17 7J ALUMI&SPARE TIRE-WITHOUT(WITH/REPAIR KIT)
subC6048-47022
8 parts on this diagram · 1 diagram in section
