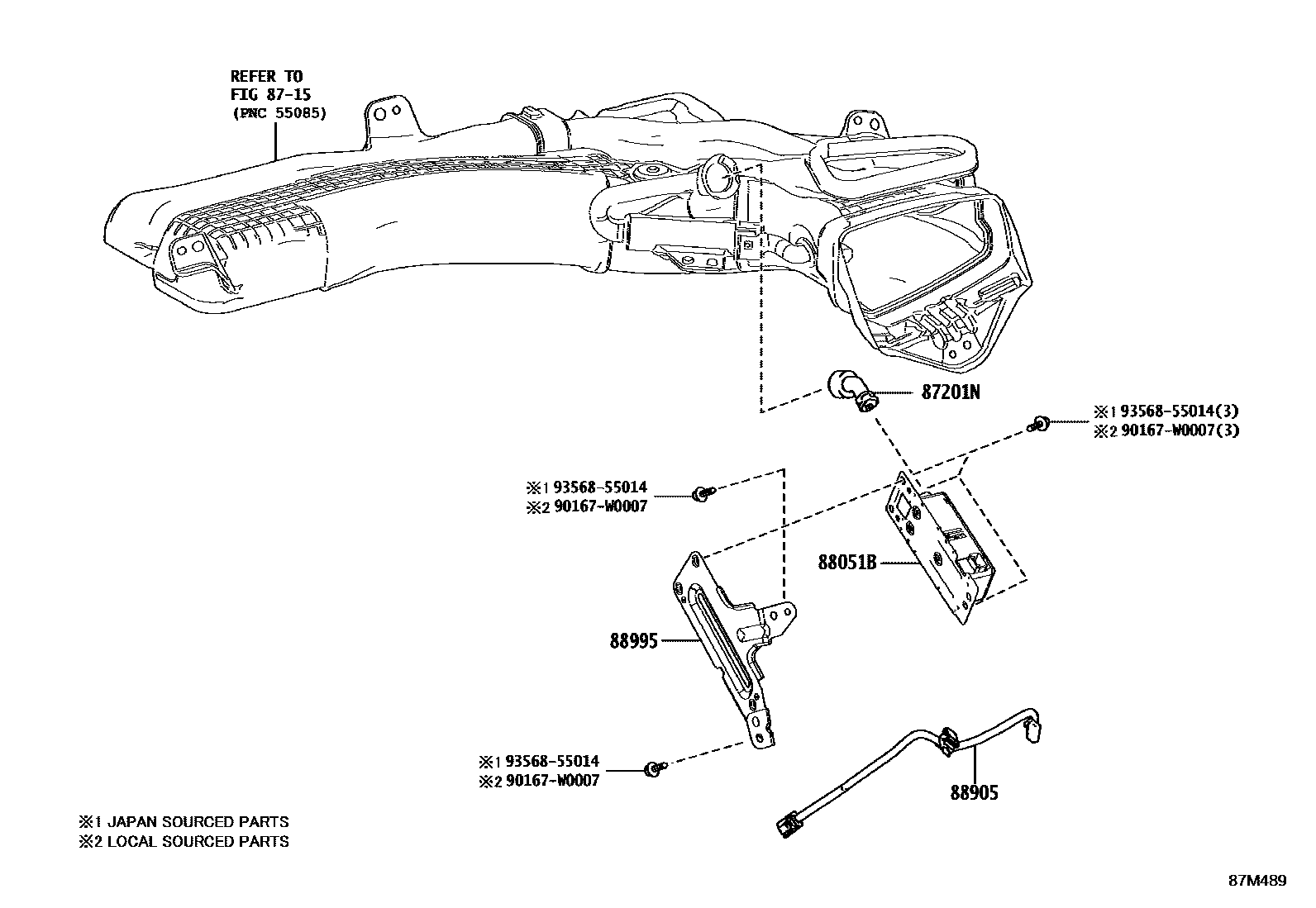

AIR PURIFIER OR ION GENERATOR

0001 1 0002 1

8715

87201NDUCT SUB-ASSY, AIR

main87201-02290iMZEH19,ZWE219..G,N,S202401

MINUS ION GENERATOR-NANOE-X

88051BGENERATOR SUB-ASSY, ION, NO.1

main88051-48010iMZEH19,ZWE219..G,N,S202401

MINUS ION GENERATOR-NANOE-X

88905WIRE SUB-ASSY, AIR PURIFIER, NO.1

main82144-02160iMZEH19,ZWE219..LHD..(G,N,S)202401

MINUS ION GENERATOR-NANOE-X

main82144-02170iMZEH19,ZWE219..RHD..(G,N,S)202401

MINUS ION GENERATOR-NANOE-X

88995BRACKET,ION GENERATOR, NO.1

main88995-02090iMZEH19,ZWE219..LHD..(G,N,S)202401

MINUS ION GENERATOR-NANOE-X

main88995-12010iMZEH19,ZWE219..RHD..(G,N,S)202401

MINUS ION GENERATOR-NANOE-X

90167W0007

main90167-W0007

9356855014

main93568-55014

7 parts on this diagram · 2 diagrams in section
