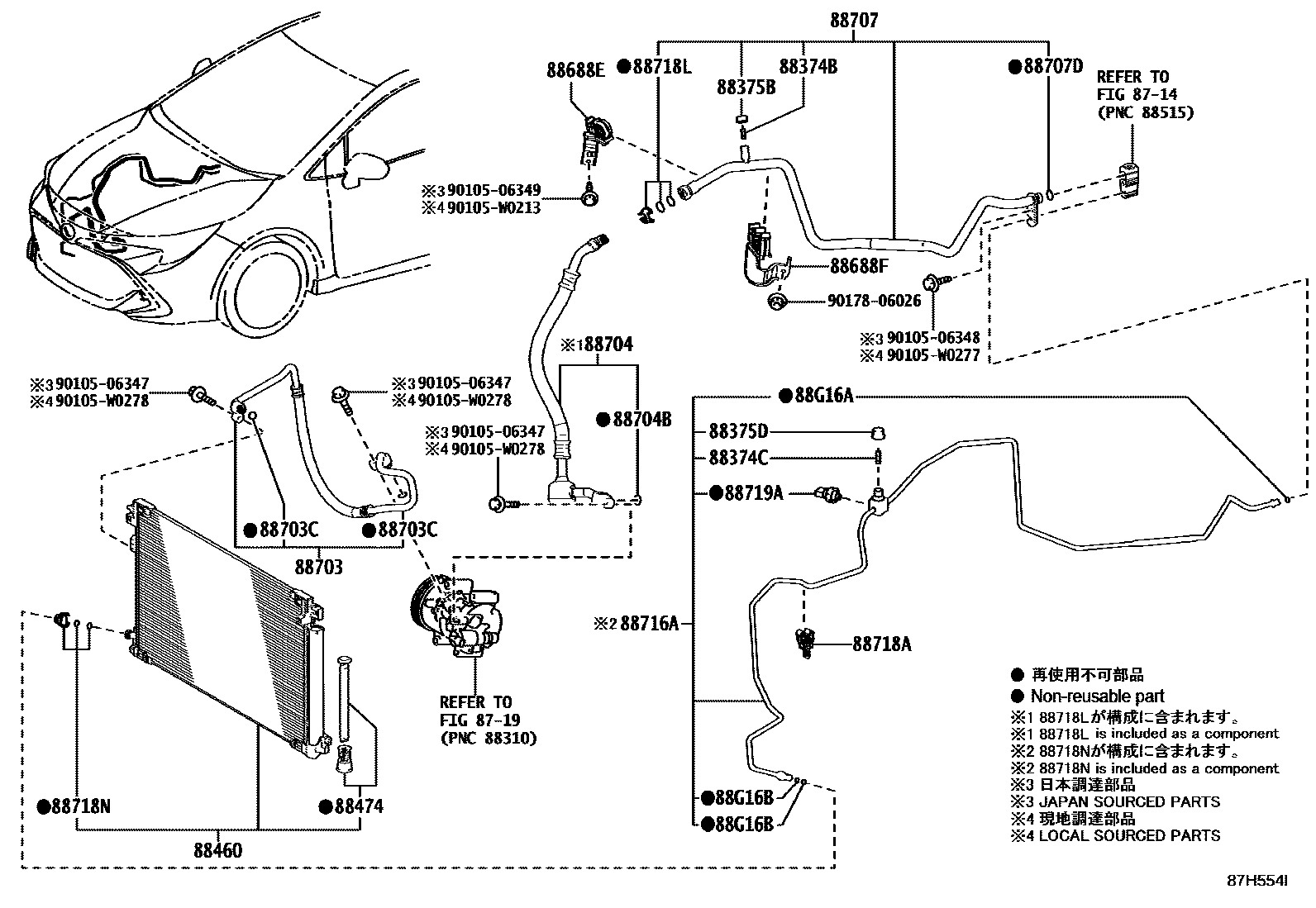

HEATING & AIR CONDITIONING - COOLER PIPING
8714
8719
88374BVALVE, SERVICE, NO.1
LIGHT GRADE
88374CVALVE, SERVICE, NO.2
REFRIGERANT CORRESPONDENCE-HFC134A
LIGHT GRADE
REFRIGERANT CORRESPONDENCE-HFC134A
88375BCAP, SERVICE VALVE, NO.1
REFRIGERANT CORRESPONDENCE-HFC134A
LIGHT GRADE
88375DCAP, SERVICE VALVE, NO.2
REFRIGERANT CORRESPONDENCE-HFC134A
LIGHT GRADE
88460CONDENSER ASSY, COOLER
LIGHT GRADE
REFRIGERANT CORRESPONDENCE-HFC134A
88474DRYER, COOLER
LIGHT GRADE
88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1
LIGHT GRADE
88688FBRACKET, COOLER REFRIGERANT HOSE, NO.2
LIGHT GRADE
88703HOSE SUB-ASSY, DISCHARGE
AIR CONDITIONER-WITHOUT
88703CRING, O(FOR DISCHARGE HOSE)
ID=10.8,OD=15.6
88704HOSE SUB-ASSY, SUCTION
AIR CONDITIONER-WITHOUT
88704BRING, O(FOR SUCTION HOSE)
ID=13.4,OD=18.2
88707PIPE SUB-ASSY, SUCTION
REFRIGERANT CORRESPONDENCE-HFC134A
LIGHT GRADE
REFRIGERANT CORRESPONDENCE-HFC134A
REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL&FUEL CAUTION LABEL-ENGLISH&MOROCCO SPEC&CATALYTIC CONVERTER-9R-08 & 11R-08
88707DRING, O(FOR SUCTION TUBE)
ID=13.4,OD=18.2,OUTSIDE EUROPE&RUSSIA SPEC&AIR CONDITIONER-WITHOUT
ID=13.4,OD=18.2
88716APIPE, COOLER REFRIGERANT LIQUID, A
REFRIGERANT CORRESPONDENCE-HFC134A
LIGHT GRADE
REFRIGERANT CORRESPONDENCE-HFC134A
REFRIGERANT CORRESPONDENCE-HFC134A
REFRIGERANT CORRESPONDENCE-HFC134A
REFRIGERANT CORRESPONDENCE-HFC134A
88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)
LIGHT GRADE
88718LCLAMP, PIPING
LIGHT GRADE
88718NCLAMP, PIPING
LIGHT GRADE
88719ASENSOR, AIR CONDITIONER PRESSURE
LIGHT GRADE
88G16ARING, O, NO.1(FOR COOLER REFRIGERANT LIQUID PIPE)
ID=6.7,OD=10.3,LIGHT GRADE
88G16BRING, O, NO.2(FOR COOLER REFRIGERANT LIQUID PIPE)
ID=6.7,OD=10.3
9010506347
main90105-06347
9010506348
main90105-06348
9010506349
main90105-06349
90105W0213
main90105-W0213
90105W0277
main90105-W0277
90105W0278
main90105-W0278
9017806026
main90178-06026
30 parts on this diagram · 6 diagrams in section
