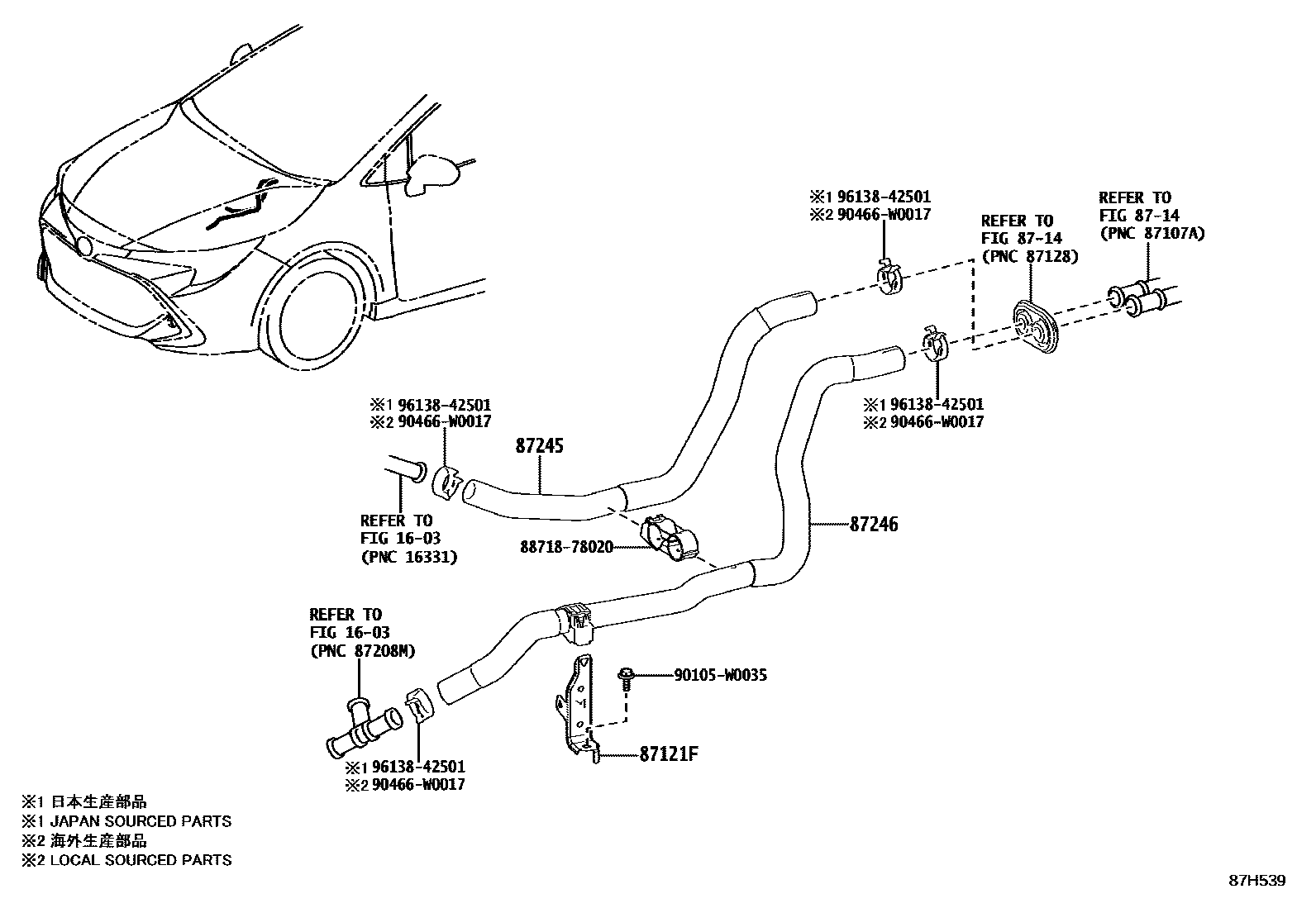

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1COLD AREA SPEC

1603

87121FBRACKET, HEATER

main87121-02080iNRE210..6F201901

8714

87245HOSE, HEATER WATER, INLET

main87209-47010iZWE219202301

main87245-02R30iNRE210201901

main87245-F4030iZWE211201901

87246HOSE, HEATER WATER, OUTLET

main87209-02350iNRE210..6F201901

main87209-02360iNRE210..CVT201901

main87209-47030iZWE219202301

main87245-F4040iZWE211201901

8871878020PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-78020

90105W0035

main90105-W0035

90466W0017

main90466-W0017

9613842501

main96138-42501

9 parts on this diagram · 6 diagrams in section
