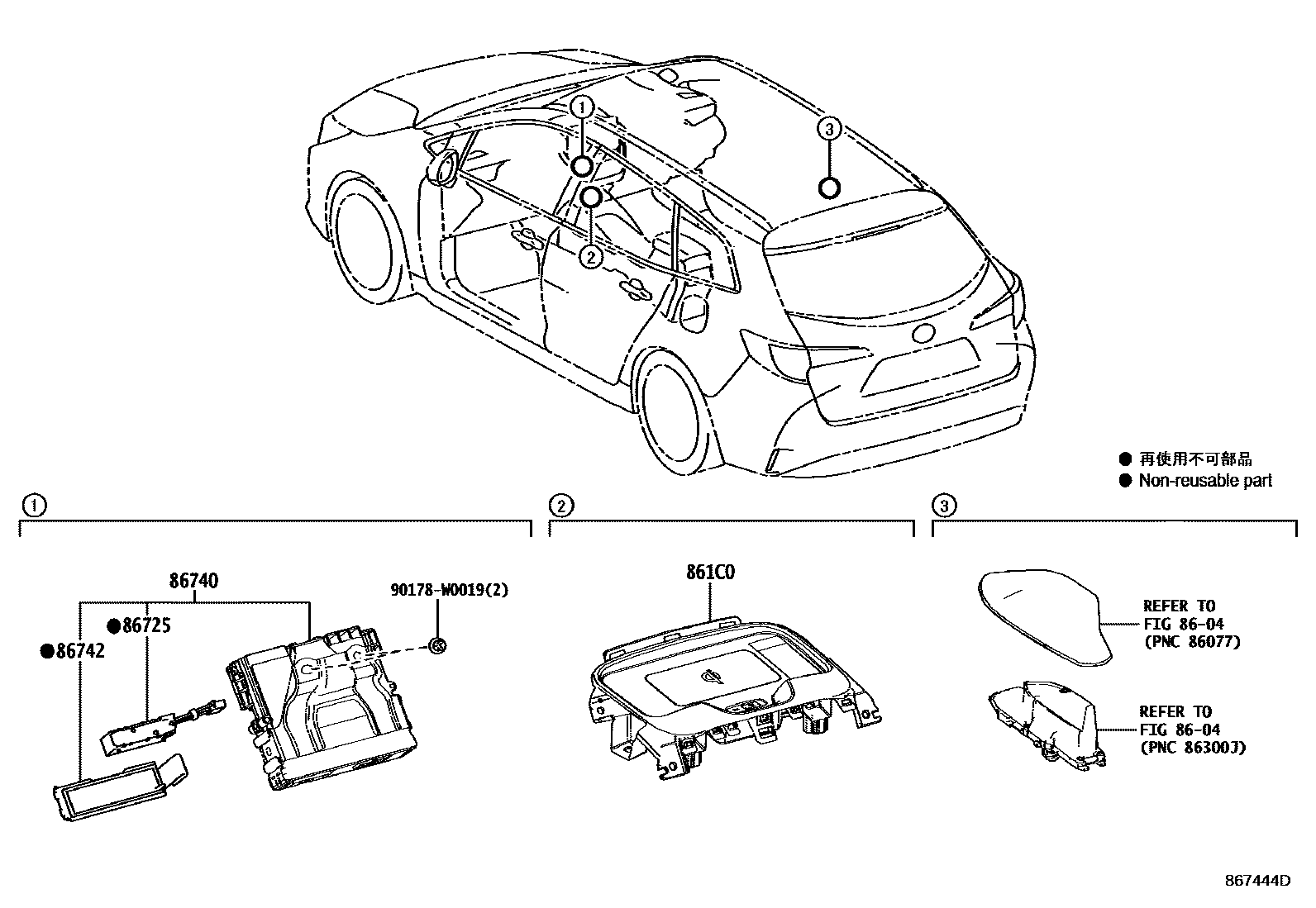

TELEPHONE & MAYDAY

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

8604

861C0CRADLE ASSY, MOBILE WIRELESS CHARGER

main861C0-02010iMZEH12,NRE210,ZWE211..(D,N)..EUR201901

WIRELESS CHARGER-WITH

main861C0-02020iMZEH12,NRE210,ZWE211..(D,N)..EUR201901

WIRELESS CHARGER-WITH

main861C0-02070iMZEH19,ZWE219..D,N,S202301

WIRELESS CHARGER-WITH

main861C0-02080iZWE219..WG..D202301-202401

WIRELESS CHARGER-WITH

main861C0-02081iZWE219..WG..D202402

WIRELESS CHARGER-WITH

86725BATTERY, MOBILEPHONE

main86725-33010iMZEH12,NRE210,ZWE211..EUR201901-202010

DATA COMMUNICATION MODULE-WITHOUT

sub86725-26010

main86725-78010iMZEH12,NRE210,ZWE211..EUR202010

main86725-78011iZWE219..LHD..HB..(D,G,N)202408

MOROCCO SPEC

86740TRANSCEIVER ASSY, TELEPHONE

main86740-02160iMZEH12,NRE210,ZWE211..LHD..EUR202010-202110

NTA SPEC(EUROPE)

main86740-02161iNRE210..LHD..EUR;MZEH12,ZWE211..LHD..(D,N)202111

NTA SPEC(EUROPE)

main86740-02210iMZEH12,ZWE211..LHD..N202201

NTA SPEC(EUROPE)

main86740-02270iZWE219..LHD..HB..(D,G,N)202301

MOROCCO SPEC

main86740-12040iMZEH12,NRE210,ZWE211..LHD..EUR201901-201910

NTA SPEC(EUROPE)

main86740-12041iMZEH12,NRE210,ZWE211..LHD..EUR201911-202010

NTA SPEC(EUROPE)

main86740-02240iMZEH19,ZWE219..LHD..(D,G,N,S)202301

TURKEY SPEC

main86740-0D040iMZEH12,NRE210,ZWE211..LHD..EUR202010-202110

TURKEY SPEC

main86740-0D041iNRE210..LHD..EUR;MZEH12,ZWE211..LHD..(D,N)202111

TURKEY SPEC

main86740-12140iMZEH12,NRE210,ZWE211..LHD..EUR202003-202010

TURKEY SPEC

86742COVER, TRANSCEIVER

main86742-0D020iZWE219..LHD..HB..(D,G,N)202301

MOROCCO SPEC

main86742-33010iMZEH12,NRE210,ZWE211..EUR201901-202010

DATA COMMUNICATION MODULE-WITHOUT

90178W0019

main90178-W0019

6 parts on this diagram · 6 diagrams in section
