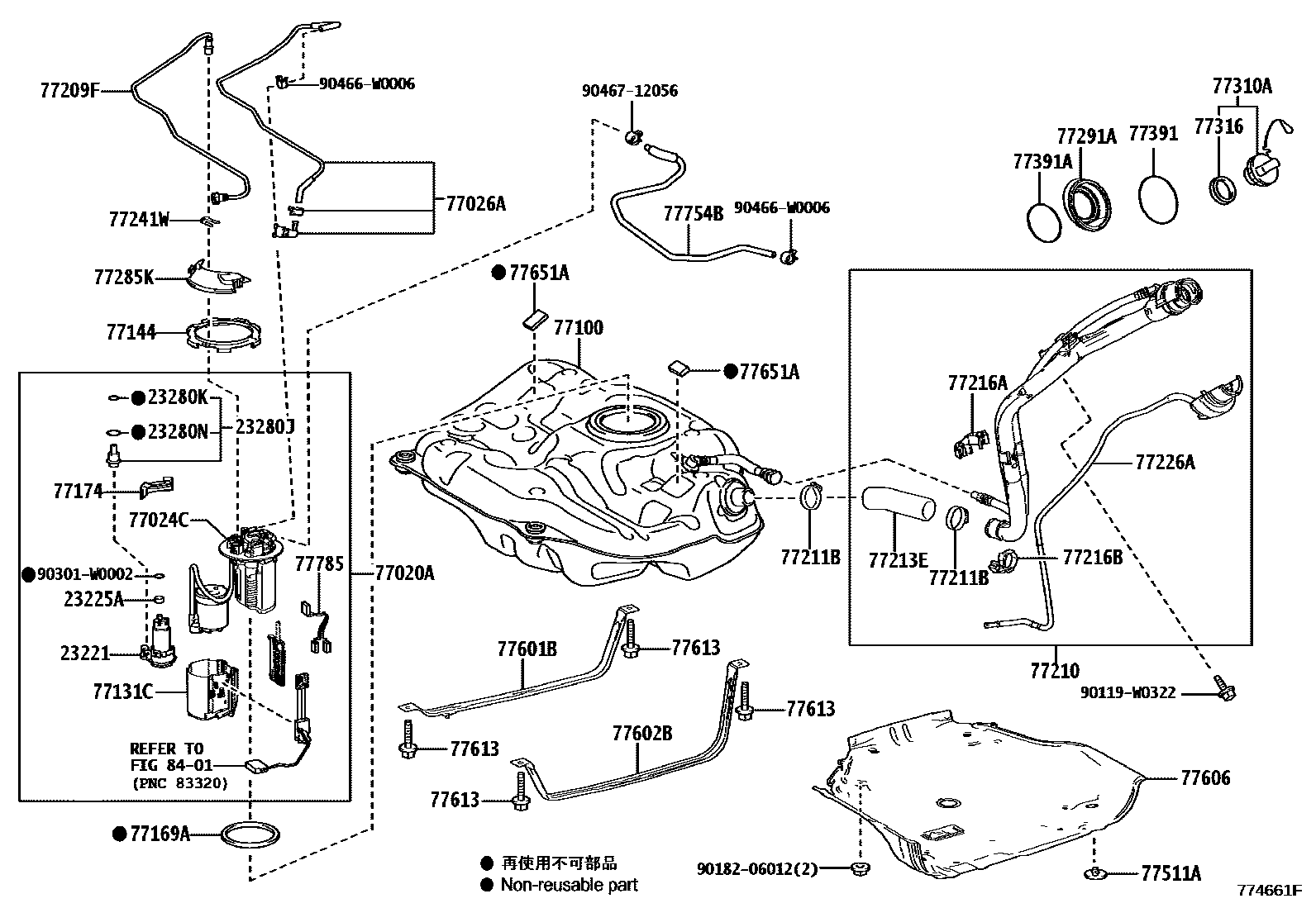

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TUBE 0005 1FUEL TUBE 0006 1FUEL TUBE 0007 1FUEL TUBE 0008 1FUEL TUBE 0009 1FUEL LID OPENER 0010 1FUEL LID OPENER

23221PUMP, FUEL

main23220-0Y090i8NRFTS..NRE210201901

23225ASPACER, FUEL PUMP

main23225-0T010i2ZRFXE..ZWE219201901

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-21010i2ZRFXE..ZWE219201901

main23280-36020i8NRFTS..NRE210201901

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i8NRFTS,2ZRFXE..NRE210,ZWE211201901

23280NRING, O(FOR FUEL PRESSURE REGULATOR), NO.2

main90301-15024i8NRFTS,2ZRFXE..NRE210,ZWE211201901

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-02C21iZWE219201901

main77020-02C50iMZEH12201902

main77020-F4020iNRE210201901

77024CPLATE SUB-ASSY, FUEL SUCTION W/FUEL FILTER

main77024-F4050iNRE210201901

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-02150iMZEH12,ZWE211201901

main77026-F4010iNRE210201901

77100TANK ASSY, FUEL

main77001-02A20iNRE210201901

sub77001-F4092

main77001-F4100iMZEH12,ZWE211201901-202306

main77001-F4101iMZEH19,ZWE219202307

77131CSUB-TANK, FUEL, NO.1

main77131-F4010iNRE210201901

77144RETAINER, FUEL PUMP GAUGE

main77144-F4010iMZEH12,NRE210,ZWE211201901

77169AGASKET, FUEL SUCTION TUBE SET

main77169-F4050iMZEH12,NRE210,ZWE211201901

77174SUPPORT, FUEL SUCTION, NO.1

main77174-05010iNRE210201901

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-02380iMZEH19,ZWE219201901

main77209-F4110iNRE210201901

77210PIPE ASSY, FUEL TANK FILLER

main77210-02690iMZEH12,NRE210,ZWE211201901-201904

sub77210-02691

main77210-02691iMZEH12,NRE210,ZWE211201904-201905

sub77210-02692

main77210-02692iMZEH12,NRE210,ZWE211201906-202104

sub77210-02A00

main77210-02A00iMZEH12,NRE210,ZWE211202104

77211BCLAMP (FOR FUEL FILLER PIPE)

main90460-50008iMZEH12,NRE210,ZWE211201901-201906

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-F4010iMZEH12,NRE210,ZWE211201901-201904

sub77213-F4040

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-F4010iMZEH12,NRE210,ZWE211201901

77216BSUPPORT, FUEL TANK FILLER PIPE, NO.2

main77216-F4030iMZEH12,NRE210,ZWE211201901

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-02130iMZEH12,NRE210,ZWE211201901-201905

sub77226-02131

main77226-02131iMZEH12,NRE210,ZWE211201906

77241WCLIP, TUBE JOINT

main77241-32060iMZEH12,NRE210,ZWE211201901

77285KCLAMP, FUEL TUBE, NO.1

main77285-10060iNRE210201901

main77285-30350iMZEH12,ZWE211201901

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-02350iMZEH12,NRE210,ZWE211201901

77310ACAP ASSY, FUEL TANK

main77300-12020iMZEH19,ZWE219202301

main77300-48020iMZEH12,NRE210,ZWE211201901

77316GASKET, FUEL TANK CAP

main77316-52040iMZEH19,ZWE219202301

main77316-75020iMZEH12,NRE210,ZWE211201901

77391RING, FUEL INLET BOX

main77391-20040iMZEH12,NRE210,ZWE211201901

77391ARING, FUEL INLET BOX

main77391-12020iMZEH12,NRE210,ZWE211201901

77511ABRACKET, FUEL TANK

main77512-35140iMZEH12,NRE210,ZWE211201901

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-F4010iNRE210201901

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-F4010iNRE210201901

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-F4020iNRE210201901

77613BOLT, FUEL TANK BAND SET

main90119-W0120iNRE210201901

77651ACUSHION, FUEL TANK, NO.1

main77651-F4010iNRE210201901

77754BHOSE, CHARCOAL CANISTER OUTLET

main77754-02190iMZEH12,ZWE211201901

main77754-F4010iNRE210201901

77785HARNESS, FUEL PUMP

main77785-02081iNRE210201901

(L)

main77785-02160iZWE211201901

main77785-12010iNRE210201901

(J)

main77785-76010iMZEH19201902

8401

90119W0322

main90119-W0322

9018206012

main90182-06012

90301W0002

main90301-W0002

90466W0006

main90466-W0006

9046712056

main90467-12056

41 parts on this diagram · 10 diagrams in section
