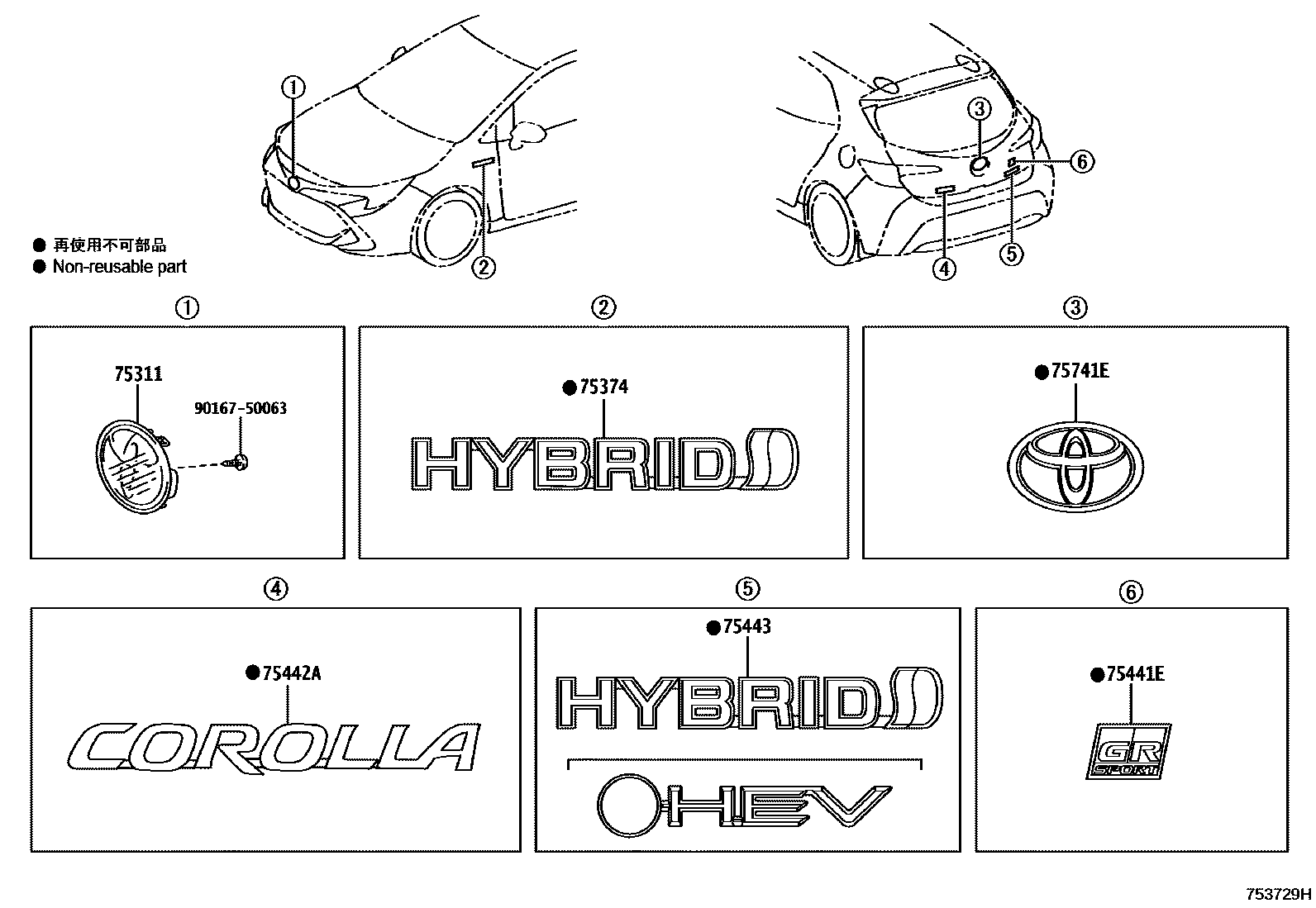

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main53141-12270iMZEH19,ZWE219..S202312

main53141-12280iMZEH19,ZWE219..C,D,G,N,P202312

main75310-02050iNRE210..GEN201901

main90975-02124iMZEH19,ZWE219..S201901-202311

main90975-02136iMZEH19,ZWE219..C,D,G,N,P201901-202311

75374EMBLEM, SIDE PANEL

main75374-02210iMZEH12,ZWE211201901-202201

RH

main75374-02220iMZEH12,ZWE211201901-202201

LH

75441EPLATE, BACK DOOR NAME, NO.1

main75441-YY220iMZEH19,ZWE219..HB..S202301

GR SPORT

main75441-YY240iMZEH19,ZWE219..WG..S202301

GR SPORT

75442APLATE, BACK DOOR NAME, NO.2

main75442-02430iMZEH12,NRE210,ZWE211..WG..N201902

COROLLA

main75442-02430iMZEH12,NRE210,ZWE211..WG201902

COROLLA,MODEL NAME MARK-WITHOUT(LIGHT)

main75442-02431iMZEH19,ZWE219..WG202301

COROLLA

main75442-02600iMZEH12,NRE210,ZWE211..HB201901

COROLLA,(L)

main75442-02601iMZEH19,ZWE219..HB202301

COROLLA,(L)

main75442-12C00iMZEH12,NRE210,ZWE211..HB201901

COROLLA,(J)

75443PLATE, BACK DOOR NAME, NO.3

main75440-02080iMZEH19,ZWE219202401

HEV

main75443-02300iMZEH12,ZWE211..HB201901

HYBRID

main75443-02301iMZEH19,ZWE219..HB202301-202401

HYBRID

main75443-02330iMZEH12,ZWE211..WG201902

HYBRID

main75443-02331iMZEH19,ZWE219..WG202301-202401

HYBRID

75741EEMBLEM, SYMBOL

main75403-02050iMZEH12,ZWE211201901

main75403-02051iMZEH19,ZWE219..C,D,G,N,P202301

main75403-02111iMZEH19,ZWE219..WG..S202301

main75431-0D050iNRE210201901

main75431-0D051iMZEH19,ZWE219..HB..S202301

9016750063

main90167-50063

7 parts on this diagram · 2 diagrams in section
