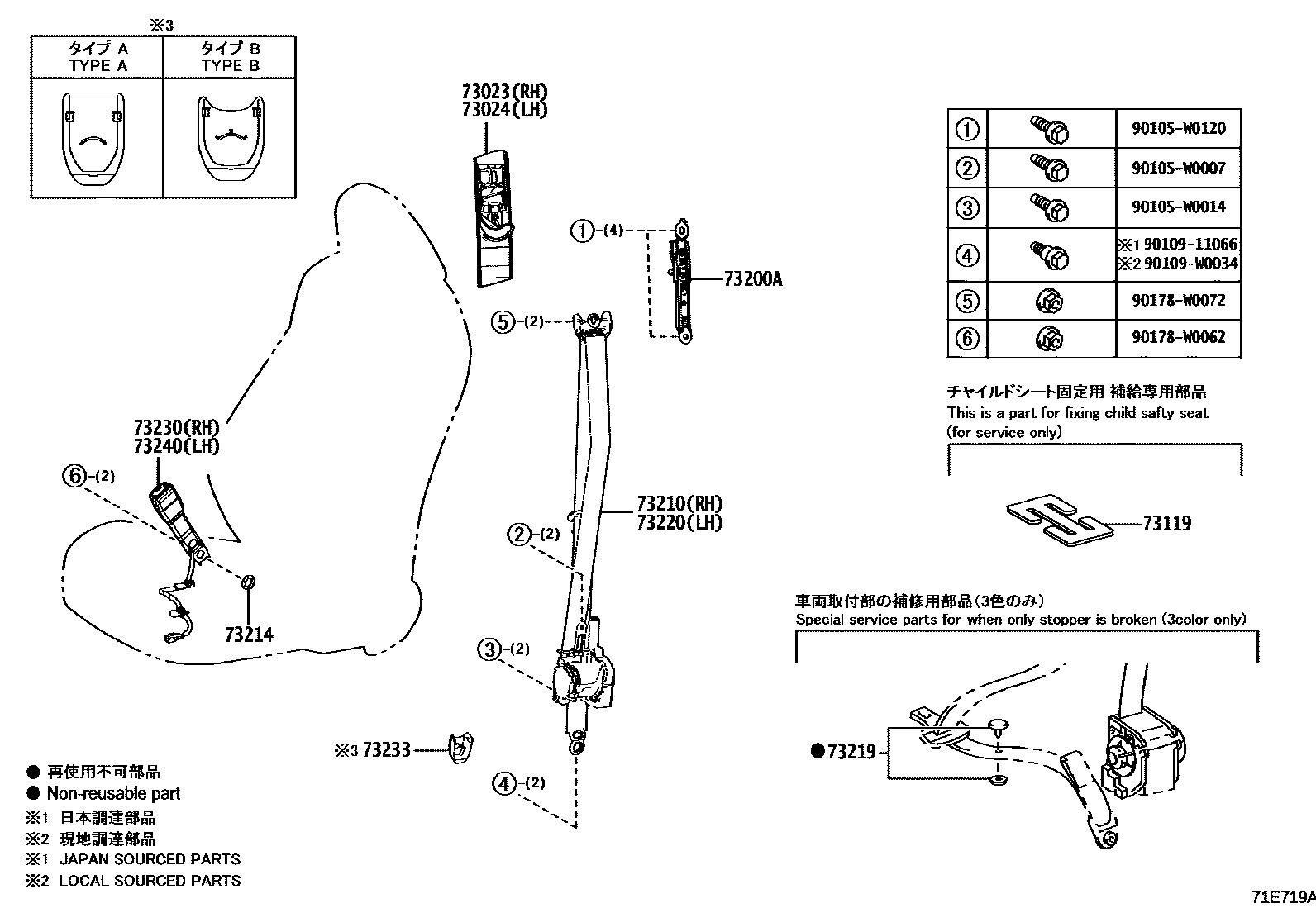

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT BELT 0002 1REAR SEAT BELT 0003 1REAR SEAT BELT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-02100-C0iMZEH19,ZWE219202301

BLACK,TRIM2#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-02100-C0iMZEH12,NRE210,ZWE211201901

BLACK,TRIM1#,2#

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iMZEH19,ZWE219202301

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-F4010×2iMZEH19,ZWE219202301

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-02690-C0iMZEH12,NRE210,ZWE211201901-202209

BLACK,TRIM1#,2#

main73210-02691-C0iMZEH19,ZWE219202301

BLACK,TRIM2#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-75010×2iMZEH19,ZWE219..D,G,N,P,S202301

73219STOPPER, TONGUE PLATE

main73219-33010iMZEH12,NRE210,ZWE211202007

BLACK

main73219-33020iMZEH12,NRE210,ZWE211202007

GRAY

main73219-33030iMZEH19,ZWE219202301

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-02630-C0iMZEH12,NRE210,ZWE211201901-202209

BLACK,TRIM1#,2#

main73220-02631-C0iMZEH19,ZWE219202301

BLACK,TRIM2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-02B70-C0iNRE210,ZWE211..RHD..D201901

BLACK,TRIM2#

main73230-02B80-C0iMZEH12,NRE210..LHD..(G,N)201901

BLACK,TRIM2#

main73230-02B90-C0iZWE219..LHD..(C,D)202301

FRONT SEAT(VERTICAL ADJUSTER)-DRIVER SEAT & PASSENGER SEAT,BLACK,TRIM2#

73233COVER, LAP BELT OUTER ANCHOR

main73233-02040-C2×2iMZEH12,NRE210,ZWE211201901

BLACK,TRIM1#,2#

main73233-02060-C0×2iMZEH19,ZWE219202301

BLACK,TRIM2#,TYPE B

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-02B70-C0iNRE210..GEN;MZEH12,NRE210,ZWE211..LHD..(C,G,N)201901

BLACK,TRIM2#

main73230-02B80-C0iZWE219..RHD..(C,D);ZWE219..RHD..HB..N202301

BLACK,TRIM2#

main73230-02B90-C0iZWE219..RHD..(C,D)202301

FRONT SEAT(VERTICAL ADJUSTER)-DRIVER SEAT & PASSENGER SEAT,BLACK,TRIM2#

90105W0007

main90105-W0007

90105W0014

main90105-W0014

90105W0120

main90105-W0120

9010911066

main90109-11066

90109W0034

main90109-W0034

90178W0062

main90178-W0062

90178W0072

main90178-W0072

18 parts on this diagram · 3 diagrams in section
