E
EPC Data

ROOF HEADLINING & SILENCER PAD

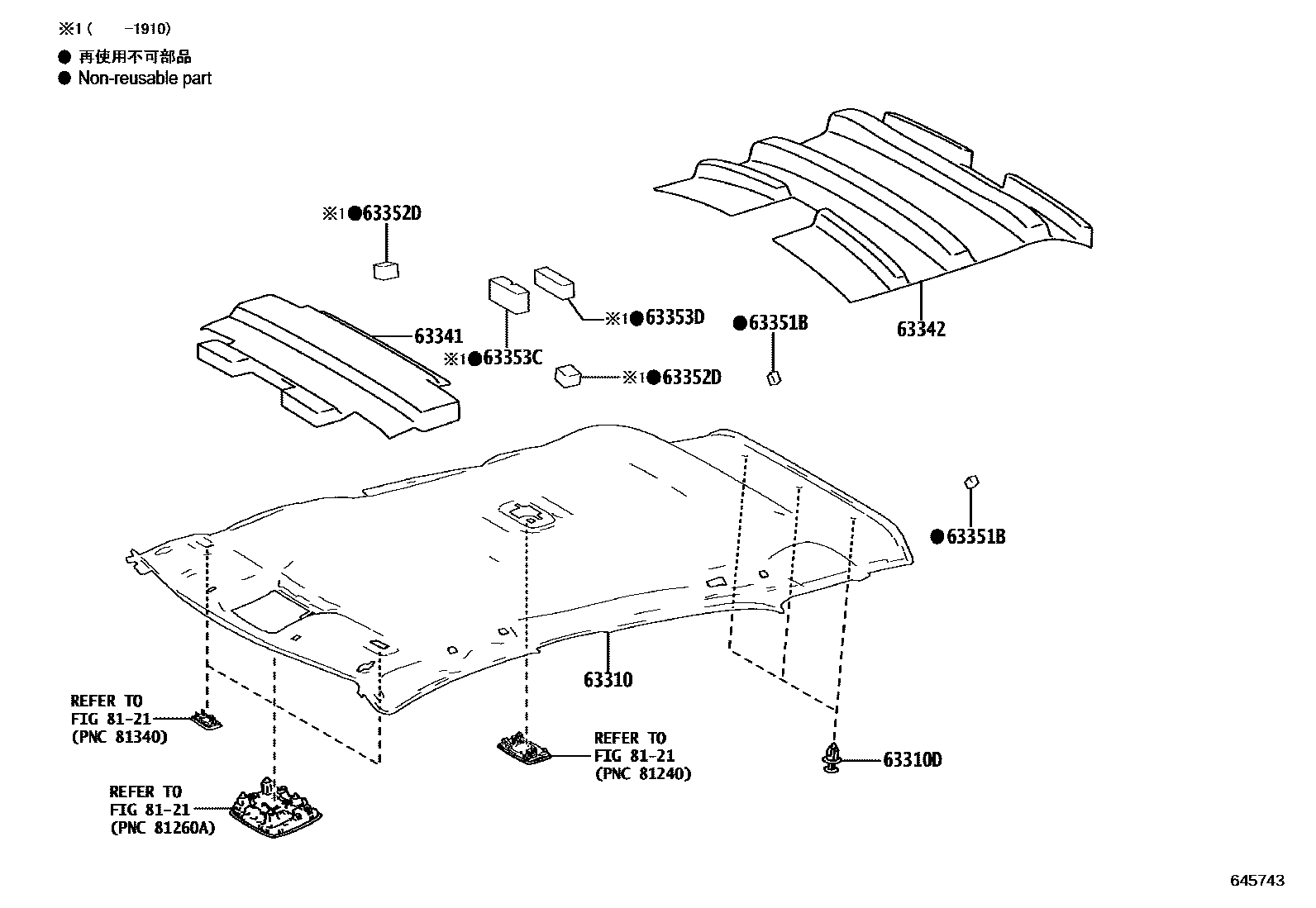

Parts diagram
63310HEADLINING ASSY, ROOF
main63310-02L70-B0i201901-202205
COOL GRAY,TRIM1#
sub63310-02L71
sub63341-02591
main63310-02L70-C1i201901-202205
BLACK,TRIM2#
sub63310-02L71
sub63341-02591
main63310-02L71-B0i202205
COOL GRAY,TRIM1#
main63310-02L71-C1i202205
BLACK,TRIM2#
main63310-02M10-B0i201901-202205
COOL GRAY,TRIM1#
sub63310-02M11
sub63341-02591
main63310-02M10-C1i201901-202205
BLACK,TRIM2#
sub63310-02M11
sub63341-02591
main63310-02M11-B0i202205
MID,COOL GRAY,TRIM1#
main63310-02M11-B0i202205
COOL GRAY,TRIM1#
main63310-02M11-C1i202205
MID,BLACK,TRIM2#
main63310-02M11-C1i202205
BLACK,TRIM2#
main63310-02M20-B0i201901-202205
COOL GRAY,TRIM1#
sub63310-02M21
sub63341-02591
main63310-02M20-C1i201901-202205
BLACK,TRIM2#
sub63310-02M21
sub63341-02591
main63310-02M21-B0i202205
COOL GRAY,TRIM1#
main63310-02M21-C1i202205
BLACK,TRIM2#
main63310-02N50-B0i201902-202205
COOL GRAY,TRIM1#
sub63310-02N51
sub63341-02591
main63310-02N50-C1i201902-202205
BLACK,TRIM2#
sub63310-02N51
sub63341-02591
main63310-02N51-B0i202205
COOL GRAY,TRIM1#
main63310-02N51-C1i202205
BLACK,TRIM2#
main63310-02N60-B0i201902-202205
MOON ROOF-WITH(PANORAMA ROOF)&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP),COOL GRAY,TRIM1#
sub63310-02N61
sub63341-02591
main63310-02N60-B0i201902-202205
COOL GRAY,TRIM1#
sub63310-02N61
sub63341-02591
main63310-02N60-C1i201902-202205
MOON ROOF-WITH(PANORAMA ROOF)&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP),BLACK,TRIM2#
sub63310-02N61
sub63341-02591
main63310-02N60-C1i201902-202205
BLACK,TRIM2#
sub63310-02N61
sub63341-02591
main63310-02N61-B0i202205
MOON ROOF-WITH(PANORAMA ROOF)&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP),COOL GRAY,TRIM1#
main63310-02N61-B0i202205
COOL GRAY,TRIM1#
main63310-02N61-C1i202205
MOON ROOF-WITH(PANORAMA ROOF)&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP),BLACK,TRIM2#
main63310-02N61-C1i202205
BLACK,TRIM2#
main63310-02Q60-B0i201902-202205
MOON ROOF-WITH(PANORAMA ROOF)&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP),COOL GRAY,TRIM1#
sub63310-02Q61
sub63341-02591
main63310-02Q60-B0i201902-202205
COOL GRAY,TRIM1#
sub63310-02Q61
sub63341-02591
main63310-02Q60-B0i201902-202205
SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP),COOL GRAY,TRIM1#
sub63310-02Q61
sub63341-02591
main63310-02Q60-C1i201902-202205
SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP),BLACK,TRIM2#
sub63310-02Q61
sub63341-02591
main63310-02Q60-C1i201902-202205
MOON ROOF-WITH(PANORAMA ROOF)&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP),BLACK,TRIM2#
sub63310-02Q61
sub63341-02591
main63310-02Q60-C1i201902-202205
BLACK,TRIM2#
sub63310-02Q61
sub63341-02591
main63310-02Q61-B0i202205
COOL GRAY,TRIM1#
main63310-02Q61-B0i202205
MOON ROOF-WITH(PANORAMA ROOF)&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP),COOL GRAY,TRIM1#
main63310-02Q61-B0i202205
SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP),COOL GRAY,TRIM1#
main63310-02Q61-C1i202205
BLACK,TRIM2#
main63310-02Q61-C1i202205
MOON ROOF-WITH(PANORAMA ROOF)&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP),BLACK,TRIM2#
main63310-02Q61-C1i202205
SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP),BLACK,TRIM2#
main63310-02W00-B0i202301
COOL GRAY,TRIM22,25
main63310-02W00-C0i202301
BLACK,TRIM20,21,24
main63310-02W10-B0i202301
COOL GRAY,TRIM22,25
main63310-02W10-C0i202301
BLACK,TRIM21,24
main63310-02W10-C0i202301
BLACK,TRIM2#
main63310-02W10-C0i202301
BLACK,TRIM20,21,24
main63310-02W20-B0i202301
COOL GRAY,TRIM22,25
main63310-02W20-C0i202301
BLACK,TRIM21,24
main63310-02W20-C0i202301
BLACK,TRIM2#
main63310-02W20-C0i202301
BLACK,TRIM20,21,24
main63310-02Z90-B0i202301
COOL GRAY,TRIM22
main63310-02Z90-C0i202301
BLACK,TRIM20,21
main63310-0Z010-B0i202301
COOL GRAY,TRIM22
main63310-0Z010-C0i202301
BLACK,TRIM2#
main63310-0Z010-C0i202301
BLACK,TRIM20,21
main63310-0Z010-C0i202301
BLACK,TRIM21
main63310-0Z020-B0i202301
COOL GRAY,TRIM22
main63310-0Z020-C0i202301
BLACK,TRIM2#
main63310-0Z020-C0i202301
BLACK,TRIM20,21
main63310-0Z020-C0i202301
BLACK,TRIM21
63310DCLIP, ROOF HEADLINING
main90467-05168-B2i201901
COOL GRAY,TRIM1#
main90467-05168-B2i202301
COOL GRAY,TRIM22,25
main90467-05168-B2i202301
COOL GRAY,TRIM22
main90467-05168-C0i202301
BLACK,TRIM21
main90467-05168-C0i201901
BLACK,TRIM2#
main90467-05168-C0i202301
BLACK,TRIM20,21
main90467-05168-C0i202301
BLACK,TRIM20,21,24
main90467-05168-C0i202301
BLACK,TRIM21,24
63341PAD, ROOF SILENCER, NO.1
main63341-02570i201901-202205
main63341-02591i202205
SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP)
main63341-02591i202205
MOON ROOF-WITH(PANORAMA ROOF)&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP)
main63341-02591i202301
63342PAD, ROOF SILENCER, NO.2
main63342-02740i202311
main63342-02760i201902
SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP)
main63342-02760i201901-202310
main63342-02760i201902
MOON ROOF-WITH(PANORAMA ROOF)&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP)
main63342-02770i201901-202205
63351BPAD, ROOF HEADLINING
main63351-02220i201901
63352DPAD, ROOF HEADLINING, NO.2
main63352-02130i201901-201910
63353CPAD, ROOF HEADLINING, CENTER
main63353-02090i201901-201910
63353DPAD, ROOF HEADLINING, CENTER
main63353-02100i201901-201910
8121

9 parts on this diagram · 5 diagrams in section
