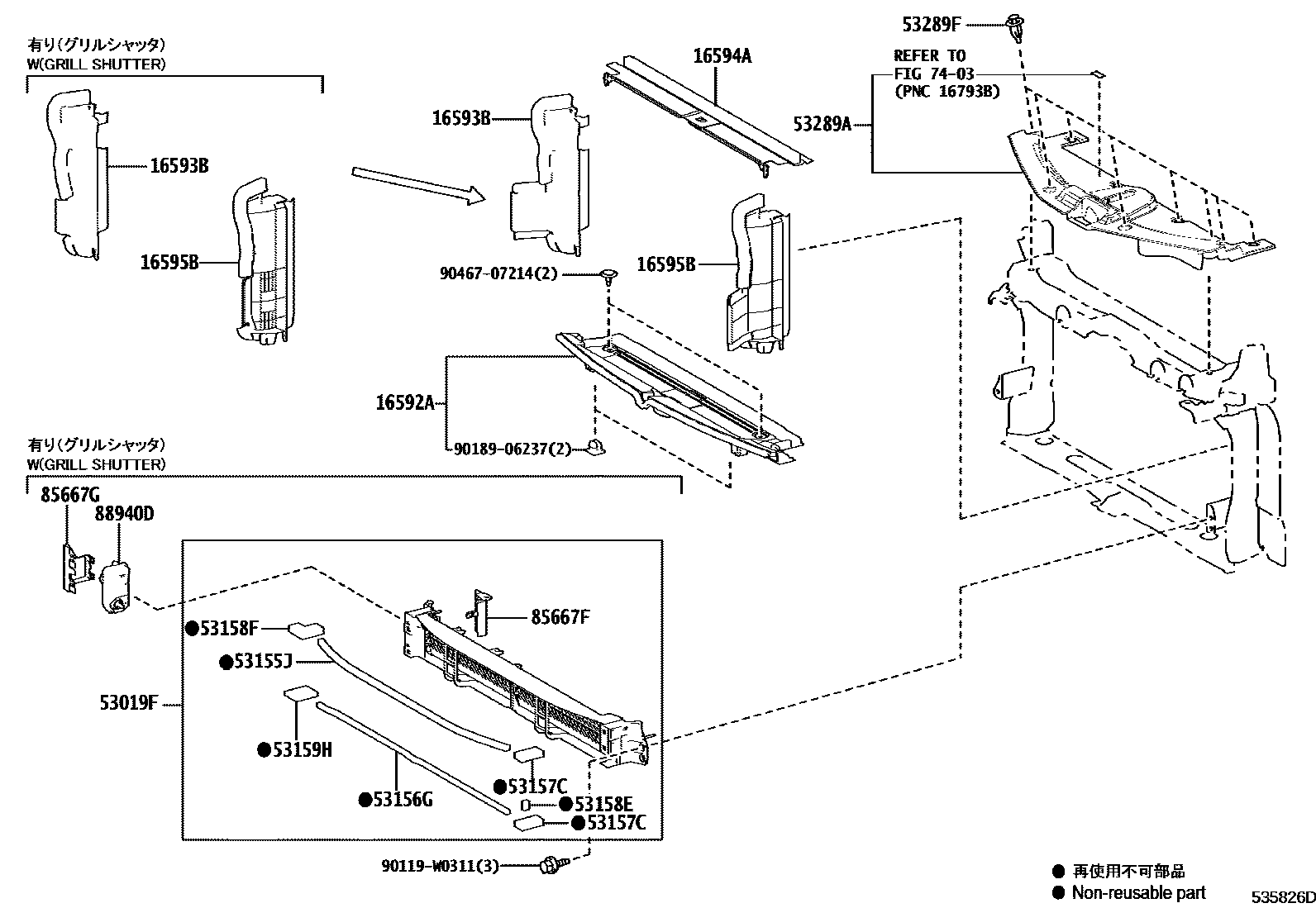

FRONT FENDER APRON & DASH PANEL

0001 1AIR GUIDE 0002 1AIR GUIDE 0003 1AIR GUIDE 0004 1RADIATOR SUPPORT & FENDER APR0005 1DASH PANEL 0006 1DASH PANEL

16592AGUIDE, RADIATOR AIR, NO.3

main16592-0T110iM20AFXS,2ZRFXE..MZEH19,ZWE219201901

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-0T150i8NRFTS,2ZRFXE..NRE210,ZWE211201901

main16593-F2050iM20AFXS..MZEH12201902

16594AGUIDE, RADIATOR AIR, NO.2

main16594-0T090i2ZRFXE..ZWE211201901

main16594-0Y070i8NRFTS..NRE210201901

main16594-F2020iM20AFXS..MZEH12201902

main16594-F3040iM20AFXS,2ZRFXE..MZEH19,ZWE219202301

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-0T160i2ZRFXE..ZWE211201901

main16595-0Y130i8NRFTS..NRE210201901

main16595-F2050iM20AFXS..MZEH12201902

53019FSHUTTER SUB-ASSY, RADIATOR

53155JSEAL, RADIATOR GRILLE, NO.1

53156GSEAL, RADIATOR GRILLE, NO.2

53157CSEAL, RADIATOR GRILLE, NO.3

53158ESEAL, RADIATOR GRILLE, NO.4

53158FSEAL, RADIATOR GRILLE, NO.4

53159HSEAL, RADIATOR GRILLE, NO.5

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-02060iMZEH12,NRE210201901

main53289-02070iZWE211201901-202107

sub53289-02071

main53289-02071iZWE211202108

main53289-02270iZWE219202301

main53289-02280iMZEH19202301

53289FCLIP(FOR RADIATOR SUPPORT OPENING COVER)

main90467-07217iZWE211201901

7403

85667FCOVER, MOTOR

85667GCOVER, MOTOR

88940DACTUATOR ASSY, SWING GRILLE

90119W0311

main90119-W0311

9018906237

main90189-06237

9046707214

main90467-07214

20 parts on this diagram · 6 diagrams in section
