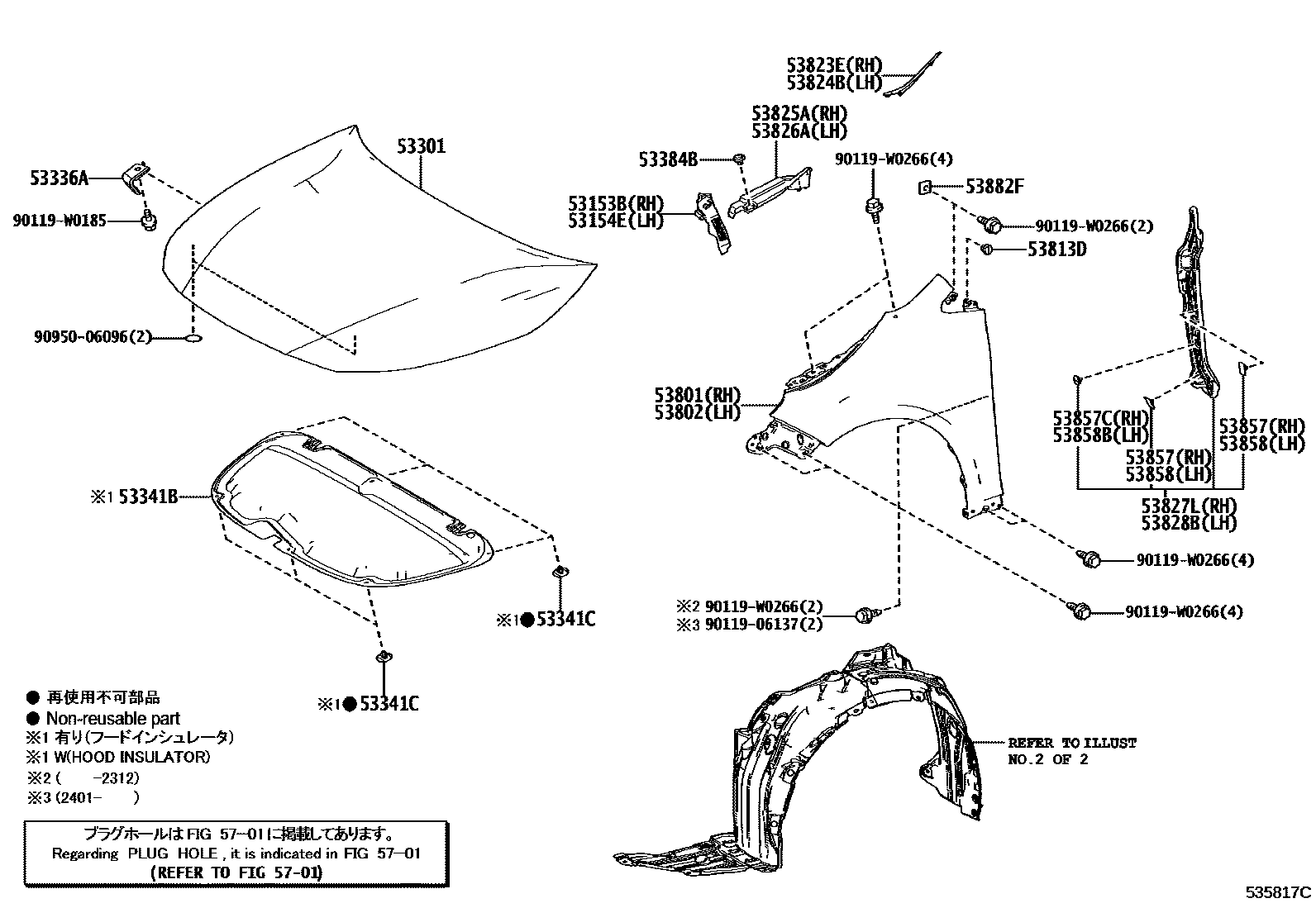

HOOD & FRONT FENDER

0001 1 0002 1

53153BGUIDE, FRONT SIDE AIR

main53153-02100iMZEH12,NRE210,ZWE211201901

53154EGUIDE, FRONT SIDE AIR, NO.2

main53154-02100iMZEH19,ZWE219202301

53301HOOD SUB-ASSY

main53301-02380iMZEH12,NRE210,ZWE211201901

53336ABRACKET, HOOD STAY

main53336-02010iMZEH19,ZWE219202301

53341BINSULATOR, HOOD

main53341-02390iMZEH12;ZWE211..G201901

53341CCLIP(FOR HOOD INSULATOR)

main90467-W0003×6iMZEH12;ZWE211..G201901

53384BCUSHION, HOOD, CENTER

main53384-78010×2iMZEH12,NRE210,ZWE211201901

53801FENDER SUB-ASSY, FRONT RH

main53801-02210iMZEH12,NRE210,ZWE211201901

53802FENDER SUB-ASSY, FRONT LH

main53802-02270iMZEH12,NRE210,ZWE211201901

53813DEXTENSION, FRONT FENDER

main53813-47040×2iMZEH12,NRE210,ZWE211201901

53823EPROTECTOR, FRONT SIDE PANEL, NO.2 RH

main53823-02190iMZEH12,NRE210,ZWE211201901

53824BPROTECTOR, FRONT SIDE PANEL, NO.2 LH

main53824-02190iMZEH12,NRE210,ZWE211201901

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-02150iMZEH12,NRE210,ZWE211201901

53826APROTECTOR, FRONT FENDER, UPPER LH

main53826-02150iMZEH12,NRE210,ZWE211201901

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-02250iMZEH12,NRE210,ZWE211201901

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-02250iMZEH12,NRE210,ZWE211201901

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-02020×2iMZEH12,NRE210,ZWE211201901

53857CRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-02040iMZEH12,NRE210,ZWE211201901

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-02020×2iMZEH12,NRE210,ZWE211201901

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-02040iMZEH12,NRE210,ZWE211201901

53882FSEAL, FRONT FENDER

main53882-33060×2iMZEH12,NRE210,ZWE211201901

5701

9011906137

main90119-06137

90119W0185

main90119-W0185

90119W0266

main90119-W0266

9095006096

main90950-06096

26 parts on this diagram · 2 diagrams in section
