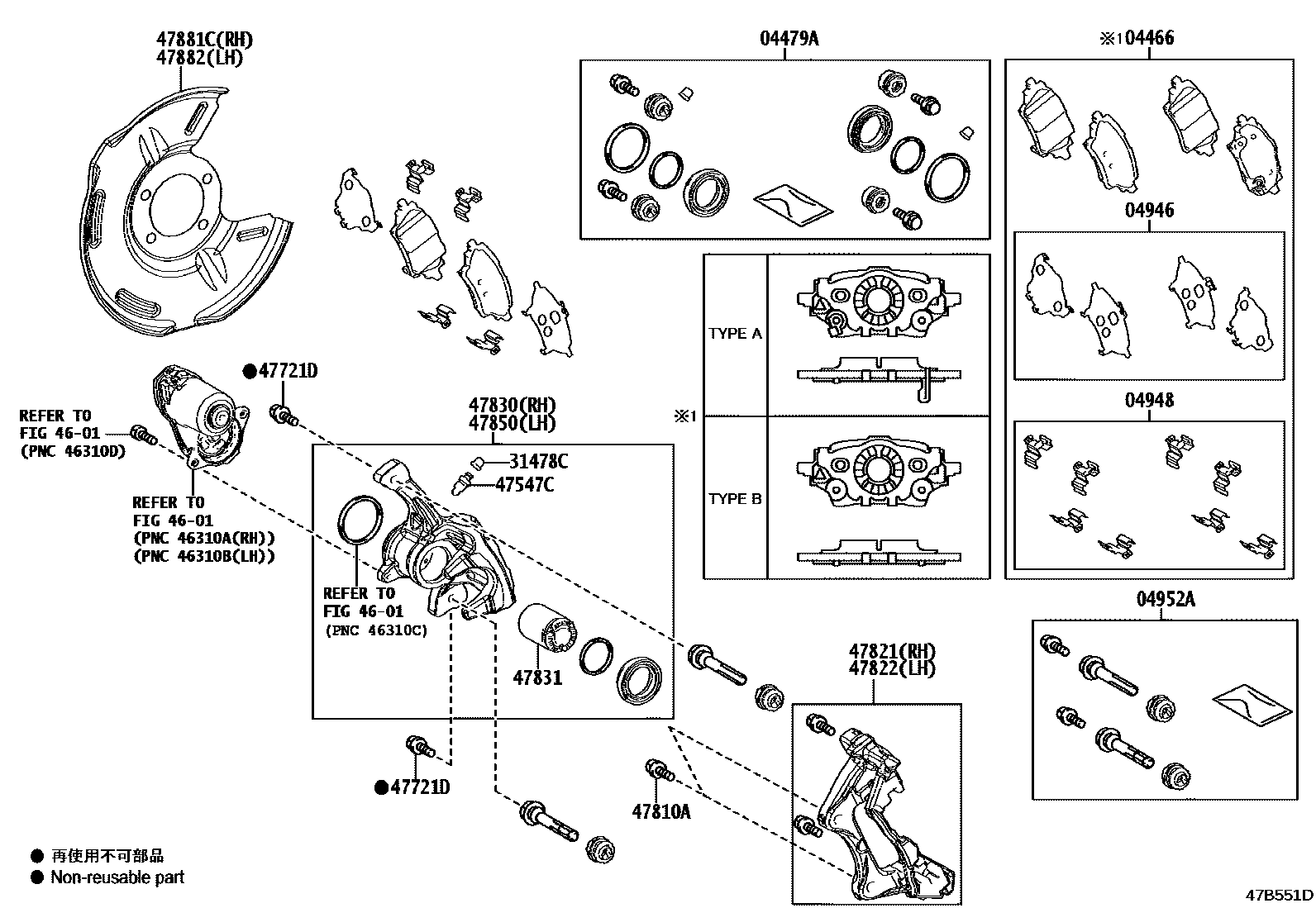

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-02400iMZEH12,NRE210,ZWE211201901-202104

MARK NBK D6360,TYPE A:REFER ILLUST.

main04466-02401iMZEH12,NRE210,ZWE211202104

MARK NBK D6360,TYPE B:REFER ILLUST.

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-F4010iMZEH12,NRE210,ZWE211201901

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-02140iMZEH12,NRE210,ZWE211201901

04948FITTING KIT, DISC BRAKE, REAR

main04948-F4010iMZEH12,NRE210,ZWE211201901

04952APIN KIT, REAR DISC BRAKE CYLINDER SLIDE

main04952-F4020×2iMZEH12,NRE210,ZWE211201901

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main90069-39027×2iMZEH12,NRE210,ZWE211201901

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-F4030×2iMZEH12,NRE210,ZWE211201901

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90069-31417×4iMZEH12,NRE210,ZWE211201901

*8-1.00PX22-10

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12174×4iMZEH12,NRE210,ZWE211201901

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-09100iMZEH12,NRE210,ZWE211201901

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-09100iMZEH12,NRE210,ZWE211201901

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-02360iMZEH12,NRE210,ZWE211201901

47831PISTON, REAR DISC BRAKE

main47831-F4030×2iMZEH12,NRE210,ZWE211201901

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-02350iMZEH12,NRE210,ZWE211201901

47881CCOVER, DISC BRAKE DUST, REAR RH

main47881-02190iMZEH12,NRE210,ZWE211201901

47882COVER, DISC BRAKE DUST, REAR LH

main47882-02190iMZEH12,NRE210,ZWE211201901

17 parts on this diagram · 1 diagram in section
