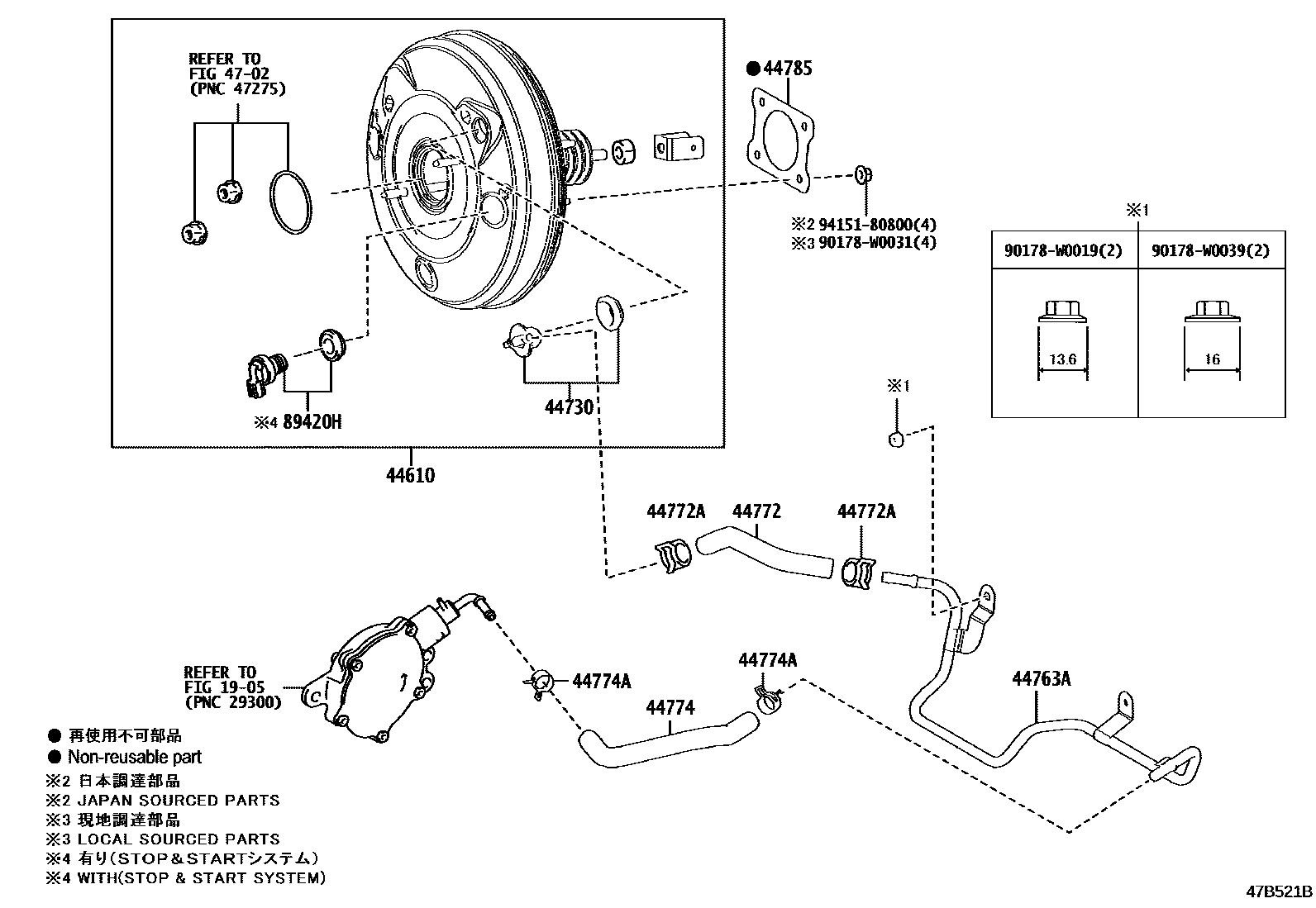

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1905

44610BOOSTER ASSY, BRAKE

main44610-09F70iNRE210..LHD..WG..CVT201902

main44610-09F90iNRE210..LHD..HB..CVT201901

main44610-09G00iNRE210..LHD..6F201901

main44610-09G10iNRE210..RHD..CVT201901

LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)

main44610-09G20iNRE210..RHD..6F201901

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-F9010iNRE210201901

44763ATUBE, HOSE TO HOSE, NO.1

main44763-12570iNRE210..RHD201901

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-10220iNRE210..RHD201901

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90467-16014iNRE210..RHD201901

44774HOSE, UNION TO CONNECTOR TUBE

main44774-12800iNRE210..RHD201901

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90467-16014iNRE210..RHD201901

44785GASKET, BRAKE BOOSTER

main44785-05020iNRE210201901

(L)

main44785-12040iNRE210201901

(J)

4702

89420HSENSOR ASSY, VACUUM

main89421-09010iNRE210..RHD..CVT;NRE210..LHD..WG..CVT201901

LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)

90178W0019

main90178-W0019

90178W0031

main90178-W0031

90178W0039

main90178-W0039

9415180800

main94151-80800

15 parts on this diagram · 2 diagrams in section
