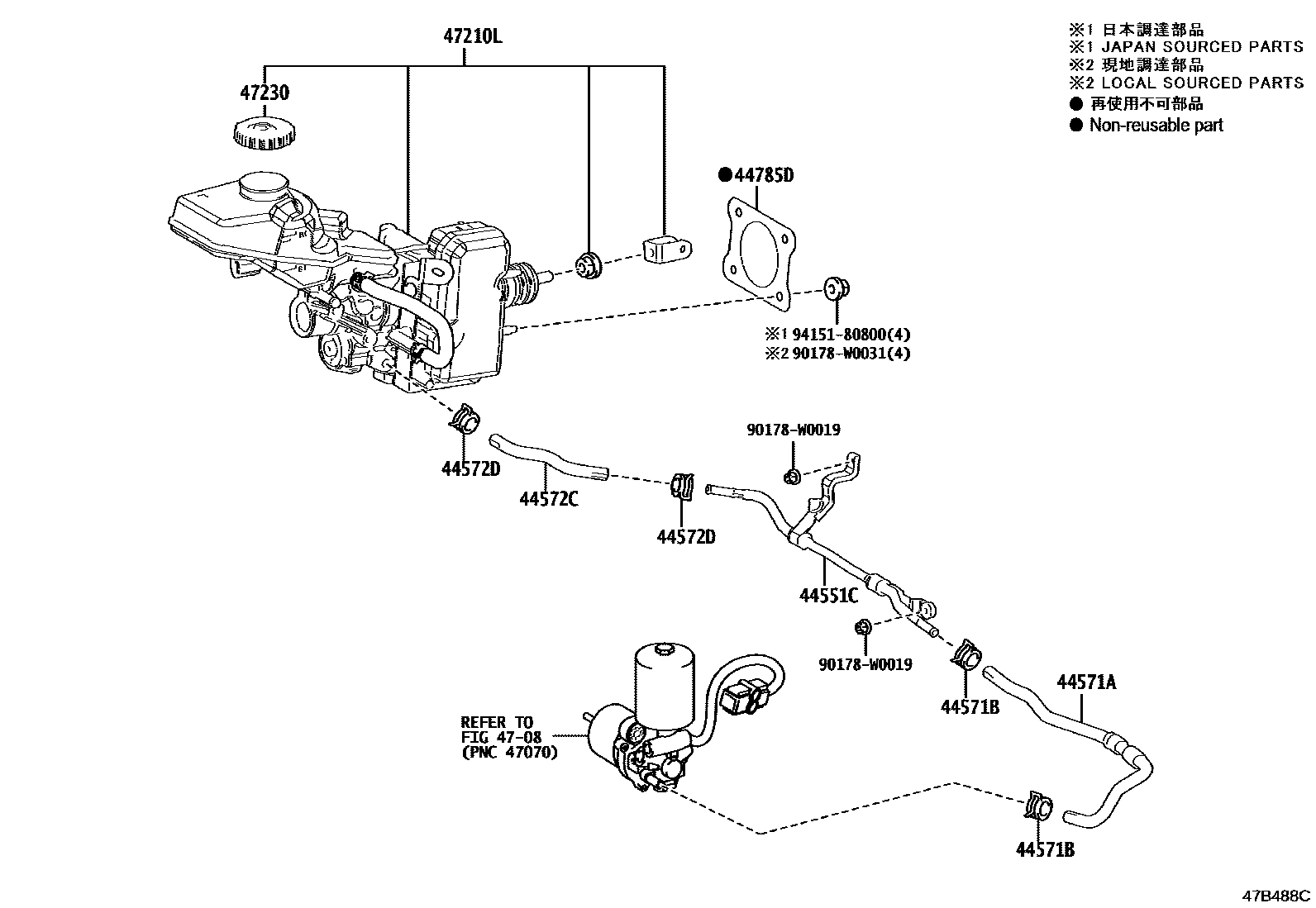

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

44551CTUBE, BRAKE ACTUATOR, NO.1

main44551-47050iMZEH12,ZWE211..LHD201901

main44551-47060iMZEH12,ZWE211..RHD201901

44571AHOSE, BRAKE ACTUATOR, NO.1

main44571-47070iMZEH12,ZWE211..LHD201901

main44571-47080iMZEH12,ZWE211..RHD201901

44571BCLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.1)

main96137-41501iMZEH12,ZWE211201901

44572CHOSE, BRAKE ACTUATOR, NO.2

main44572-47050iMZEH12,ZWE211..LHD201901

main44572-47060iMZEH12,ZWE211..RHD201901

44572DCLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.2)

main96137-41501iMZEH12,ZWE211201901

44785DGASKET, BRAKE MASTER CYLINDER

main44785-02090iMZEH19,ZWE219202301

main44785-05020iMZEH12,ZWE211..D,G,N201901

(L)

main44785-12040iMZEH12,ZWE211..D,G,N201901

(J)

4708

47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER

main47050-12400iZWE211..LHD..HB..G201901-202203

TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT

sub47050-12401

main47050-12400iMZEH12,ZWE211..LHD..HB..G201901-202203

TIRE & DISC WHEEL-195/65R15 STEEL SUMMER TIRE

sub47050-12401

main47050-12400iMZEH12,ZWE211..LHD..HB..G201901-202203

TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPORT

sub47050-12401

main47050-12400iMZEH12,ZWE211..LHD..HB..G201901-202203

TIRE & DISC WHEEL-195/65R15 STEEL ROUGH ROAD SPEC

sub47050-12401

main47050-12401iMZEH12,ZWE211..LHD..HB..(D,N)202204

TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPORT

main47050-12401iZWE211..LHD..HB..G202204

TIRE & DISC WHEEL-195/65R15 STEEL SUMMER TIRE

main47050-12401iMZEH12,ZWE211..LHD..HB..G202204

TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT

main47050-12401iMZEH12,ZWE211..LHD..HB..G202204

TIRE & DISC WHEEL-195/65R15 STEEL ROUGH ROAD SPEC

main47050-12410iMZEH12,ZWE211..LHD..HB..G201901-202203

TIRE & DISC WHEEL-225/40R18 ALUMINUM SUMMER TIRE

sub47050-12411

main47050-12410iMZEH12,ZWE211..LHD..HB..G201901-202203

TIRE & DISC WHEEL-225/45R17 ALUMINUM ROUGH ROAD SPEC

sub47050-12411

main47050-12411iMZEH12,ZWE211..LHD..HB..N202204

TIRE&DISC WHEEL-225/45R17 ALUMINUM

main47050-12411iMZEH12,ZWE211..LHD..HB..G202204

TIRE & DISC WHEEL-225/45R17 ALUMINUM ROUGH ROAD SPEC

main47050-12411iMZEH12,ZWE211..LHD..HB..G202204

TIRE & DISC WHEEL-225/40R18 ALUMINUM SUMMER TIRE

main47050-12411iMZEH12,ZWE211..LHD..HB..G202204

TIRE&DISC WHEEL-225/45R17 ALUMINUM GRS

main47050-12411iMZEH12,ZWE211..LHD..HB..G202204

TIRE&DISC WHEEL-225/40R18 ALUMINUM GRS

main47050-12480iMZEH12,ZWE211..RHD..HB..(D,N)201901-202203

TIRE & DISC WHEEL-195/65R15 STEEL SUMMER TIRE

main47050-12480iZWE211..RHD..HB..G201901-202203

TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT

main47050-12480iZWE211..RHD..HB..G201901-202203

TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPORT

main47050-12481iMZEH12,ZWE211..RHD..HB..G202204

TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT

main47050-12481iZWE211..RHD..HB..G202204

TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPORT

main47050-12481iZWE211..RHD..HB..G202204

TIRE & DISC WHEEL-195/65R15 STEEL SUMMER TIRE

main47050-12490iMZEH12,ZWE211..RHD..HB..N201901-202203

TIRE & DISC WHEEL-225/45R17 ALUMINUM ROUGH ROAD SPEC

sub47050-12491

main47050-12490iMZEH12,ZWE211..RHD..HB..N201901-202203

TIRE & DISC WHEEL-225/40R18 ALUMINUM SUMMER TIRE

sub47050-12491

main47050-12491iMZEH12,ZWE211..RHD..HB..N202204

TIRE&DISC WHEEL-225/45R17 ALUMINUM

main47050-12491iMZEH12,ZWE211..RHD..HB..N202204

TIRE&DISC WHEEL-225/40R18 ALUMINUM GRS

main47050-12491iMZEH12,ZWE211..RHD..HB..N202204

TIRE&DISC WHEEL-225/45R17 ALUMINUM GRS

main47050-12491iMZEH12,ZWE211..RHD..HB..N202204

TIRE & DISC WHEEL-225/45R17 ALUMINUM ROUGH ROAD SPEC

main47050-12491iMZEH12,ZWE211..RHD..HB..N202204

TIRE & DISC WHEEL-225/40R18 ALUMINUM SUMMER TIRE

main47050-12A00iMZEH12..LHD..WG..G201902-202203

TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT

sub47050-12A01

main47050-12A00iZWE211..LHD..WG;MZEH12..LHD..WG..N201902-202203

TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPORT

sub47050-12A01

main47050-12A01iZWE211..LHD..WG;MZEH12..LHD..WG..N202204

TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPORT

main47050-12A01iZWE211..LHD..WG;MZEH12..LHD..WG..N202204

TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT

main47050-12A10iMZEH12..LHD..WG..N;ZWE211..LHD..WG..(G,N)201902-202203

TIRE & DISC WHEEL-225/45R17 ALUMINUM ROUGH ROAD SPEC

sub47050-12A11

main47050-12A10iMZEH12..LHD..WG..G201902-202203

TIRE & DISC WHEEL-225/40R18 ALUMINUM SUMMER TIRE

sub47050-12A11

main47050-12A11iMZEH12..LHD..WG..N202204

TIRE&DISC WHEEL-225/45R17 ALUMINUM

main47050-12A11iMZEH12..LHD..WG..N;ZWE211..LHD..WG..(G,N)202204

TIRE & DISC WHEEL-225/45R17 ALUMINUM ROUGH ROAD SPEC

main47050-12A11iMZEH12..LHD..WG..N;ZWE211..LHD..WG..(G,N)202204

TIRE & DISC WHEEL-225/40R18 ALUMINUM SUMMER TIRE

main47050-12A11iMZEH12..LHD..WG..N;ZWE211..LHD..WG..(G,N)202204

TIRE&DISC WHEEL-225/45R17 ALUMINUM GRS

main47050-12A11iMZEH12..LHD..WG..N;ZWE211..LHD..WG..(G,N)202204

TIRE&DISC WHEEL-225/40R18 ALUMINUM GRS

main47050-12A80iMZEH12..RHD..WG..G201902-202203

TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT

main47050-12A80iMZEH12..RHD..WG..G201902-202203

TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPORT

main47050-12A81iMZEH12..RHD..WG..G202204

TIRE & DISC WHEEL-205/55R16 SUMMER ALUMINUM SPORT

main47050-12A81iMZEH12..RHD..WG..G202204

TIRE & DISC WHEEL-205/55R16 ALUMINUM ROUGH ROAD SPORT

main47050-12A90iMZEH12..RHD..WG..N;ZWE211..RHD..WG..(G,N)201902-202203

TIRE & DISC WHEEL-225/40R18 ALUMINUM SUMMER TIRE

sub47050-12A91

main47050-12A90iMZEH12..RHD..WG..N;ZWE211..RHD..WG..(G,N)201902-202203

TIRE & DISC WHEEL-225/45R17 ALUMINUM ROUGH ROAD SPEC

sub47050-12A91

main47050-12A91iMZEH12..RHD..WG..N202204

TIRE & DISC WHEEL-225/45R17 ALUMINUM ROUGH ROAD SPEC

main47050-12A91iMZEH12..RHD..WG..G202204

TIRE & DISC WHEEL-225/40R18 ALUMINUM SUMMER TIRE

main47050-12A91iMZEH12..RHD..WG..G202204

TIRE&DISC WHEEL-225/45R17 ALUMINUM GRS

main47050-12A91iMZEH12..RHD..WG..G202204

TIRE&DISC WHEEL-225/40R18 ALUMINUM GRS

main47050-12A91iMZEH12..RHD..WG..G202204

TIRE&DISC WHEEL-225/45R17 ALUMINUM

main47210-02070iZWE219..LHD202301

main47210-02080iZWE219..RHD202301

main47210-02100iMZEH19..LHD202301

main47210-02110iMZEH19..RHD202301

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-47090iMZEH12,ZWE211201901

main47230-F4010iMZEH19,ZWE219201901

90178W0019

main90178-W0019

90178W0031

main90178-W0031

9415180800

main94151-80800

12 parts on this diagram · 6 diagrams in section
