PARKING BRAKE & CABLE

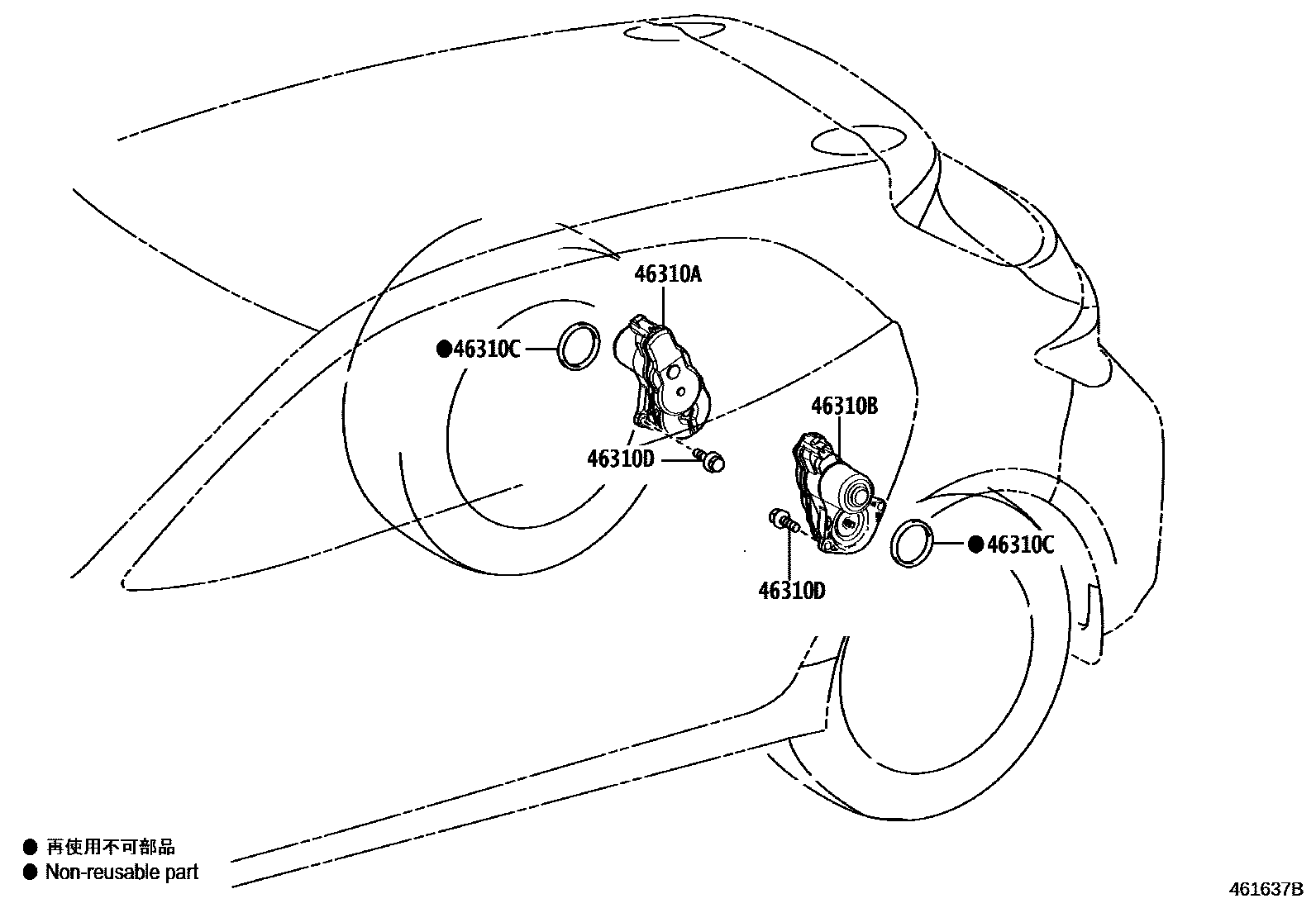

Parts diagram

46310AACTUATOR ASSY, PARKING BRAKE, RH

main46310-F4011i201901

46310BACTUATOR ASSY, PARKING BRAKE, LH

main46310-F4011i201901

46310CSEAL(FOR PARKING BRAKE ACTUATOR)

main90069-38055i201901

46310DBOLT(FOR PARKING BRAKE ACTUATOR)

main90069-31414i201901

4 parts on this diagram · 1 diagram in section
