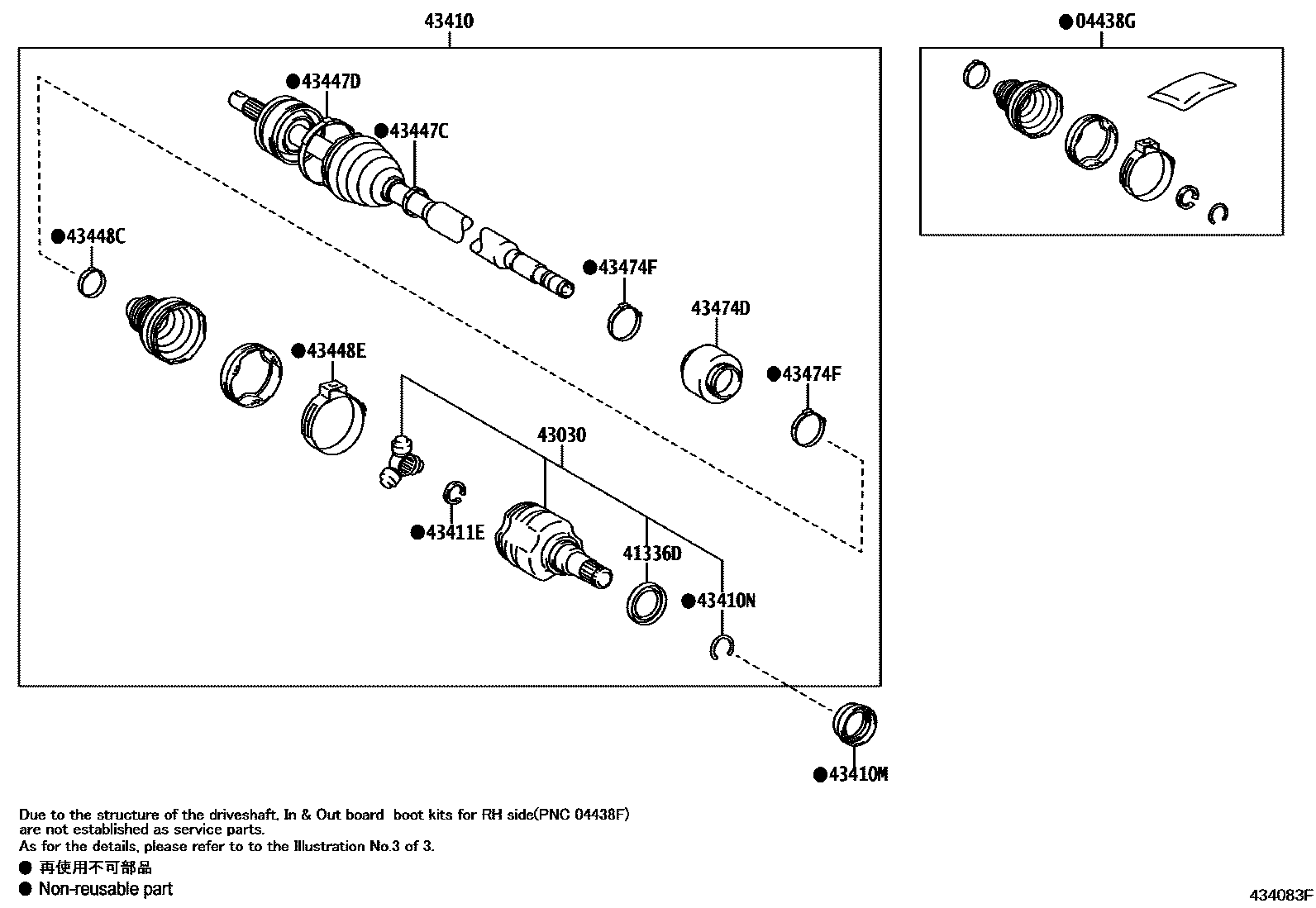

FRONT DRIVE SHAFT

0001 1RH 0002 1RH 0003 1RH 0004 1RH 0005 1LH 0006 1LH 0007 1LH 0008 1LH 0009 1 0010 1

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-02690iMZEH12201902

main04437-02740iNRE210201901

main04438-02630iZWE211201901

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-05080iZWE211¥740201901

main41336-05140iNRE210¥380201901

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-02150iZWE211..P201901-202202

main43030-02151iZWE211202202

main43040-02450iNRE210201901-202201

main43040-02451iNRE210202202

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-02C20iZWE211201901

main43410-02C30iNRE210201901

main43410-02C40iMZEH12201902

main43410-02E80iZWE219202301

main43410-02G10iMZEH19202301

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-35065iNRE210..6F¥270201901

main90311-35076iNRE210..CVT¥400201901

main90311-40038iZWE211¥400201901

main90311-40049iMZEH12¥470201902

main90311-40051iMZEH19,ZWE219¥470202301

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main43425-05070iMZEH12201902

main90080-52017iZWE211¥140201901

main90080-52055iNRE210¥90201901

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-02230iMZEH12201902

main43425-05080iNRE210,ZWE211¥60201901

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-02820iMZEH19202301

main42345-02C50iNRE210,ZWE211201901

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-02C60iNRE210,ZWE211¥820201901

main42345-F4010iMZEH19202301

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-02820iMZEH12201902

main42345-02C50iZWE219201901

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-02G70iZWE219201901

main42345-F4010iMZEH12201902

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-02600iZWE219201901

main43474-F4010iMZEH12201902

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-02590iMZEH12201902

main42345-02F70iZWE219201901

13 parts on this diagram · 10 diagrams in section
