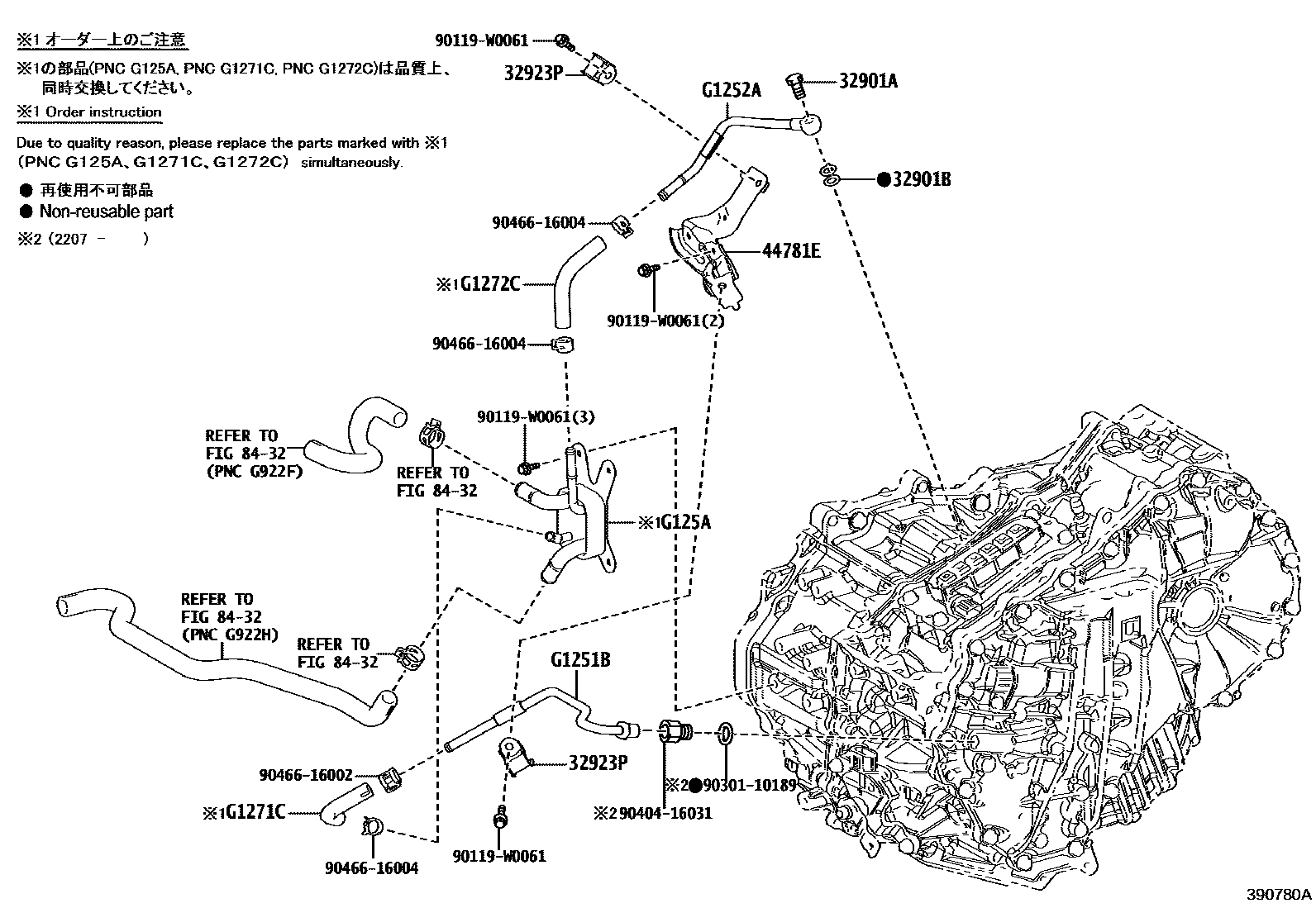

OIL COOLER & TUBE (HEV OR BEV OR FCEV)

0001 1P711 0002 1P610

32901ABOLT, UNION(FOR OIL COOLER)

main90401-12039iMZEH12,ZWE211¥390201901

32901BGASKET(FOR OIL COOLER UNION)

main90430-12037iMZEH12,ZWE211¥80201901

32923PCLAMP, OIL COOLER TUBE, NO.1

main32923-52040iMZEH12,ZWE211¥200201901

44781EBRACKET, HOSE

main44781-12070iMZEH12¥320201902

main44781-47010iZWE211¥820201901

8432

G1251BPIPE, MOTOR COOLING, NO.1

mainG125112010iMZEH12201902

mainG125147010iZWE211201901

G1252APIPE, MOTOR COOLING, NO.2

mainG125212010iMZEH12201902

mainG125247010iZWE211201901

G125ACOOLER, MOTOR COOLING

mainG125A12010iMZEH12201902

mainG125A47010iZWE211201901

G1271CHOSE, MOTOR COOLING, NO.1

mainG127112010iMZEH12201902

mainG127147010iZWE211201901

G1272CHOSE, MOTOR COOLING, NO.2

mainG127212010iMZEH12201902

mainG127247010iZWE211201901

90119W0061

main90119-W0061¥80

9030110189

main90301-10189¥170

9040416031

main90404-16031¥340

9046616002

main90466-16002¥220

9046616004

main90466-16004¥180

15 parts on this diagram · 2 diagrams in section
