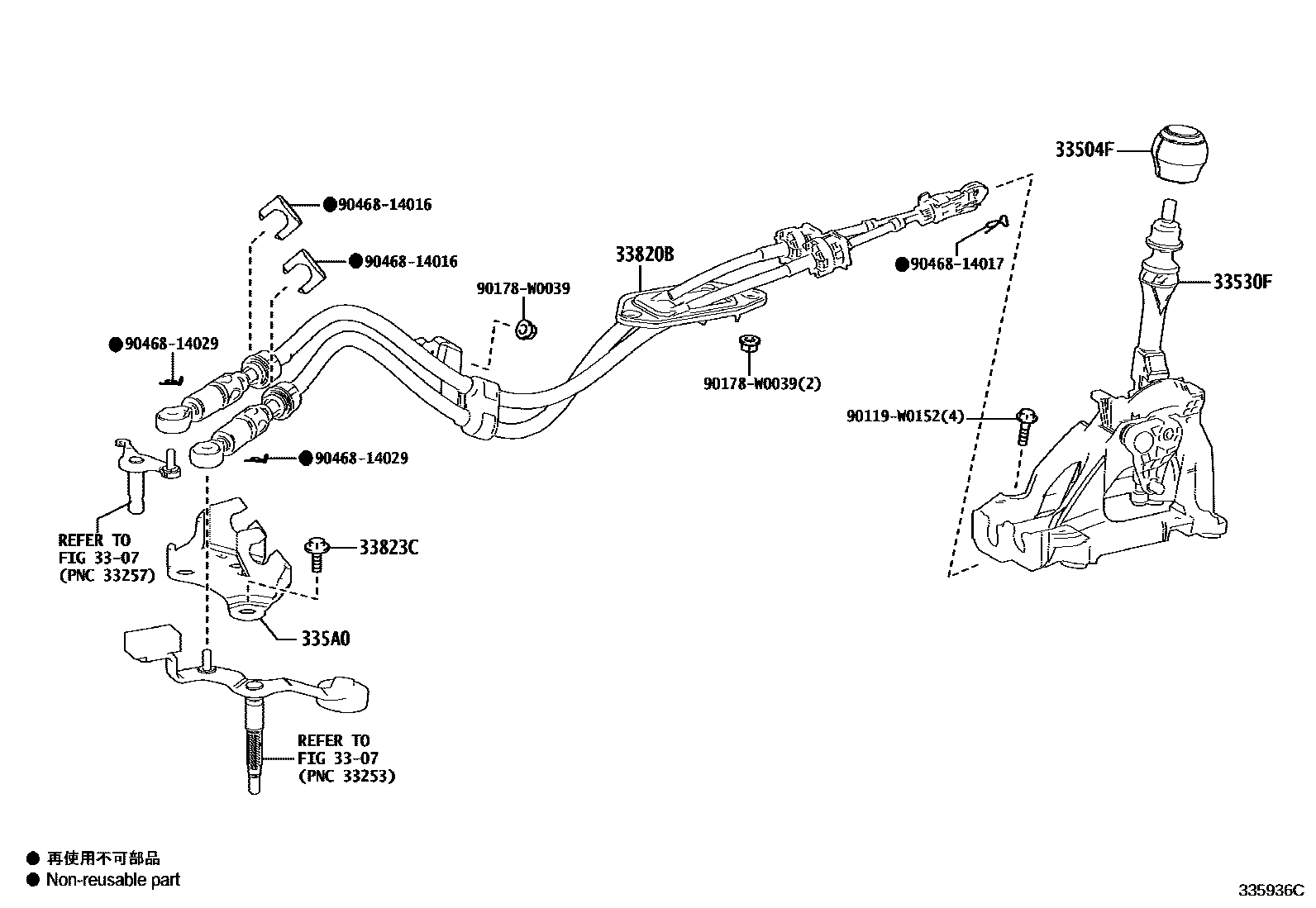

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

3307

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-02480-C0iMZEH19,ZWE219..G,N,P,S202301-202502

BLACK,TRIM2#

main33504-02480-C0iMZEH12,NRE210,ZWE211..CVT..(G,N,P)202202

BLACK,TRIM1#,2#

main33504-02760-C0iNRE210..6F..D201901

BLACK,TRIM1#,2#

main33504-02770-C0iNRE210..6F..(G,N)201901

BLACK,TRIM1#,2#

main33504-12800-C0iMZEH12,NRE210,ZWE211..CVT..(G,N,P)202012-202202

BLACK,TRIM1#,2#

main33504-12810-C0iMZEH12,NRE210,ZWE211..CVT..(G,N)201901-202011

BLACK,TRIM1#,2#

sub33504-12800¥4,430

main33504-33170-C0iNRE210,ZWE211..CVT..D201901-202202

BLACK,TRIM1#,2#

main33504-K0010-C0iZWE219..C,D202301

BLACK,TRIM2#

main33504-K0010-C0iNRE210,ZWE211..CVT..(C,D)202202

BLACK,TRIM1#,2#

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-02360iNRE210..6F201901

335A0BRACKET ASSY, CONTROL CABLE

main335A0-0D010iNRE210..6F201901

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-02A71iNRE210..6F201901

main33820-02A80iNRE210..CVT201901

main33820-02A90iZWE211201901-201912

PNC 33829=TYPE A

main33820-02B00iMZEH12201902

main33820-02D40iZWE211202010

PNC 33829=TYPE B

main33820-02D80iZWE211201912-202010

PNC 33829=TYPE B

main33820-02E30iZWE219202301

main33820-02E70iMZEH19202301

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-02460iZWE219202301

main33823-02490iMZEH19202301

main33823-12190iNRE210..CVT¥900201901

main33823-12350iMZEH12¥1,050201902

main33823-F4010iZWE211¥1,040201901

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-08C60iNRE210..6F¥100201901

(J)

main90119-W0016iMZEH19,ZWE219201901

sub90119-08026¥120

main90119-W0255iNRE210..6F201901

(L)

90119W0152

main90119-W0152¥80

90178W0039

main90178-W0039¥60

9046814016

main90468-14016¥160

9046814017

main90468-14017¥90

9046814029

main90468-14029¥90

12 parts on this diagram · 11 diagrams in section
