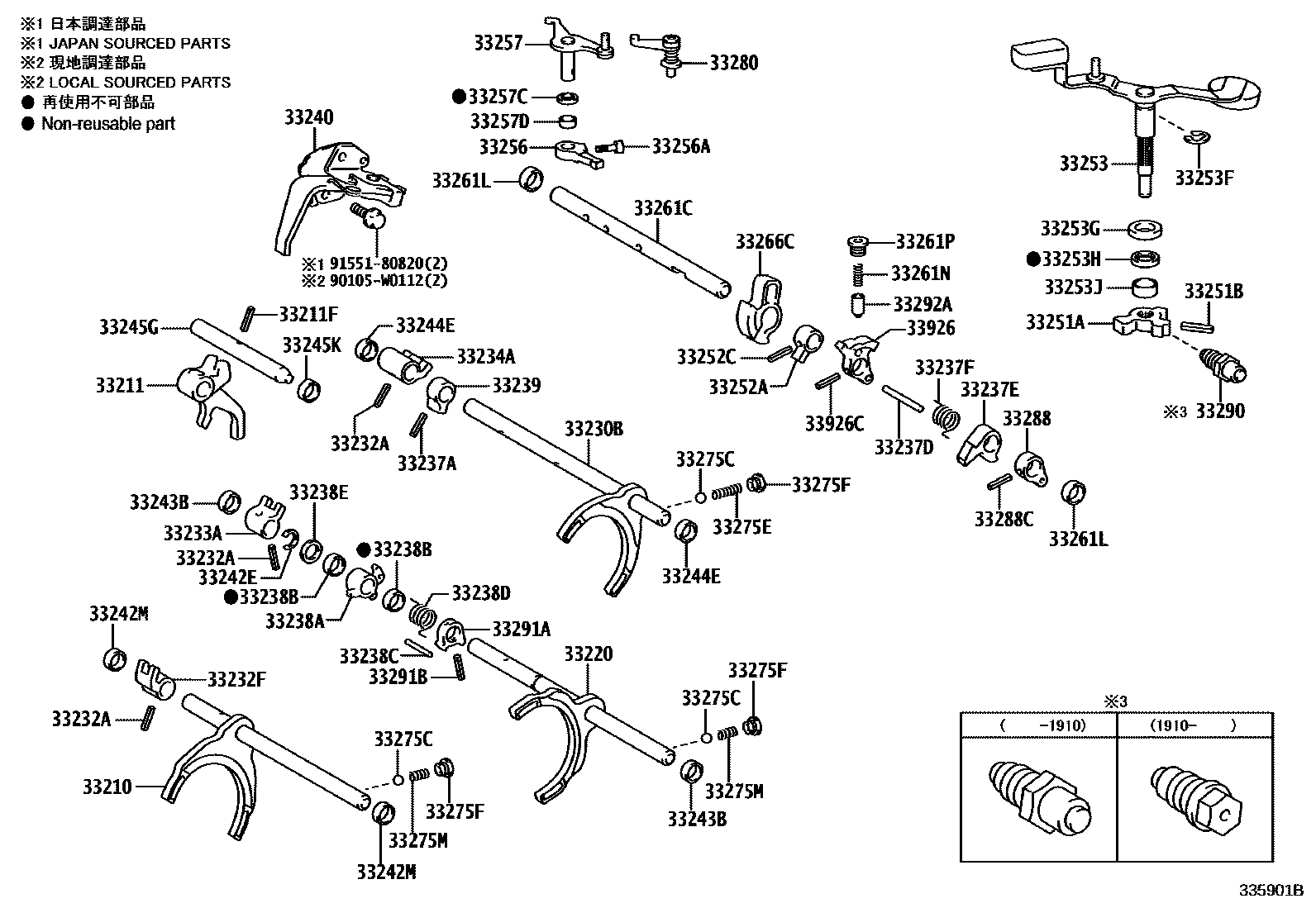

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33210FORK ASSY, GEAR SHIFT, NO.1
33211FORK, REVERSE SHIFT
33211FPIN, SLOTTED SPRING(FOR REVERSE SHIFT FORK)
33220FORK ASSY, GEAR SHIFT, NO.2
33230BFORK ASSY, GEAR SHIFT, NO.3
33232APIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
33232FHEAD, GEAR SHIFT, NO.1
33233AHEAD, GEAR SHIFT, NO.2
33234AHEAD, GEAR SHIFT, NO.3
33237APIN, SLOTTED SPRING (FOR RELEASE HEAD)
33237DPIN, STRAIGHT(FOR RELEASE HEAD)
33237EHEAD, REVERSE PRE-BALK, NO.1
33237FSPRING, TORSION(FOR REVERSE PRE-BALK HEAD NO.1)
33238AHEAD, REVERSE PRE-BALK, NO.2
33238BBUSH, BIMETAL FORMED(FOR REVERSE PRE-BALK HEAD NO.2)
33238CPIN, STRAIGHT(FOR REVERSE PRE-BALK HEAD NO.2)
33238DSPRING, TORSION(FOR REVERSE PRE-BALK HEAD NO.2)
33238ESPACER(FOR REVERSE PRE-BALK HEAD NO.2)
33239HEAD, REVERSE PRE-BALK, NO.3
33240BRACKET ASSY, REVERSE SHIFT ARM
33242ERING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33242MBUSH, BIMETAL FORMED(FOR GEAR SHIFT FORK SHAFT NO.1)
33243BBUSH, BIMETAL FORMED(FOR GEAR SHIFT FORK SHAFT NO.2)
33244EBUSH, BIMETAL FORMED(FOR GEAR SHIFT FORK SHAFT NO.3)
33245GSHAFT, GEAR SHIFT FORK, NO.4
33245KBUSH, BIMETAL FORMED(FOR GEAR SHIFT FORK SHAFT NO.4)
33251ALEVER, SHIFT, INNER NO.1
(L)
(J)
33251BPIN, SLOTTED SPRING (FOR SHIFT INNER LEVER)
L=28.0
33252ALEVER, SHIFT, INNER NO.2
33252CPIN, SLOTTED SPRING(FOR SHIFT LEVER INN NO.2)
33253LEVER, SHIFT OUTER, NO.1
33253FRING, E(FOR SHIFT OUTER LEVER)
33253GSPACER(FOR SHIFT OUTER LEVER)
33253HSEAL, OIL(FOR SHIFT OUTER LEVER)
33253JBUSH(FOR SHIFT OUTER LEVER)
33256LEVER, SELECT INNER
33256ABOLT, SET (FOR SELECT INNER LEVER)
33257LEVER, SELECT OUTER
33257CSEAL, OIL(FOR OUTER SELECT LEVER)
33257DBUSH, BIMETAL FORMED(FOR OUTER SELECT LEVER)
33261CSHAFT, SHIFT & SELECT LEVER
33261LBUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT)
33261NSPRING, COMPRESSION(FOR SHIFT & SELECT LEVER SHAFT)
33261PPLUG, STRAIGHT SCREW W/HEAD(FOR SHIFT & SELECT LEVER SHAFT)
33266CPLATE, SHIFT INTERLOCK
33275CBALL (FOR SHIFT DETENT)
33275ESPRING, COMPRESSION (FOR SHIFT DETENT BALL)
33275FPLUG (FOR SHIFT DETENT BALL)
33275MSPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)
33280PIN ASSY, REVERSE RESTRICT
33288BLOCK, SELECT STOPPER
33288CPIN, SLOTTED SPRING(FOR SELECT STOPPER BLOCK)
33290BALL ASSY, LOCK, NO.1
33291ASTOPPER, SHIFT FORK SHAFT
33291BPIN, SLOTTED SPRING (FOR SHIFT FORK SHAFT STOPPER)
33292APIN, LOCK BALL
33926LEVER, SHIFT INNER, FRONT
33926CPIN, SLOTTED SPRING(FOR SHIFT INNER LEVER)
90105W0112
main90105-W0112
9155180820
60 parts on this diagram · 1 diagram in section
