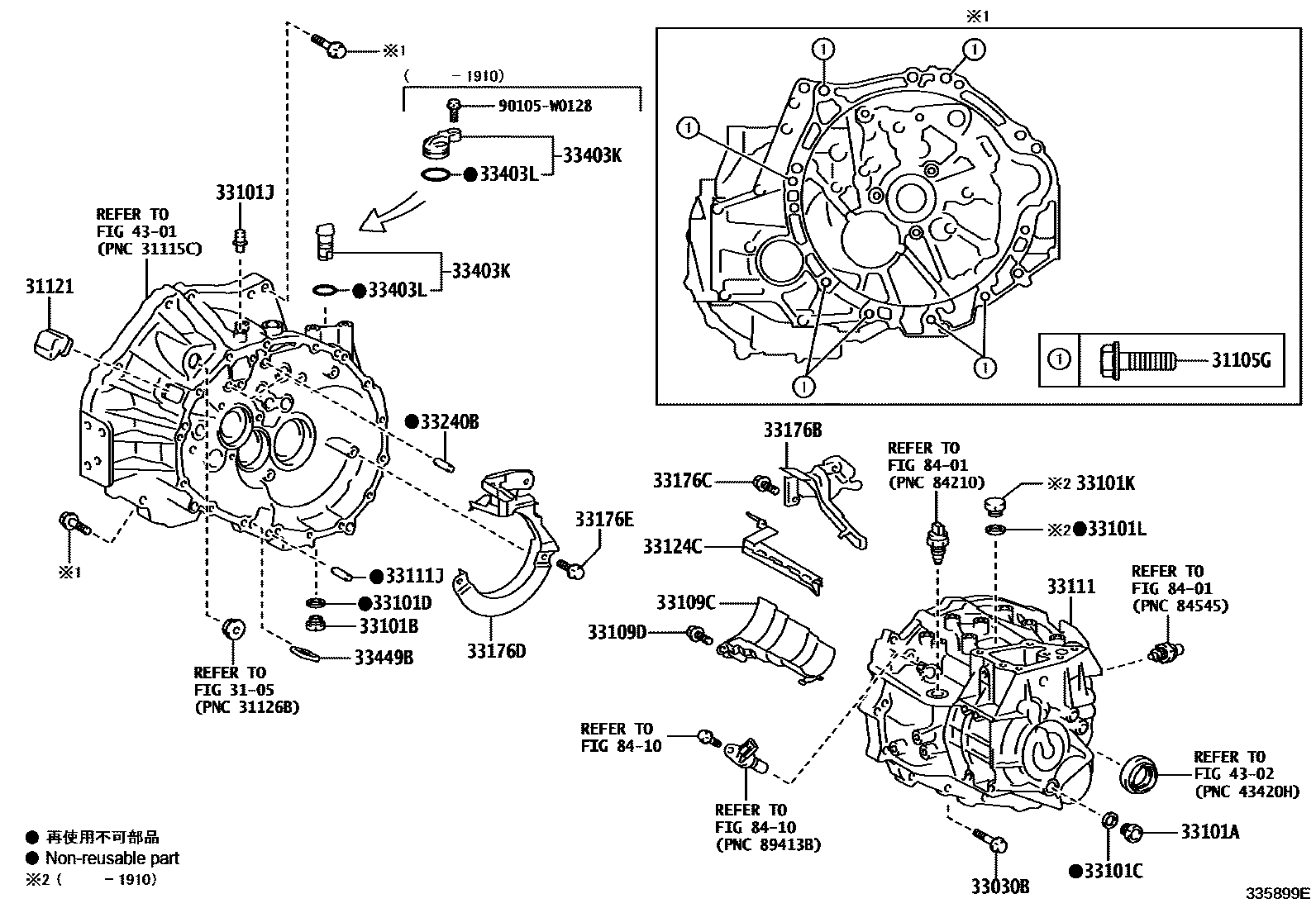

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

3105

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90119-W0155iNRE210..6F201901

*10-1.25PX45-30

31121COVER, CLUTCH HOUSING, NO.1

main31121-05010iNRE210..6F201901

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-W0209iNRE210..6F201901

*8-1.25PX40-22,(L)

main91551-10840iNRE210..6F¥80201901

*8-1.25PX40-22,(J)

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18033iNRE210..6F¥190201901

33101BPLUG(FOR MANUAL TRANSMISSION DRAIN)

main90341-18023iNRE210..6F¥190201901

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main12157-10010iNRE210..6F¥100201901

33101DGASKET(FOR MANUAL TRANSMISSION DRAIN PLUG)

main12157-10010iNRE210..6F¥100201901

33101JPLUG, BREATHER

main90930-03133iNRE210..6F¥370201901

33101KPLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-14032iNRE210..6F¥210201901-201910

33101LGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-14003iNRE210..6F¥160201901-201910

33109CSEPARATOR SUB-ASSY, MANUAL TRANSMISSION OIL

main33109-0D011iNRE210..6F201901

33109DBOLT(FOR MANUAL TRANSMISSION OIL SEPARATOR)

main90105-W0035iNRE210..6F¥130201901-202001

(L)

main91551-80816iNRE210..6F¥80201901-202001

(J)

33111CASE, MANUAL TRANSMISSION

main33111-F4010iNRE210..6F201901-201910

REFER33-07:PNC 33290

main33111-F4012iNRE210..6F¥36,300201910-202001

REFER33-07:PNC 33290

sub33111-F4013¥30,300

main33111-F4013iNRE210..6F¥30,300202001

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054iNRE210..6F¥120201901

L=23,OD=8

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-F4010iNRE210..6F201901-201903

sub33124-K0010

main33124-K0010iNRE210..6F201904

33176BSEPARATOR, TRANSMISSION OIL(MTM)

main33176-0D020iNRE210..6F201901

33176CBOLT(FOR TRANSMISSION OIL SEPARATOR)

main90105-W0035iNRE210..6F¥130201901

(L)

main91551-80816iNRE210..6F¥80201901

(J)

33176DSEPARATOR, TRANSMISSION OIL, NO.2(MTM)

main33176-0D030iNRE210..6F201901

33176EBOLT(FOR TRANSMISSION OIL SEPARATOR NO.2)

main90105-W0035iNRE210..6F¥130201901

(L)

main91551-80816iNRE210..6F¥80201901

(J)

33240BPIN, STRAIGHT(FOR REVERSE SHIFT ARM BRACKET)

main90250-08054iNRE210..6F¥120201901

33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE

main33403-35230iNRE210..6F¥1,180201901-201910

main35150-44010iNRE210..6F¥340201910

33403LRING, O

main90301-09173iNRE210..6F¥140201910

main96711-24030iNRE210..6F¥170201901-201910

33449BMAGNET, TRANSMISSION

main33449-20010iNRE210..6F¥450201901

4301

4302

8401

8410

90105W0128

main90105-W0128

29 parts on this diagram · 1 diagram in section
