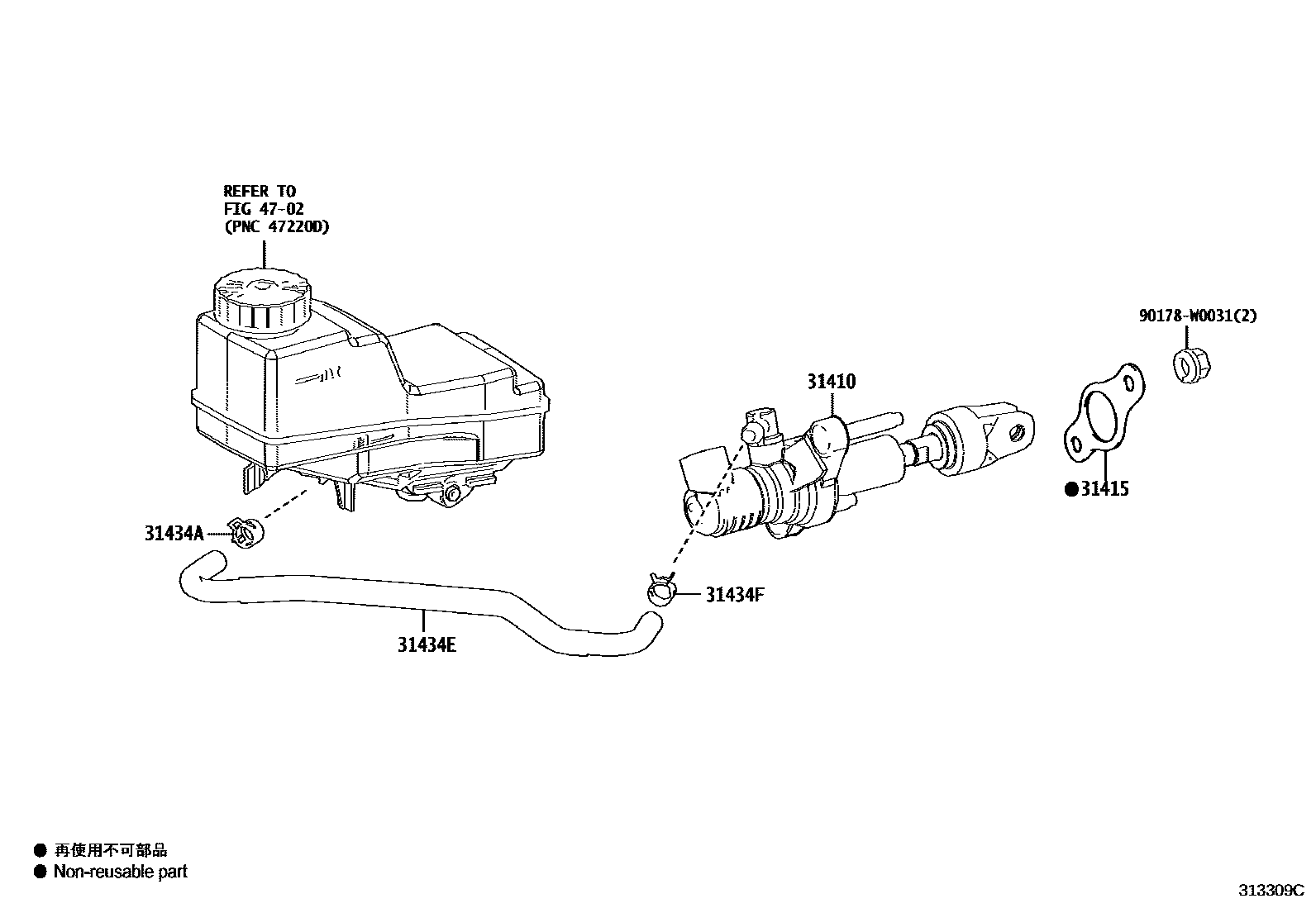

CLUTCH MASTER CYLINDER

0001 1 0002 1

31410CYLINDER ASSY, CLUTCH MASTER

main31420-F4011iNRE210..6F201901

31415GASKET, CLUTCH MASTER CYLINDER

main31415-60020iNRE210..6F201901

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96137-41501iNRE210..6F201901

31434EHOSE, CLUTCH RESERVOIR, NO.1

main31434-F4010iNRE210..LHD..6F201901

main31434-F4020iNRE210..RHD..6F201901

31434FCLIP(FOR CLUTCH RESERVOIR HOSE NO.1)

main96138-41501iNRE210..6F201901

4702

90178W0031

main90178-W0031

7 parts on this diagram · 2 diagrams in section
