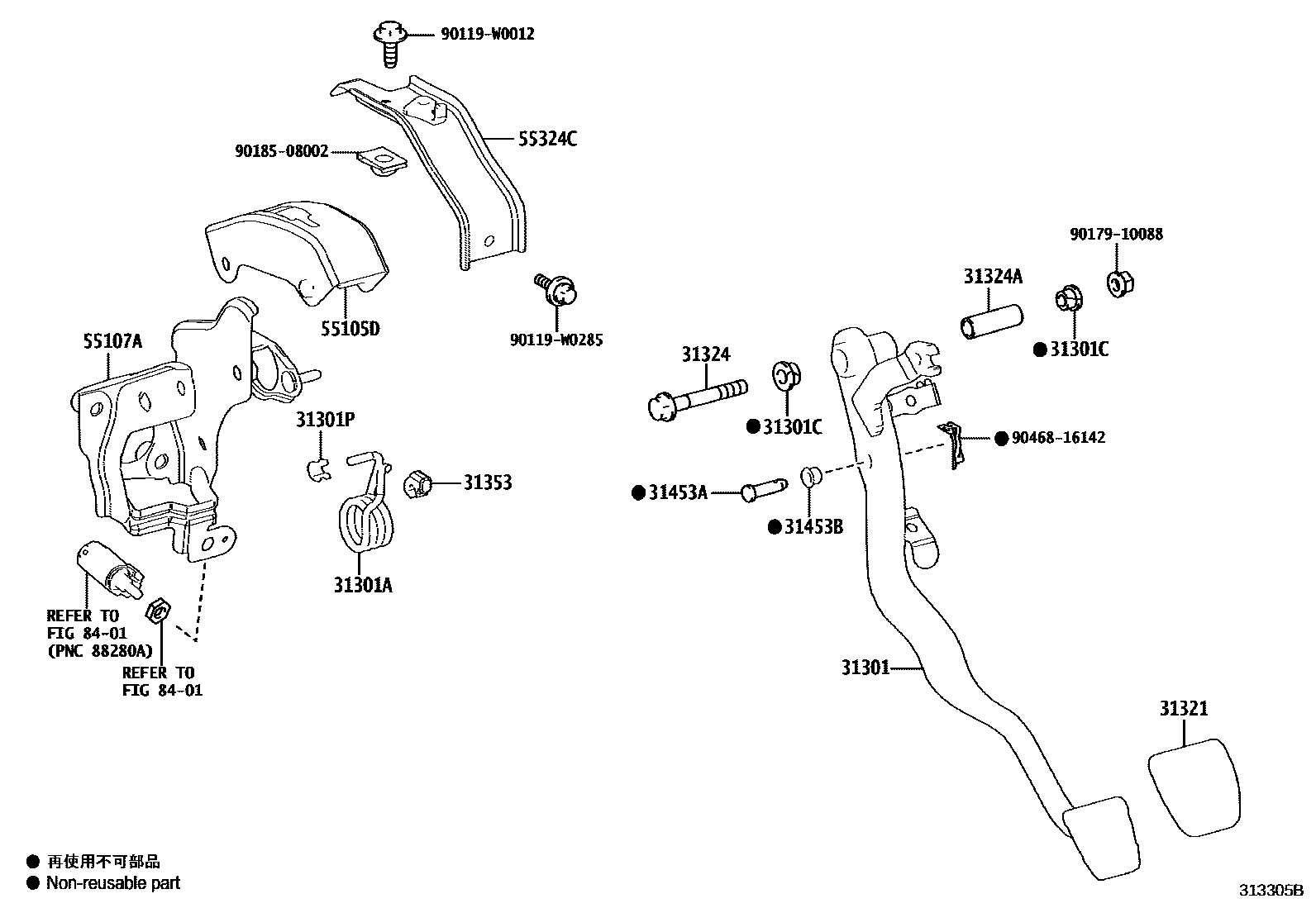

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-02590iNRE210..LHD..6F201901

main31301-02600iNRE210..RHD..6F201901

31301ASPRING(FOR CLUTCH PEDAL)

main31394-02010iNRE210..6F202104

main90949-03068iNRE210..6F201901-202103

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iNRE210..6F201901

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-06055iNRE210..6F201901

31321PAD, CLUTCH PEDAL

main31321-42010iNRE210..6F201901

31324SHAFT, CLUTCH PEDAL

main90105-10524iNRE210..6F201901

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iNRE210..6F201901

31353HOLDER, CLUTCH PEDAL SPRING

main31353-26010iNRE210..6F201901

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-W0001iNRE210..6F201901

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iNRE210..6F201901

55105DBRACKET SUB-ASSY, CLUTCH PEDAL

main55105-02090iNRE210..LHD..6F201901

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-02480iNRE210..LHD..6F201901

main55107-02510iNRE210..RHD..6F201901

55324CBRACKET, INSTRUMENT PANEL, NO.4

main55324-02600iNRE210..LHD..6F201901

8401

90119W0012

main90119-W0012

90119W0285

main90119-W0285

9017910088

main90179-10088

9018508002

main90185-08002

9046816142

main90468-16142

19 parts on this diagram · 4 diagrams in section
